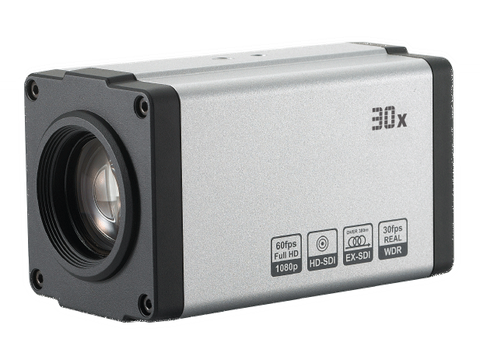

ZM30-HD HD Zoom Camera with 30X Optical Zoom and 32X Digital Zoom

ZM30-HD HD Zoom Camera with 30X Optical Zoom and 32X Digital Zoom

Request Access or Login

This camera is perfect for a wide range of surveillance scenarios thanks to its combined 62X zoom camera, 2MP HD resolution, and an ultra low light rating of 0.025 lux.   To harness the full capabilities on a wide variety of recorders, the output options include HD-SDI, EX-SDI, and HD-TVI.  For analog DVRs, there is an analog video output.  Zoom control is made possible via VISCA, PELCO-D, and PELCO-P.

Features
• 1/3" 2MP Panasonic CMOS sensor
• 1080p 60fps / 30fps, 720p 60fps
• HD-SDI, EX-SDI, TVI, CVBS, HDMI
• x30 Optical Zoom(4.3~129mm) & x32 Digital Zoom
• Real-time True WDR
• Digital Noise Reduction(2D+3D)
• Digital Slow Shutter
• Digital Image Stabilizer
• Privacy Mask Function
• High Light Compensation
• Defog Function
• ACE(Digital WDR)
• Motion Detection
• Protocol(VISCA, Pelco-D, Pelco-P)

CAMERA

Image Sensor

1/3" Panasonic CMOS Sensor

Total  Pixels

1956 (H) x 1266 (V) = 2.48M Pixels

Active  Pixels

1944 (H) x 1092 (V) = 2.12M Pixels

Scanning System

Progressive Scan

Resolution

Digital : 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps

Min.  Illumination

Color(1/30s) : 0.5 lux , BW(1/30s) : 0.1lux

Color DSS(1/7.5s) : 0.125 lux , BW DSS(1/7.5s) : 0.025 lux

S/N Ratio

more than 50dB (AGC off)

Video  Output

HD-SDI, EX-SDI, TVI, CVBS, HDMI



LENS

x30

Lens Type

x30 Day & Night Zoom Lens

Zoom Ratio

Optical x30, Digital x32 Zoom

Focal  Length

f =  4.3 mm ~  129.0 mm

Aperture Ratio

F1.6 (wide) ~ F4.7 (tele)

Angle Of View

(D, H, V)

WIDE

71.3°

58.9°

45.3°

TELE

2.58°

2.11°

1.61°







CAMERA FUNCTIONS

Camera Title

ID / Title / Zoom Ratio / System Message

Day & Night

Auto / Day / Night / Ext-in

WDR/BLC

Off / WDR / BLC / HLC

ACE

Off / Low / Middle / High

DNR

Auto / Off / Low / Middle / High

Defog

Off / On(Auto / Manual)

Digital  Image Stabilizer

Off / On

Motion Detection

Off / On (3 positions)

Privacy Mask

Off / On (24 positions)

Digital  Slow  Shutter

Off /x2 /x4 (/ x8 : 60 or 50fps mode only)

Gain  Control

Off / On

White Balance

Auto / One Push / Manual / Indoor / Outdoor

Shutter Speed

1/30(25) ~ 1/30,000 sec

E.Zoom

Off / x2 ~ x32

Digital  Flip

Off / H / V / H&V



GENERAL

Power Source

DC12V±10%

Power Consumption

Max 500mA

Operating  Temperature

-10°C ~ +50°C  / 0% ~ 90% RH

Dimensions

67(W) x 74(H) x 130.5(D) mm

Weight

0.57Kg
