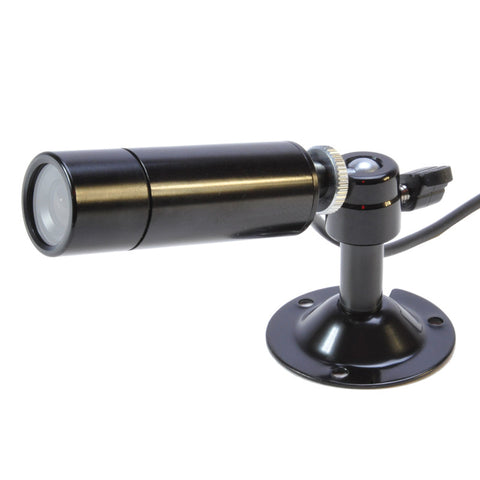

Built around the latest Sony DSP chipset called EFFIO, this camera produces 700 lines of resolution, vibrant color images despite harsh lighting and dim lighting conditions. The 0.75” in diameter weatherproof chassis is designed for discrete short to medium range observation. Included optics produce a wide 90° field of view but is swappable with any M12 type lens.  The lux rating is 0.008 and coupled with the high S/N ratio of greater than 50dB, low light images are sharp & clear. Current draw is a low 80mA allow for extended battery powered operation and uses either 9 or 12VDC for complete power flexibility.

Features
• Brilliant color video with Sony’s EFFIO Digital Signal Processor
• 700 Lines of Resolution

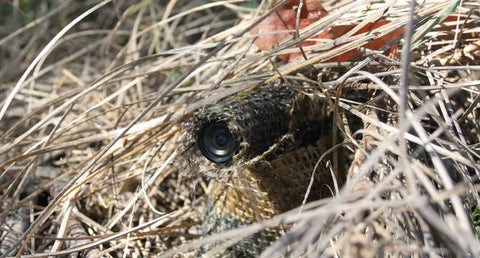

• Easy to conceal in trim panels, drop tile, cardboard, etc…

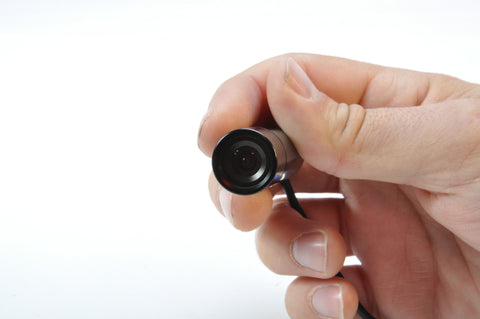

• Slim profile of 0.75” in diameter
• Low lux rating of 0.008 w/50dB S/N Ratio
• Low current draw of just 80mA
• Operates with 9 or 12VDC
• Wide, 90 degree field of view

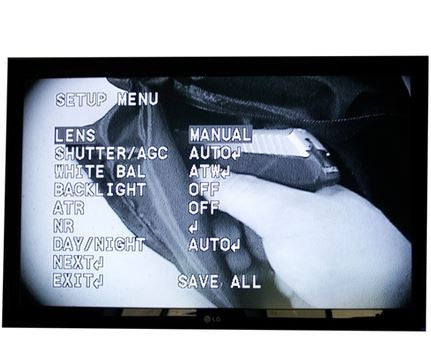

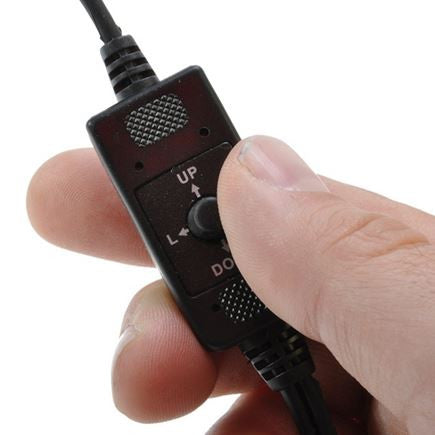

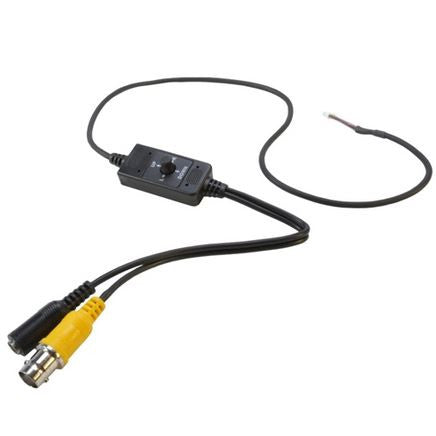

• Inline joystick for advance feature control



For enhanced surveillance with telephoto zoom capability, this camera accepts industry standard M12 lenses.  This camera is fully compatible with the below MAXSUR lenses.  For an example, a 16MM micro lens is capable of reading license plates up to 80' away.

MML-6 6MM Micro Lens
MML-8 8MM Micro Lens
MML-12 12MM Micro Lens
MML-16 16MM Micro Lens
MML-25 25MM Micro Lens (camera no longer WX proof)



Related Article "Getting More From Bullet Cameras"



Specifications  Download Here
Signal Format NTSC (PAL Available)
Pixel Count 1020(H) x 508(V) 520K
Effective Pixels 976(H) x 494(V) 480K
Imager 1/3" 960H Exview HAD CCD II SONY
Lens Type M12
Processing DSP (Digital Signal Processing) EFFIO SONY
Scanning System 2:1 Interlace
Sync System Internal
Scanning Frequency 59.94Hz (VD)
Horizontal Resolution 700TV Lines
S/N Ratio More than 50dB (AGC Off)
Video Output 1.0Vpp composite (75 OHM)
Min. Illumination 0.008 lux
Shutter Speed 1/60 - 1/100,000
Power Consumption 80mA @ 12VDC
Voltage Range 9VDC to 13VDC
Operating Temp.  14° to 122°F (-10° to 50°C)

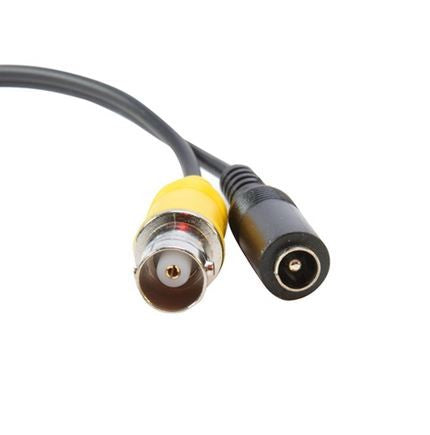

Interface  BNC (Video), DC Coaxial 2.1 x 5.5mm (Power)
Size W x H x D 0.75" x 0.75" x 2.3" (19 x 19 x 60mm)
Weight 2.04 oz. (58 grams)
