SPIKE Ultra Micro DVR with Built-In WiFi
SPIKE Ultra Micro DVR with Built-In WiFi

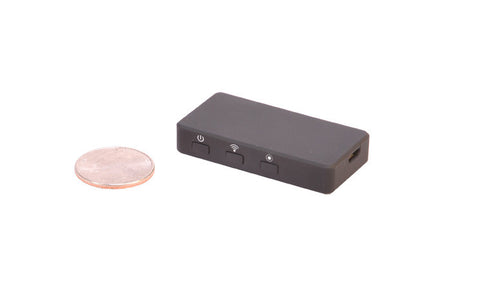

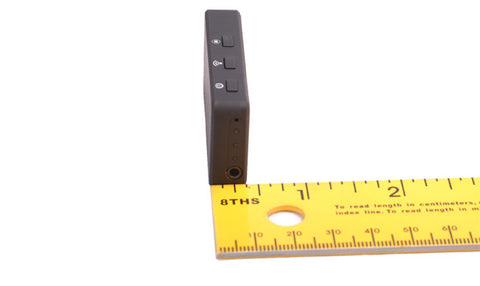

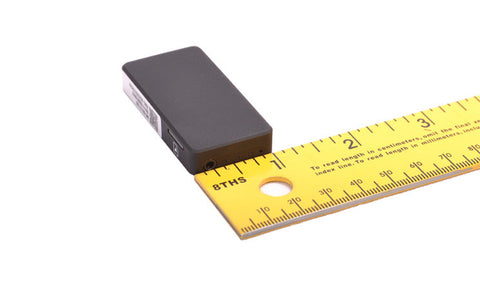

With a thin profile of just 0.4 inches and weighing in at just 13 grams (0.45 ounces), this micro DVR is in a class of its own. Even with the ultra small profile, features abound lending this micro DVR perfect for a host of covert applications. The DVR is so small, it can easily be inserted in utility enclosures, clothing, books, and office fixtures with targets being none-the-wiser.

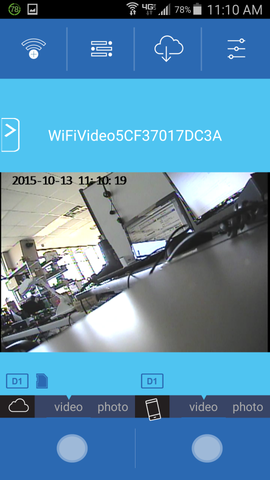

Beyond simply being a small size, the micro DVR is steeped in features required for surveillance operations. At the top of the list is a built-in WiFi transmitter that allows the video to be securely streamed to a smart phone or tablet live. On the smartphone, users can opt to engage the recording remotely and have the evidence stored on the DVR and/or on the smartphone. Additionally, users can trigger still shots and review previously recorded footage on the DVR. In testing the WiFi range here at the MAXSUR office, we experienced 100' of range and line of sight, you can expect up 300'.

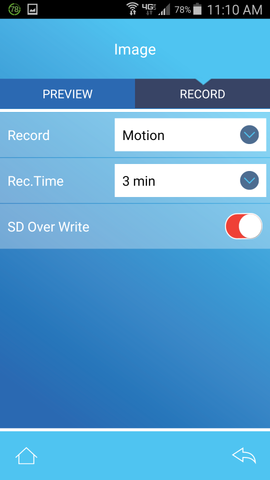

Via the app, all DVR settings can be adjusted which include, internal or external microphone, frame adjustment from 10 to 30 frames per second, standard or video motion detection, overwrite, time-date, WiFi settings, password, firmware update and more.

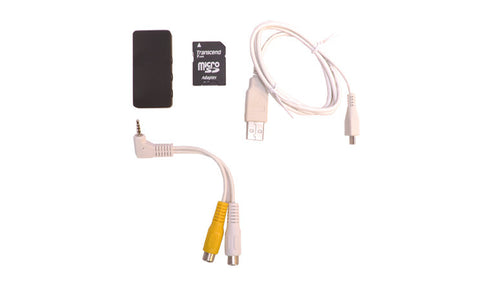

CompatibilityAny camera providing a composite video signal (most surveillance cameras) will work perfectly with this micro DVR. Likewise, any microphone with a line-level output is accepted (example mic). Included with the DVR is an 8GB micro SD card which provides up to 8 hours of constant recording at 30FPS. Larger sd cards up to 64GB can be used.
CDVR23 Spike Specifications
Resolution | Maximum D1 at 30fps |
Video Input | NTSC or PAL with Auto Detection |
Compression | H.264 / Audio:PCM |
Video File Format | AVI |
WiFi Standard | IEEE 802.11 b/g/n 2.4GHz ISM Band |
Video Recording Mode | Standard and Motion Detection |

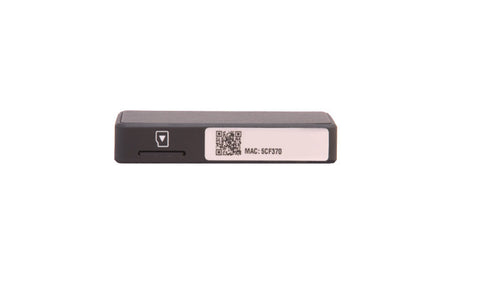

Memory Type | Supports up to 64GB SDHC Micro SD |
Frame Rate | 10/15/20/25/30 Adjustable |
Time Stamp | Yes |

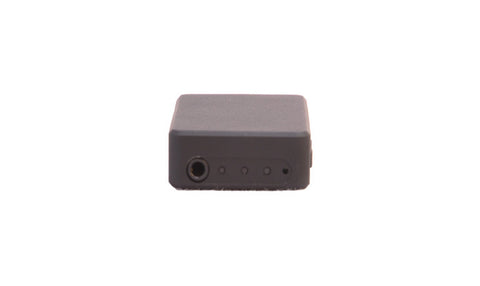

LED Indicator | Power / WiFi / Recording |

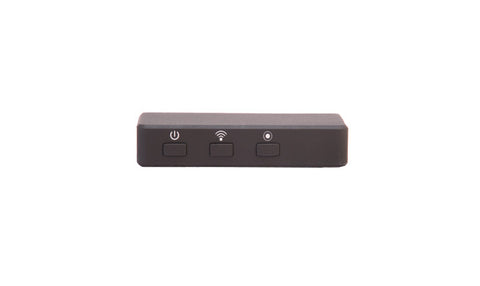

Button Operation | Power / WiFi / Recording |
Power Consumption | 13W (130mA no WiFi - 220mA w/WiFi on) |

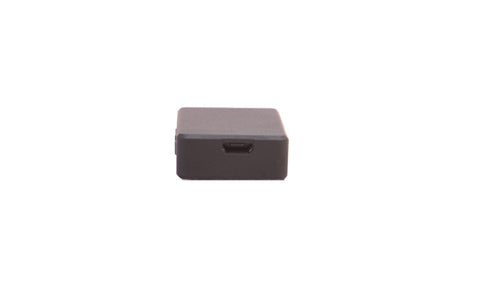

Power Input | 5VDC via Common Micro USB |
APP | iOS or Android |
Weight | 13 grams - 0.45 ounces |
APP Specifications
Brightness | Yes |
Contrast | Yes |
Flip | Yes |
Mirror | Yes |
Mic Sensitivity | Yes |
WiFi On/Off | Always on, or close after 1/3/5 minutes |
APP Lock | Yes via password |
Frame Per Second | 10/15/20/25 Frames |
Motion Detection | On/off |
Card Memory Check | Yes |
Recording Length | 1/3/5 Minutes |
Overwrite | On/off |
Date/Time On/Off | Yes |
Date/Time Setup | Yes |
Date/Time Sync | Yes |
SD Capacity Indication | Yes (percentage) |
APP Version Indication | Yes |
Firmware Version Indication | Yes |
Firmware Upgrade | Yes |
Video Memory Allocation | Phone or DVR memory |
Photo Memory Allocation | Phone or DVR memory |
File Browsing | Yes |
File Download | Yes |
Recording Alert | Yes |
Photo Alert | Yes |
