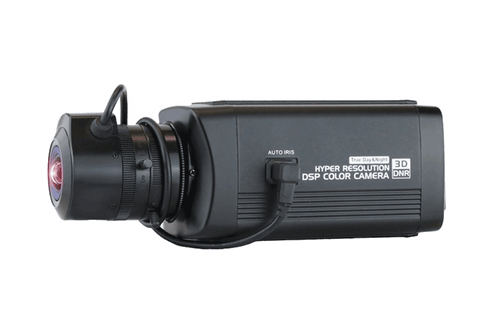

This security camera works with literally thousands of different lenses, everything from a fisheye lens, to a powerful zoom lens for multi-mile viewing.  This is all thanks to accepting both C and CS mount lenses.

In addition to lens flexibility, this security camera has a SONY 2.1MP progressive scan imager delivers razor-sharp footage of even fast-moving traffic.  The output is full HD with 1080p at 30fps.  The digital signal is TVI, can be transmitted using common BNC cable, and it works with any digital recorder that accepts TVI.

 Specifications
Imaging Device 1/2.8” Sony 2.1Mp Progressive Scan CMOS
Video Format Main Output : 1080p30/25, 720p/30/25 HD-TVI (OSD selectable)
Secondary Output : CVBS (OSD selectable NTSC/PAL) service video test point
Actual/Effective Picture Elements 2000 (H) x 1121 (V) / 1984 (H) x 1105 (V)
Maximum Video Output Resolution 1920 (H) x 1080 (V) / 1080p @ 30/25
Sensitivity .1 lux color, .07 lux B/W (F=1.0)
Day/Night Type Digital Day/Night
Lens Type CS Type [C-mount with included adapter] DC iris support
Video Output Connector Type TVI and CVBS : BNC 75Ω
Sync. Mode Internal

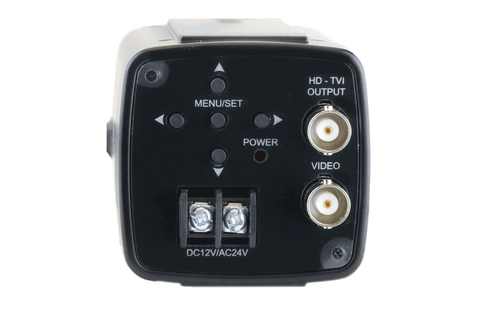

OSD Menu Multiple functions using 5 button controls on rear of housing; UTC Control
OSD Languages English, Spanish, Portuguese, German, Russian, Japanese, French
UTC Control Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling
DWDR / BLC / HLC OFF/WDR/BLC/HLC Selectable Adjustable for Level 1~10; also BLC area, HLC color.
Auto Gain Control OFF; 2~42dB
Electronic Shutter Auto; FLK; or Manual 1/30 (25) to 1/30,000
White Balance Auto / Push Lock / Auto EXT / Manual
Color Correction Gamma 0.45~.65, adjustable
Day & Night True D/N with motorized IR cut filter
Optional color-only and B/W only modes under OSD control
Digital Slow Shutter (DSS)

DSS low light boost Off/Auto 2X~16X*
*DSS levels above 4X should be used only after careful consideration of scene dynamics

3D-DNR Off/Low/Mid/High
Digital Zoom 1X~8X
Defog Off/Low/Mid/High
Mirror Off / H-flip, V-flip, HV flip (rotate)
Motion Detection Off/On for programmable zone with sensitivity adjust (pixel change detection)
Privacy Mask Off/On with full programmability for 8 selectable zones
Lens Shading Compensation Off/Low/Mid/High
DPC (Defective Pixel Correction) Off/On
Other OSD Functions Camera Title with position; Image Sharpness
Power Source 12VDC/24VAC
Power Consumption 12VDC:240mA / 24VAC:3.4W max.
Operating Temperature 14°F~122°F ; -10°C~50°C
Storage Temperature -4°F~140°F ; -20°C~60°C
Humidity Less than 80% non-condensing
Dimensions 2.28” x 2.28” x 4.77” / 58mm x 58mm x 121.4mm (includes BNC at rear)
Weight 0.485 lb / 220g
Certifications CE / FCC
Warranty 3 years
