RF Based Tracking System
Description
Description
This RF based tracking system is perfect for BMV (Burglary of Motor Vehicles), bicycle theft, high value asset protection and more. This system delivers inch level accuracy with a LOS (line of sight) range up to two miles. The transmitter module is a slim 0.49 inches, making perfect for insertion into purses, laptops, clothing and more! With the built-in lithium battery, run time is up to 30 days.
With the accuracy, range and run time that this tracking system offers, it makes a great companion to GPS trackers and bolsters search warrant request.

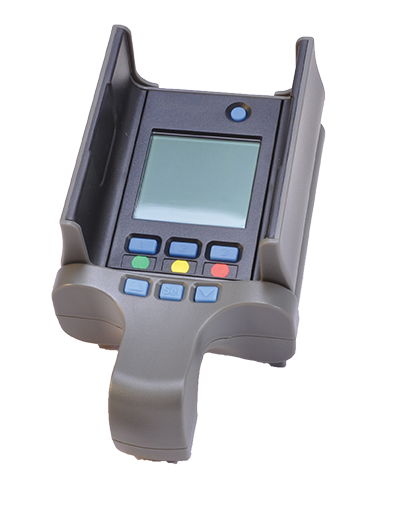

The system comes complete with transmitter module, receiver with display, charger and operation guide. Additional transmitter modules are available for larger bait tracking operations.
System Radio Frequency Operational Specs.
- Method – Frequency Hopping Spread Spectrum (FHSS) 50 Channels
- Band: ISM 902.5 Mhz. – 906.5 Mhz.
- License Requirements: ISM/unlicensed, operates under FCC Part 15 Section 247
- Modulation: FSK
- Single Frequency Dwell Time: 50 msec. once every 4 mins.
- Transmit Power: 250 mW
- Receiver Sensitivity: -125 dBm
- Communications Coding: Data coding and forward error correction allow the system to operate with a BER as low as 1:10, significantly improving overall system range.
System Range†
- Line of sight: up to 2 miles typical
- Open terrain, rolling hills with few obstructions: up to .5 – 1 mile
- Dense suburban areas: 2,000 ft. typical
† Ranges shown are typical under controlled testing. Your results will vary with your actual conditions.
System Capacity
- Up to 3 transceiver tags per Locator
Alarm Capacity
- Internal audible alarm
- External siren alarm (optional)
- External auto dialer (optional – requires telco landline)
Locator Physical Specifications
- Height: 6 in. (152 mm)
- Width: 3.5 in. (90 mm)
- Depth: 1.5 in. (44 mm)
- Weight: 7.8 oz. (221 g)
Locator Battery and Charge Capacity†
- Rechargeable Li•ion battery (included)
- 3 days when in continuous tracking mode
- 8 hours in searching mode
- 3 days in monitor mode
† Battery charge life values shown are typical. Your experience may vary with your actual use, battery age and ambient temperature.
Locator Weatherproofing
- Light rain
Tag Physical Specifications
- Height: 2 in. (64 mm)
- Width: .93 in. (23.62 mm)
- Depth: .5 in. (12.7 mm)
- Weight: .42 oz. (12 g)
Tag Battery and Charge Capacity†
- Rechargeable Li•ion battery, included (non-user serviceable)
- 10 days idle mode
- 3 days tracking mode
- 30 days monitor mode
† Battery charge life values shown are typical. Your experience may vary with your actual use.
Tag Weatherproofing
- None
