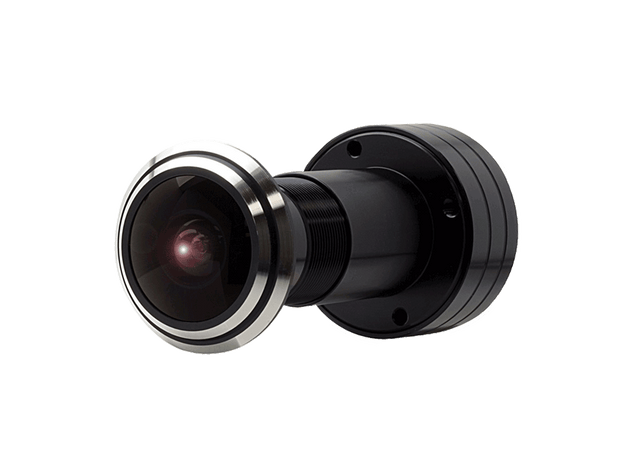

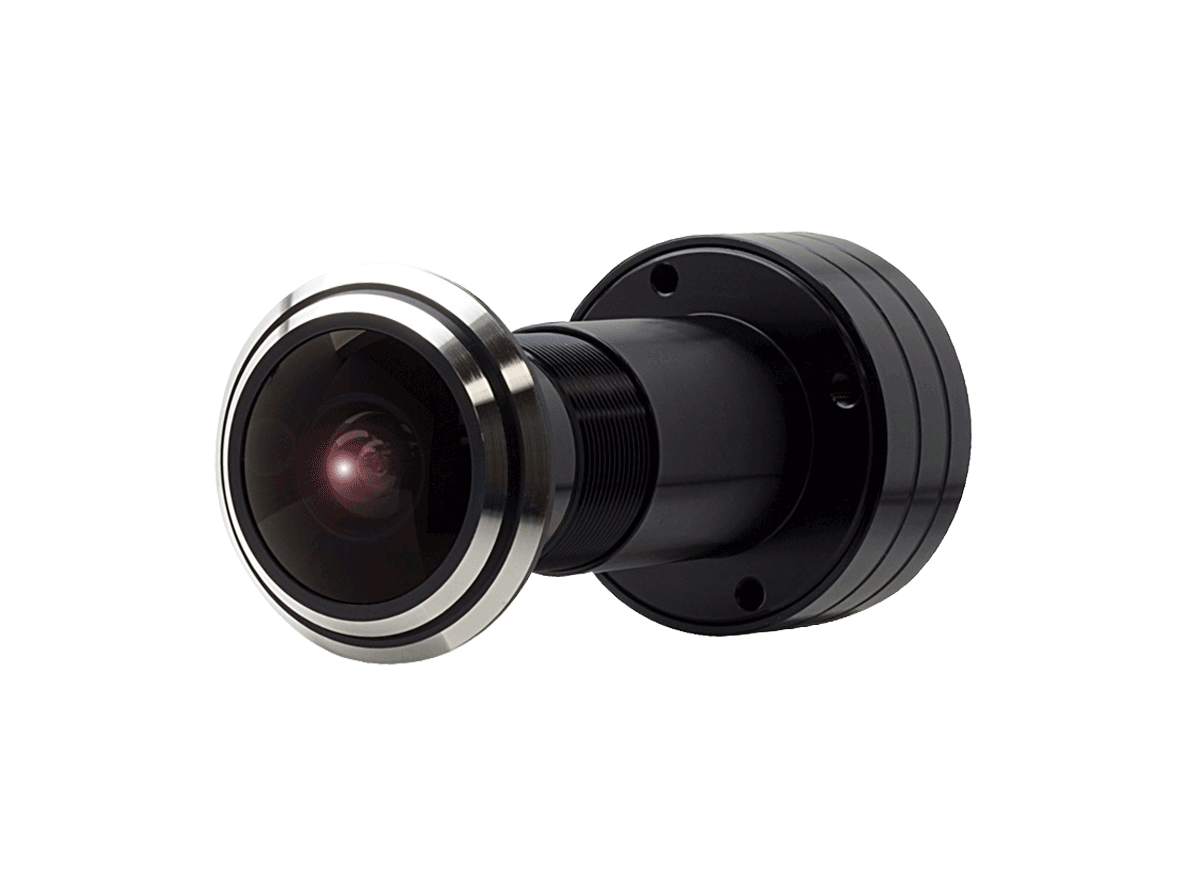

The peephole camera is ideal for high value protection, SCIF security, and monitoring hotel hallways.  Installation is easy and replaces any standard peephole viewer.

Video output is NTSC with 750 lines of resolution, and power requirement is 12 volts.

Specifications
Signal System NTSC
Image Sensor 1/3” 960H SONY EXview HAD CCD II
Scanning System 2:1 Interlace
Horizontal Resolution 750TV Lines
Scanning Frequency (H) 15.734 KHz
Scanning Frequency (V) 59.94 Hz
Total Pixels (H x V) 1020 x 508
Effective Pixels (H x V) 976 x 494
Synchronization Internal
Lens 2.97, 3.6, 4.3, 6.0, 8.0, 12.0 mm
Lens Type Fixed Board Lens
S/N More than 50dB (AGC: Off)
Gamma r = 0.45
Min. Illumination 0.1 Lux
Shutter Speed 1/60 ~ 1/100,000 sec
Day & Night Digital Day & Night
Day & Night Function Auto
IP Rating IP67 (Water Resistant) - E190NUWX Only
Video Output Level 1.0 Vp-p Composite (75 Ω)
DNR 2D DNR
Operating Temperature 14 °F ~ 122 °F (-10 °C ~ 50°C)
Storage Temperature -4 °F ~ 140 °F  (-20 °C ~ 60 °C)
Humidity Less than 80% RH
Power Supply DC 12V (±10%), Max. 70mA
Dimension Ø0.75 x 2.14 inch (Ø19 x 54.4 mm)
Weight 0.15 lbs (68 g)
