Micro Lens 12mm

Micro Lens 12mm

Request Access or Login

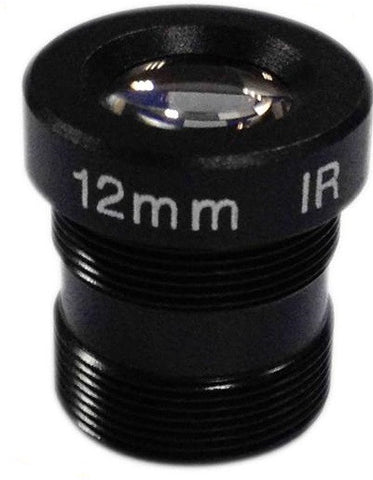

This 12mm micro lens is compatible with a wide variety of board cameras and micro cameras that utilize M12 type threads.   Compatibility with MAXSUR cameras include:

MCML7
MCML7B


Specifications

Sensing Area 1/3 and 1/4 Imager
Focal Length 12.0mm
Back Focal Length 6.4mm
F Stop 1.6 Fixed
Optical Distortion <- 2.5%
Lens Construction 5 Glass 4 Components
Field Angle 29° 1/3 Inch - 19.2° 1/4 Inch
MOD 7.87 Inches
Rating Megapixel
IR Pass Thru Yes
Weight 5.5g - 0.19 ounces
Dimensions (Diameter x Depth) 14 x 15.36 (.55 x 0.60 Inches)
