LiDAR Kit for Smart Dovetail LiDAR
Description
Description
Smart Dovetail LiDAR Integration Accessory
LiDAR Kit for Smart Dovetail LiDAR Payloads on IF800 & IF1200
The Smart Dovetail LiDAR Kit provides the aircraft-side GNSS mount, coaxial cables, and extension adapters required to integrate select Smart Dovetail LiDAR payloads with Inspired Flight IF800 and IF1200 drone platforms. Built for new LiDAR integrations and existing supported systems, this kit helps complete the setup needed for compatible aerial mapping payloads.
Complete the Aircraft-Side Setup
This kit provides key aircraft-side components needed to support compatible Smart Dovetail LiDAR payloads, including the GNSS mount, coaxial cables, and extension adapters.
Supports IF800 and IF1200
The kit includes aircraft-specific GNSS coaxial cables for both IF800 and IF1200 configurations, helping teams support compatible LiDAR workflows across Inspired Flight platforms.
Built for Professional LiDAR Workflows
A practical accessory for survey, GIS, public safety, infrastructure, construction, environmental, and research teams building repeatable Smart Dovetail LiDAR mapping workflows.
Smart Dovetail LiDAR Integration
LiDAR Payloads Need Clean GNSS and Aircraft-Side Integration
Aerial LiDAR workflows depend on more than the sensor itself. The aircraft, GNSS connection, payload interface, cabling, and mounting components all contribute to a cleaner and more repeatable field setup. The Smart Dovetail LiDAR Kit helps complete the aircraft-side connection between select Smart Dovetail LiDAR payloads and the IF800 or IF1200.
This is especially important for teams using LiDAR for public safety reconstruction, GIS mapping, infrastructure documentation, terrain modeling, corridor mapping, research, and professional survey-style data collection.
Kit Details
What the Smart Dovetail LiDAR Kit Provides
GNSS Mount
Provides the aircraft-side GNSS mounting component needed to support compatible Smart Dovetail LiDAR integrations.
IF800 Coaxial Cable
Includes a 300 mm GNSS coaxial cable for IF800 aircraft configurations.
IF1200 Coaxial Cable
Includes a 600 mm GNSS coaxial cable for IF1200 aircraft configurations.
Coaxial Adapters
Includes coaxial adapters to support the aircraft-side GNSS connection required by compatible Smart Dovetail LiDAR payloads.
Compatible Smart Dovetail LiDAR Payloads
Designed for Select Supported LiDAR Systems
This kit is intended for supported Smart Dovetail LiDAR payloads. Confirm payload compatibility before ordering, especially if your sensor configuration differs from the listed models.
Inertial Labs / Teledyne
- EchoOne
- RESEPI Gen II
Phoenix LiDAR Systems
- RECON-XT-A
YellowScan
- Mapper+ with Smart Dovetail
- Surveyor Ultra with Smart Dovetail
- Mapper with Smart Dovetail
Mission Applications
Smart Dovetail LiDAR Support for Professional Drone Programs
Public Safety Mapping
Support LiDAR workflows for crash reconstruction, crime scene mapping, disaster documentation, search-area terrain review, and incident scene preservation.
Survey & GIS
Support aerial point-cloud collection for geospatial professionals, county GIS teams, mapping contractors, land management teams, and public works departments.
Infrastructure & Utilities
Support corridor mapping, powerline documentation, right-of-way assessment, asset modeling, transportation projects, and critical infrastructure review.
Research & Environmental Data
Support LiDAR collection for terrain modeling, habitat analysis, vegetation structure, erosion studies, waterway review, forestry, and environmental monitoring.

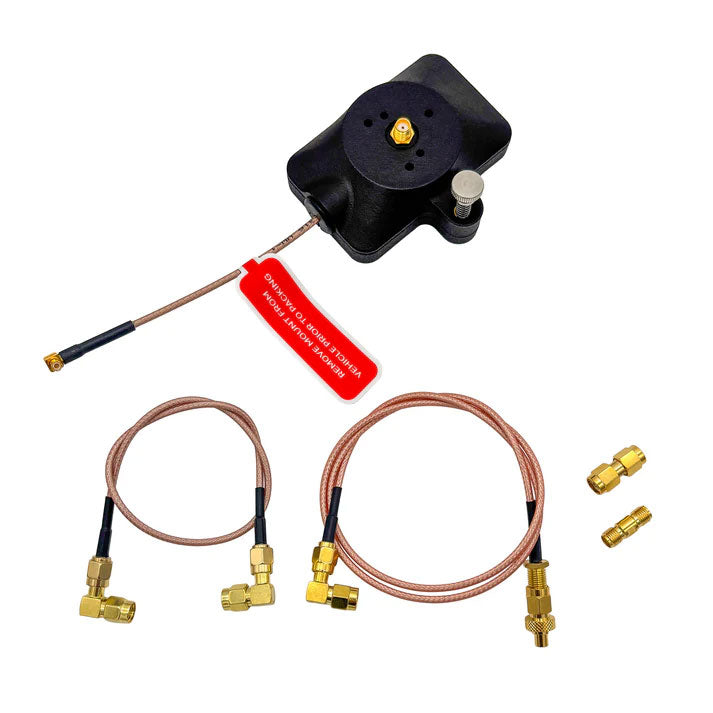

What’s Included
Smart Dovetail LiDAR Kit
- GNSS mount
- 300 mm GNSS coaxial cable for IF800
- 600 mm GNSS coaxial cable for IF1200
- Coaxial adapters
Not Included
Confirm Required Accessories
- GNSS antenna not included
- Zip ties not included
- LiDAR payload not included
- IF800 or IF1200 aircraft not included
- Ground control station, batteries, software, and training sold separately unless included in a configured quote
Configuration Overview
Smart Dovetail LiDAR Kit Summary
| Item | Details |
|---|---|
| Product Type | Aircraft-side GNSS and coaxial cable kit for supported Smart Dovetail LiDAR payloads |
| Aircraft Compatibility | Inspired Flight IF800 and IF1200 |
| IF800 Cable | 300 mm GNSS coaxial cable |
| IF1200 Cable | 600 mm GNSS coaxial cable |
| Included Hardware | GNSS mount, aircraft-specific coaxial cables, and coaxial adapters |
| Not Included | GNSS antenna, zip ties, LiDAR payload, aircraft, controller, batteries, software, and training |
| Typical Applications | Drone LiDAR mapping, public safety reconstruction, GIS, surveying, infrastructure, terrain modeling, environmental monitoring, and research workflows |
Related Products & Collections
Build a Complete Smart Dovetail LiDAR Workflow
A complete LiDAR workflow may include the aircraft, LiDAR payload, Smart Dovetail components, GNSS antenna, accessories, batteries, controller, software, training, and data processing support. MAXSUR can help agencies and professional teams configure the right setup around the mission.
Explore batteries, chargers, payload adapters, RTK/PPK kits, spare parts, and UAS integration accessories. LiDAR Payloads
View drone LiDAR payloads for mapping, public safety, GIS, infrastructure, and point-cloud workflows. Inspired Flight IF800 Tomcat
View the medium-lift UAS platform supported by this Smart Dovetail LiDAR kit. Inspired Flight IF1200
View the heavy-lift UAS platform supported by this Smart Dovetail LiDAR kit.
Ordering Guidance
Confirm Payload Compatibility Before Ordering
This kit is designed for select Smart Dovetail LiDAR payloads. Before ordering, confirm your aircraft platform, LiDAR payload model, GNSS antenna requirements, cabling needs, and whether any additional mounting, damping, software, or training components are required.
MAXSUR can help agencies configure the aircraft, LiDAR payload, Smart Dovetail accessories, GNSS components, batteries, controller, and training needed for a complete drone LiDAR workflow.
Common Questions
Smart Dovetail LiDAR Kit FAQ
What is the Smart Dovetail LiDAR Kit used for?
The Smart Dovetail LiDAR Kit provides the GNSS mount, aircraft-specific coaxial cables, and coaxial adapters needed to support select Smart Dovetail LiDAR payload integrations on IF800 and IF1200 aircraft.
Which aircraft are compatible with this kit?
This kit is designed for Inspired Flight IF800 and IF1200 aircraft configurations.
Which LiDAR payloads are supported?
Supported payloads include Inertial Labs / Teledyne EchoOne, RESEPI Gen II, Phoenix LiDAR Systems RECON-XT-A, and YellowScan Mapper+, Surveyor Ultra, and Mapper configurations with Smart Dovetail.
Does this kit include a GNSS antenna?
No. The GNSS antenna is not included. This kit includes the GNSS mount, IF800 and IF1200 coaxial cables, and coaxial adapters.
Does this kit include the LiDAR payload or drone aircraft?
No. The LiDAR payload, IF800 or IF1200 aircraft, ground control station, batteries, software, and training are sold separately unless included in a configured MAXSUR quote.
Can MAXSUR help configure a complete Smart Dovetail LiDAR setup?
Yes. MAXSUR can help configure the aircraft, Smart Dovetail LiDAR payload, aircraft-side kit, GNSS antenna, accessories, batteries, controller, training, and workflow support needed for professional drone LiDAR operations.
