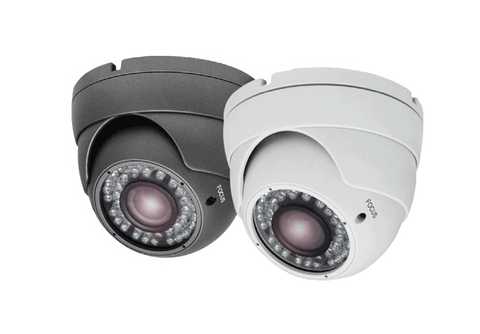

IR Varifocal Turret Dome Camera
IR Varifocal Turret Dome Camera
Measuring just 3.67 inches in diameter, this security camera can fit in almost anywhere, and be mounted almost anywhere with the mutli-axis turret design...ceiling or walls is a-ok!
To further maximize mounting flexibility and deliver the security footage you need, the field-of-view can be fully customized thanks to a built-in 2.8 to 12mm vari-focal lens. If no lighting is present, no problem, the onboard 850nm IR leds will deliver up to 66 feet of illumination.
Video output is full HD, 1080p at 30fps, and is compatiable with TVI digital video recorders. For legacy recorders, this security camera also offers a composite video signal.
| Imaging Device | 1/2.8" Progressive Scan CMOS |
| Video Format | Main Output: 1080p/720p HD-TVI 30/25FPS (OSD selectable) Secondary Output: Full time CVBS (OSD selectable NTSC/PAL) aux video |
| Picture Elements | 1984 (H) x 1105 (V) |
| Effective Picture Elements | 1920 (H) x 1080 (V) |
| Horizontal Resolution | More than 1080 HTVL (1080p mode) |
| Sensitivity | 0 lux IR on |
| Day/Night Type | True Day/Night with ICR motorized filter control |
| Lens Type | Megapixel 2.8-12mm |
| IR LED | 20 LED, 850nm |
| IR Range | 66’ / 20m † |
| Smart IR Exposure Adjust | Adjustable Off/low/mid/high |
| Video Output Connector Type | TVI and CVBS: BNC 75Ω |
| Sync. Mode | Internal |
| OSD Menu | Multiple functions using UTC Control |
| OSD Languages | English, Spanish, Portuguese, German, Russian, Japanese, French |
| UTC Control | Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling |
| DWDR/BLC/HSBLC | OFF/WDR/BLC/HSBLC Selectable Adjustable for Level 1~10; also BLC area, HLC color. |
| Auto Gain Control | OFF; 2~42dB |
| Electronic Shutter | Auto; FLK; or Manual 1/30 (25) to 1/30,000 |
| White Balance | Auto / Push Lock / Manual |
| Color Correction | Gamma 0.45~.65, adjustable |
| Day & Night | Auto True D/N with motorized ICR, controlled by photo sensor. Optional color-only and B/W only modes under OSD control |
| Digital Slow Sutter [DSS] | DSS low light boost Off/Auto 2X~16X* |
| 3D-DNR | Off/Low/Mid/High |
| Digital Zoom | 1X~8X |
| Defog | Off/Low/Mid/High |
| Mirror | Off / H-flip, V-flip, rotate |
| Motion Detection | Off/On for programmable zone with sensitivity adjust (pixel change detection) |
| Privacy Mask | Off/On with full programmability for 8 selectable zones |
| Lens Shading Compensation) | Off/Low/Mid/High |
| DPC (Defective Pixel Correction) | Off/On |
| Other OSD Functions | Camera Title with position, Font Color; Image Sharpness |
| Power Source | 12VDC |
| Power Consumption | 12VDC:390mA |
| Operating Temperature | 14 °F ~ 122 °F (-10 °C ~ 50 °C) |
| Environmental | IP66 weather resistant |
| Mechanical | Metal ball and base, with base removable for easy mounting |
| Positioning | 3-axis flexible positioning for wall or ceiling mounting Pan: 0~360° Tilt: 0~70° Rotate: 0~360° |
| Dimensions | Ø5.14” × 3.67” [Ø93 × 63mm] |
| Weight | .73 lbs./332g |
| Certifications | CE / FCC / RoHS |
