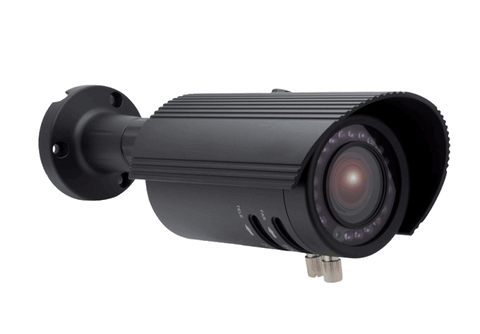

This security camera has a sleek, discrete profile of just over 3 inches in diameter, and packs-a-punch when it comes to surveillance.  The onboard infrared LEDs provides illumination up to 100 feet in complete darkness.  The built-in SONY 2.1MP progressive scan imager provides beautiful footage day-night and is great to gathering minute details of fast-moving objects.

The integrated 2 to 12mm varifocal lens can be fully adjusted with no tools, and there is no need to open the housing.  The cleverly designed housing protects cabling from being cut, and it can be either ceiling or wall mounted.

The output is TVI which means common BNC cable can be used, and it's fully compatible with any recorder that accepts TVI.

Specifications
Imaging Device 1/3" Sony 2.1Mp Progressive Scan CMOS
Video Format Main Output: 1080p30/25, 720p60/50 HD-TVI (OSD selectable) Secondary Output: CVBS (OSD selectable NTSC/PAL) service video test point
Effective Picture Elements 1984 (H) x 1105 (V)
Output Resolution 1920 (H) x 1080 (V)
Horizontal Resolution More than 1080 HTVL (in 1080p mode)
Sensitivity 0 lux IR on; .5 lux @ F1.6 (AGC On)
Day/Night Type True Day/Night with ICR motorized filter control
Lens Type 2 Megapixel Varifocal Type 2.8~12mm F=1.6 IR corrected
Lens Adjustment Lens zoom and focus adjustable from outside the housing
IR LED 20 Smart IR LEDs, 850nm
IR Range* 100’ / 30m
Smart IR Exposure Adjust Active when IR enabled: Off/Low/Mid/High
Video Output Connector Type TVI and CVBS: BNC 75Ω Test Video: CVBS video test point inside access cover, cable to BNC supplied
Sync. Mode Internal
OSD Menu Multiple functions using 3-axis joystick inside housing; UTC Control
OSD Languages English, Spanish, Portuguese, German, Russian, Japanese, French
UTC Control Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling
WDR / BLC / HSBLC OFF/WDR/BLC/HSBLC Selectable Adjustable for Level 1~10; also BLC area, HLC color.
Auto Gain Control OFF; 2~42dB
Electronic Shutter Auto; FLK; or Manual 1/30 (25) to 1/30,000
White Balance Auto / Push Lock / Manual
Color Correction Gamma 0.45~.65, adjustable
Day & Night Auto True D/N with motorized ICR, controlled by photo sensor. Optional color-only and B/W only modes under OSD control
Sens-Up DSS low light boost Off/Auto 2X~16X*
3D-DNR Off/Low/Mid/High/Auto
Digital Zoom 1X~8X
Defog Off/Low/Mid/High
Mirror Off / H-flip, V-flip, rotate
Motion Detection Off/On for programmable zone with sensitivity adjust (pixel change detection)
Privacy Mask Off/On with full programmability for 8 selectable zones
Lens Shading Compensation) Off/Low/Mid/High
DPC (Defective Pixel Correction) Off/On
Other OSD Functions Camera Title with position, Font Color; Image Sharpness
Power Source 12VDC/24VAC
Power Consumption 12VDC: 400mA, 24VAC: 4.8W (IR LED On)
Operating Temperature 14 °F ~ 122 °F (-10 °C ~ 50 °C)
Environmental IP66 weather resistant
Mechanical Metal housing with sun shield; rear weather sealed rear access port for OSD menu and video test point; mount conceals and protects cables; external lens adjustment
Positioning 3-axis flexible positioning for wall or ceiling mounting
Dimensions Ø2.56” × 4.72” [Ø65 × 120mm] Body alone (across sunshield): 3.23” diameter/5.71” long ; 8.82” in line, longest extension; in 90° position, ~8.25” long and ~5.4” high
Weight 1.98 lbs./.9 Kg
Certifications CE / FCC / RoHS
