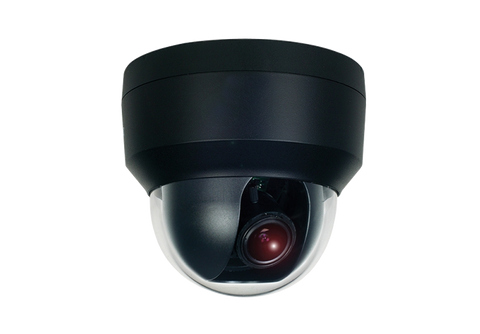

Indoor HD Dome Camera w/2.8 to 12mm Lens and TVI Output

Indoor HD Dome Camera w/2.8 to 12mm Lens and TVI Output

Request Access or Login

This HD dome camera provides incredible low-light performance thanks to an advanced 3D DNR (digital noise reduction) feature.  Even at night, the footage is crisp and discernable.   With full day/night capability, the onboard imager makes use of naturally occurring infrared light, and/or infrared light that you've introduced.

This security camera can be mounted indoors in almost any position.  The 3-axis internal bracket affords wall or ceiling positioning, and it can be mounted flush or on electrical gang boxes.

For a beige version of this camera, please click here

Imaging Device 1/3" Sony 2.1Mp Progressive Scan CMOS
Video Format Main Output: 1080p30/25, 720p60/50 HD-TVI (OSD selectable)
Secondary Output: CVBS (OSD selectable NTSC/PAL) service video test point
Picture Elements 1984 (H) x 1105 (V)
Effective Picture Elements 1920 (H) x 1080 (V)
Horizontal Resolution More than 1080 HTVL (in 1080p mode)
Sensitivity .5 lux @ F1.6 (AGC On)
Day/Night Type Digital Day/Night
Lens Type 2 Megapixel Varifocal Type 2.8~12mm F=1.6
Video Output Connector Type TVI and CVBS: BNC 75Ω
Test Video: CVBS video test point inside access cover, cable to BNC supplied
Sync. Mode Internal
OSD Menu Multiple functions using 3-axis joystick inside housing; UTC Control
OSD Languages English, Spanish, Portuguese, German, Russian, Japanese, French
UTC Control Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling
DWDR / BLC / HSBLC OFF/WDR/BLC/HSBLC Selectable
Adjustable for Level 1~10; also BLC area, HLC color.
Auto Gain Control OFF; 2~42dB
Electronic Shutter Auto; FLK; or Manual 1/30 (25) to 1/30,000
White Balance Auto / Push Lock / Manual
Color Correction Gamma 0.45~.65, adjustable
Day & Night Digital D/N; Optional color-only and B/W only modes under OSD control
Sens-Up DSS low light boost Off/Auto 2X~16X*
*DSS levels above 4X should be used only after careful consideration of scene dynamics
3D-DNR Off/Low/Mid/High
Digital Zoom 1X~8X
Defog Off/Low/Mid/High
Mirror Off / H-flip, V-flip, rotate
Motion Detection Off/On for programmable zone with sensitivity adjust (pixel change detection)
Privacy Mask Off/On with full programmability for 8 selectable zones
Lens Shading Compensation) Off/Low/Mid/High
DPC (Defective Pixel Correction) Off/On
Other OSD Functions Camera Title with position, Font Color; Image Sharpness
Power Source 12VDC/24VAC
Power Consumption 12VDC: 230mA, 24VAC: 2.5W
Operating Temperature -14 °F ~ 122 °F (-10 °C ~ 50 °C)
Environmental Indoor, up to 80% RH
Mechanical Three axis positioning; plastic housing with snap on cover; clear bubble for maximum light transmission, with integral liner to inhibit observation of camera direction; choice of black body (B suffix) and white body (W suffix)
Positioning Included easy-mount twist-on plate (attach to surface; housing base locks to plate); or, mount camera directly to surface if desired. Optional rough-in box adapter with integral twist-on fits 1 or 2 gang boxes or 4” octagonal boxes
Dimensions 4.21” (107mm) diameter, 3.82” (97.1mm) high
With box adapter 5.91” (150mm) diameter x 4.18” (106.1mm) high
Weight 8 oz./ 0.5 lb. / 230 g
Certifications CE / FCC / RoHS
