IF1200 Dovetail Kit - 3.0 Version
Description
Description

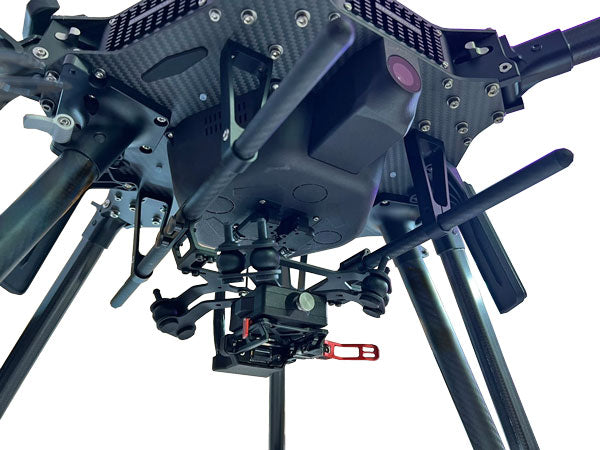

IF1200 Dovetail Kit with Lightweight Pro Damping Kit
The IF1200 Dovetail Kit with Lightweight Pro Damping Kit provides the mechanical interface and vibration isolation needed to integrate compatible professional payloads with the Inspired Flight IF1200. For public safety, utility, mapping, infrastructure, and defense teams, this kit helps turn the IF1200 from a heavy-lift aircraft into a modular mission platform.
Built for Modular Payload Operations
Professional UAS programs rarely fly one aircraft, one payload, and one mission type forever. Agencies may need EO/IR for overwatch, LiDAR for scene documentation, RGB mapping cameras for orthomosaic capture, or specialized sensors for infrastructure inspection. The IF1200 Dovetail Kit helps support that modular workflow by providing a secure dovetail-style payload interface with integrated damping hardware.
Secure Payload Interface
The dovetail interface is designed to provide a repeatable, secure mounting point for compatible Inspired Flight payloads and integrated sensor packages.
Vibration Management
The included Lightweight Pro Damping Kit helps reduce aircraft vibration transferred into sensitive cameras, LiDAR sensors, and mapping payloads.
Mission Flexibility
Ideal for teams that alternate between mapping, inspection, tactical overwatch, emergency response, and other payload-driven UAS missions.
Why This Matters for Public Safety and Enterprise UAS Teams
A heavy-lift drone is only as useful as the payloads it can carry, stabilize, and deploy. The IF1200 Dovetail Kit is especially valuable for organizations building a multi-mission UAS program where aircraft uptime, payload interchangeability, and data quality all matter.
For Law Enforcement & Public Safety
Use the IF1200 as a flexible platform for mission-specific payloads, including overwatch sensors, mapping cameras, and scene documentation systems. This can be especially valuable for crash reconstruction, tactical support, search operations, disaster response, and major incident management.
For Utilities & Critical Infrastructure
Support inspection and mapping workflows where sensor stability and repeatable mounting are important. The damping kit helps protect data quality when carrying cameras, LiDAR, or other inspection payloads for electric utility, telecom, transportation, and industrial missions.
Key Features
Dovetail Rail Interface
Provides a modular mounting interface for compatible payloads that use the Inspired Flight dovetail connector.
Lightweight Pro Damping Kit
Helps isolate payloads from vibration, supporting smoother sensor performance and more consistent data capture.
Quick-Release Design
Supports efficient payload installation and removal once the system is properly installed and configured.
Field-Ready Hardware
Includes the primary dovetail and damping components needed for installation on compatible IF1200 aircraft.
Payload Ecosystem Support
Useful for LiDAR, mapping cameras, EO/IR sensors, inspection payloads, and other professional UAS integrations.
MAXSUR Integration Support
MAXSUR can assist with aircraft, payload, cabling, mission planning, training, and program-level configuration.
Specifications & Compatibility
| Product | IF1200 Dovetail Kit with Lightweight Pro Damping Kit |
|---|---|
| Primary Application | Payload mounting, vibration isolation, and modular payload integration |
| Platform Compatibility | Inspired Flight IF1200 aircraft equipped with UPI 3.0. Contact MAXSUR for IF800 and payload-specific compatibility planning. |
| Mounting System | Dovetail-style rail interface for compatible Inspired Flight payloads and integrated sensor packages |
| Vibration Isolation | Included Lightweight Pro Damping Kit helps reduce vibration transfer to compatible payloads |
| Supported Payload Types | LiDAR units, mapping cameras, inspection sensors, EO/IR payloads, and other compatible professional UAS payloads |
| Approximate Payload Capacity with Damping Plate | Up to approximately 1.5 kg when using the damping plate, subject to payload configuration, center of gravity, aircraft setup, and manufacturer guidance |
| Installation Method | Screw-mounted assembly using included hardware; installation should follow Inspired Flight documentation and manufacturer guidelines |
| Estimated Installation Time | Approximately 10 minutes for a qualified technician familiar with the aircraft and payload hardware |
What Comes in the Kit?
The kit includes the primary dovetail and damping hardware required for installation on a compatible IF1200 configuration.

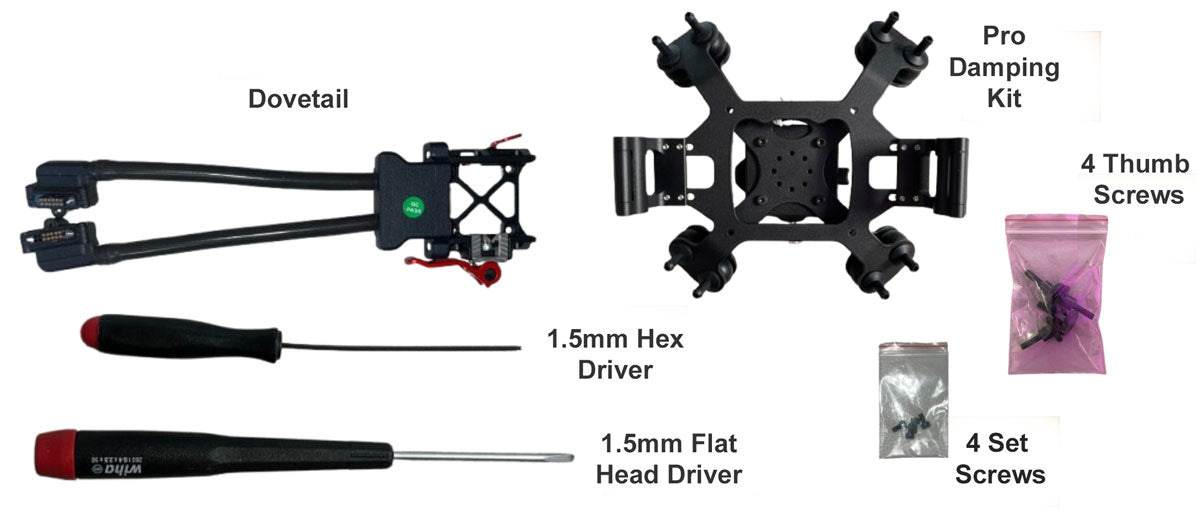

- IF1200 Dovetail assembly
- Lightweight Pro Damping Kit
- 1.5 mm hex driver
- 1.5 mm flat head driver
- Four set screws
- Four thumb screws
Installation Overview
This product page is not a substitute for the official Inspired Flight installation documentation, but the general workflow is straightforward for qualified technicians. Always follow the latest manufacturer documentation and use proper threadlocker where specified.
Inspect the Kit
Remove the kit from packaging and confirm that all required parts and tools are present before beginning installation.
Prepare the Quick Release
Open the quick release and separate the lower quick-release component from the damping plate as instructed.
Attach to the Dovetail Cage
Secure the lower quick-release component to the dovetail cage using the specified M3 hardware and appropriate threadlocker.
Secure Both Dovetail Arms
Install the flathead screws first while supporting the dovetail, then secure the retained screws with the included hex driver.
Mount the Damping Plate
Position the damping plate onto the IF1200 payload rails, then rotate and slide it into the proper position.
Center, Tighten, and Verify
Center the damping plate with the aircraft, tighten the thumb screws, secure bottom screws, and verify the dovetail cage clicks fully into place.
Common Use Cases
LiDAR Mapping
Provides a secure, vibration-managed mounting point for compatible LiDAR payloads used in terrain mapping, accident reconstruction, infrastructure documentation, and forensic scene capture.
Photogrammetry
Helps support stable camera mounting for high-resolution RGB mapping, orthomosaic creation, inspection documentation, and 3D modeling missions.
Inspection Payloads
Useful for electric utility, telecom, transportation, and industrial teams using the IF1200 to carry specialized sensors for infrastructure inspection.
Frequently Asked Questions
Do I need this kit in order to fly the IF1200?
What comes with the IF1200 Dovetail Kit?
Do I need anything else?
How long does the installation take?
What payloads can this kit support?
Can MAXSUR help configure the aircraft and payload?
