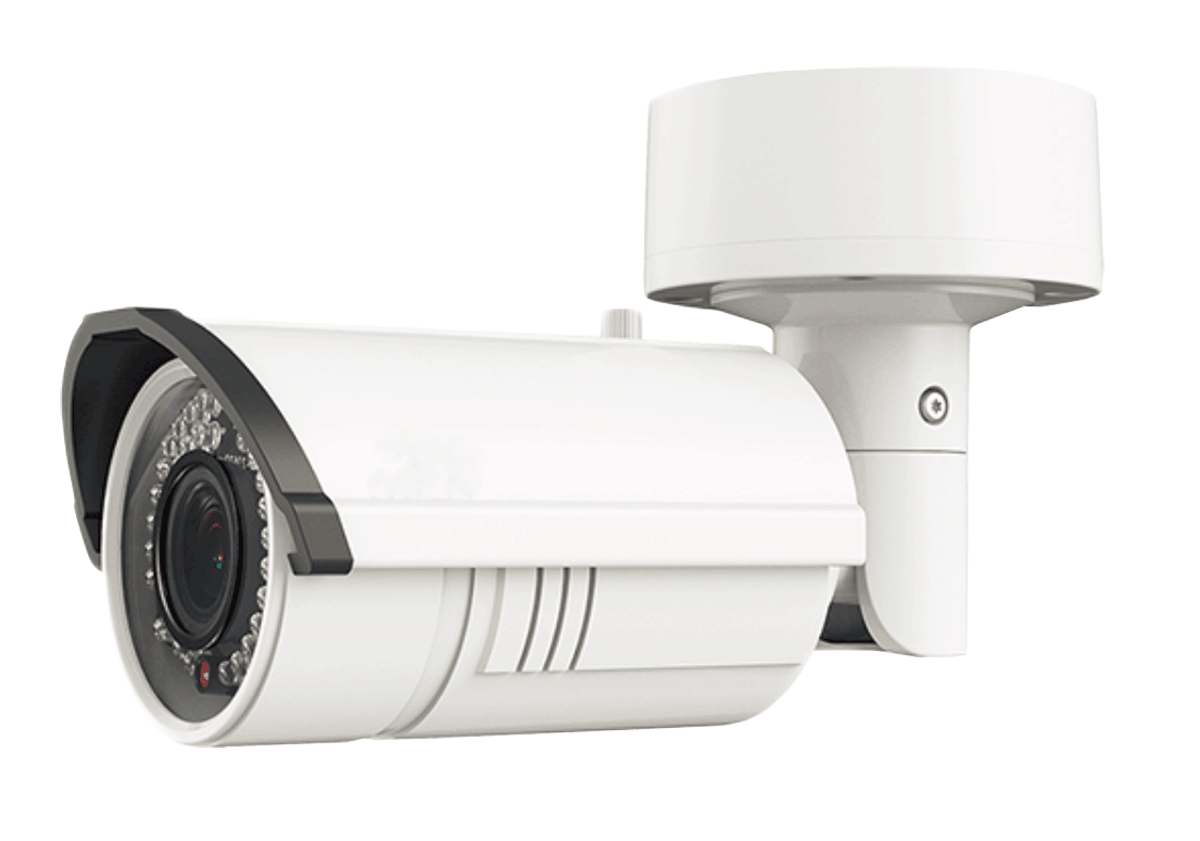

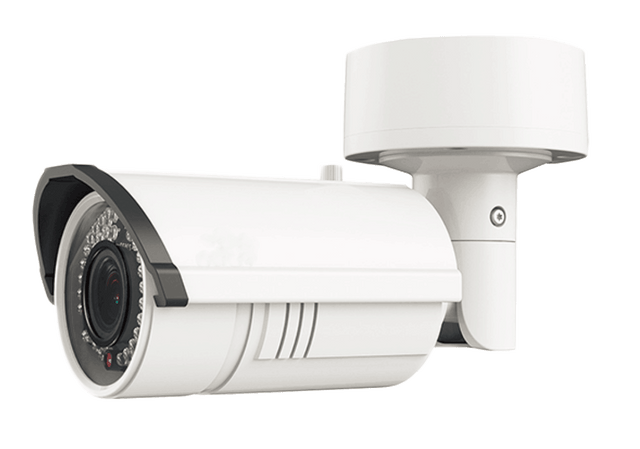

Digital License Plate Camera with Motorized Zoom Lens

Digital License Plate Camera with Motorized Zoom Lens

Request Access or Login

Getting a crystal clear picture of a license plate has never been easier than with this digital LPR camera.  For starters, this camera uses advanced progressive scanning that delivers razor-sharp footage even for fast-moving traffic.  During low light hours, the scene is illuminated with White Flux LEDs which is backed by 3D DNR (Digital Noise Reduction), and a 120dB wide dynamic range that allows for canceling of headlights.

Recording can be accomplished onboard via a micro SD card slot that accepts up to 128GB.  Also, you can easily integrate this camera to your favorite NVR (network video recorder) or VMS (video management system) as its both ONVIF S and ONVIF G compliant.

To give you the ultimate in installation flexibility and ease, this camera has an integrated motorized zoom that is remotely controllable.  Power can be either 12VDC, or PoE (power over ethernet).

Contact Us for Live Demo via Cloud Hosting

Features
• Powerful White Flux Illumination
• Digital enhancement cancels headlights and magnifies LPs
• Motorized zoom lens with remote control, and precision focus
• Progressive scan for sharp images and footage of fast-moving objects
• 3D DNR Digital Noise Reduction for clear low light images, enhanced motion detection, and memory conservation
• Onboard Recording with mSD Slot, Accepts Up to 128GB
• Rugged Weatherproof Construction, IP66
• Accepts 12 volts, or PoE (Power Over Ethernet)
• I/O Port for easy integration with alarm systems



Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Slow Shutter Support
Lens 2.8 - 12 mm @ F1.4,Motorized Lens
Lens Mount Φ14
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB
Compression Standard
Video Compression H.264 / MJPEG/H.264 Zip+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 8 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2
Audio Bit rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution 1920 × 1080
Frame Rate 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
50Hz: 25fps(1920 × 1080, 1280 × 960, 1280 × 720)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS , RTP, RTS P, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Reset Yes
General
Working Temperature/Humidity - 22 ° F ~ 14 0°F (- 30 °C ~ 60 °C)
Humidity 95% or les s (non- condens ing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5.5W (Max. 7.5 W with IR cut filter on)
Weatherproof Ratings IP66
Dimensions 3.7” × 4.1” × 10.2”(95×105×258.6 mm)
Weight 2.65lbs (1200 g)
