CDVR26 Board Level Micro DVR

CDVR26 Board Level Micro DVR

Request Access or Login

This powerful DVR provides full size recorder features in micro package.  Along with audio/video inputs, you'll also get alarm inputs making this an excellent DVR for field surveillance, and integration with high tech senors such as seismic, and magnetic loops.  Recording options include scheduled, alarm and video motion detection which all will help to manage storage and minimize how much video you have to sift through.

Any NTSC camera is fully compatible with this DVR, and recording resolutions are up to 704 x 480, at 30 fps and 1800Kbps.  Up to 32GB SDHC cards are accepted.

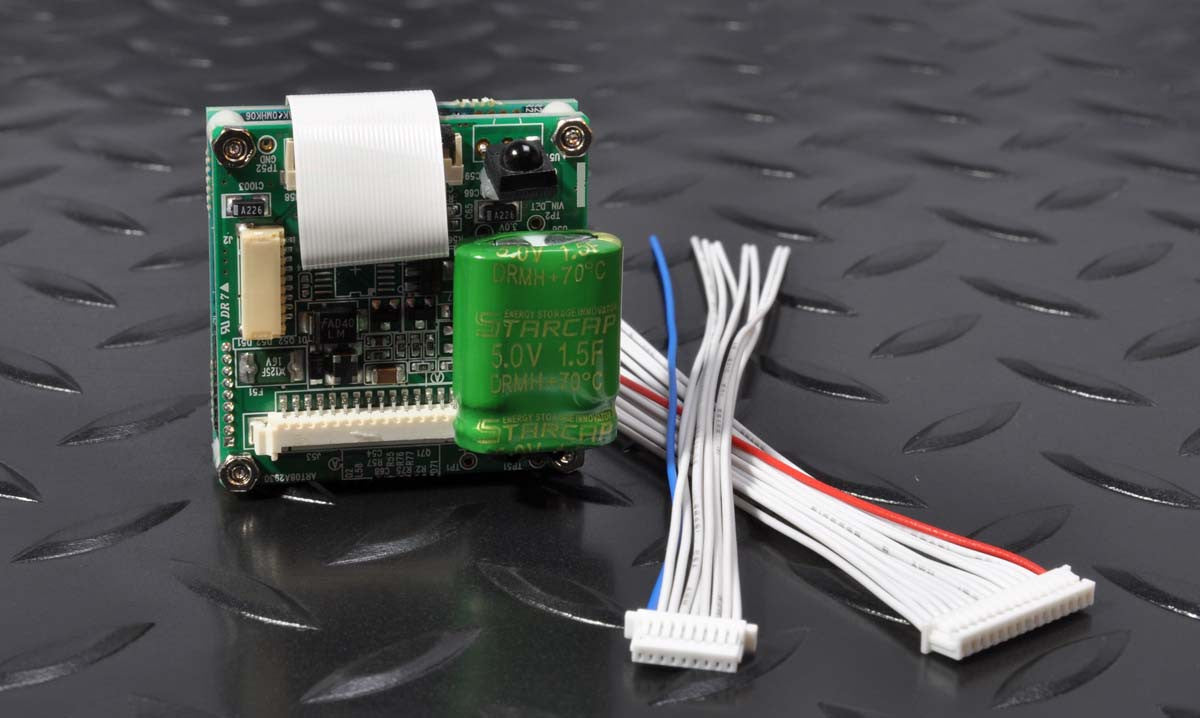

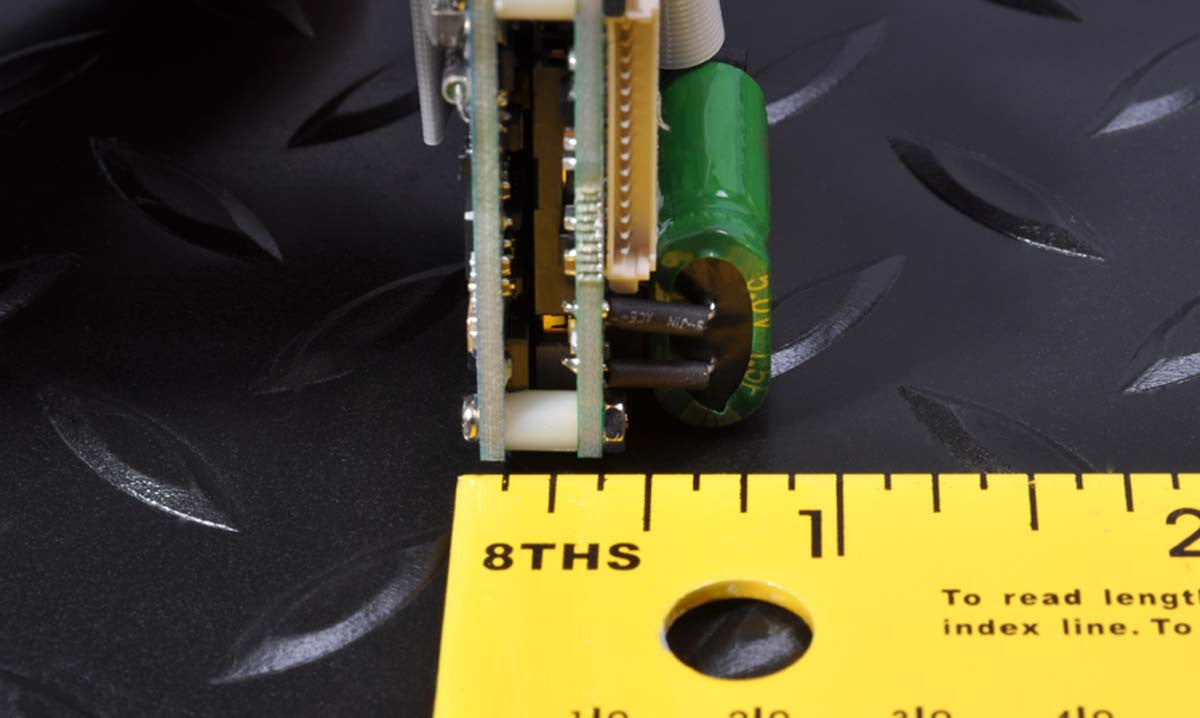

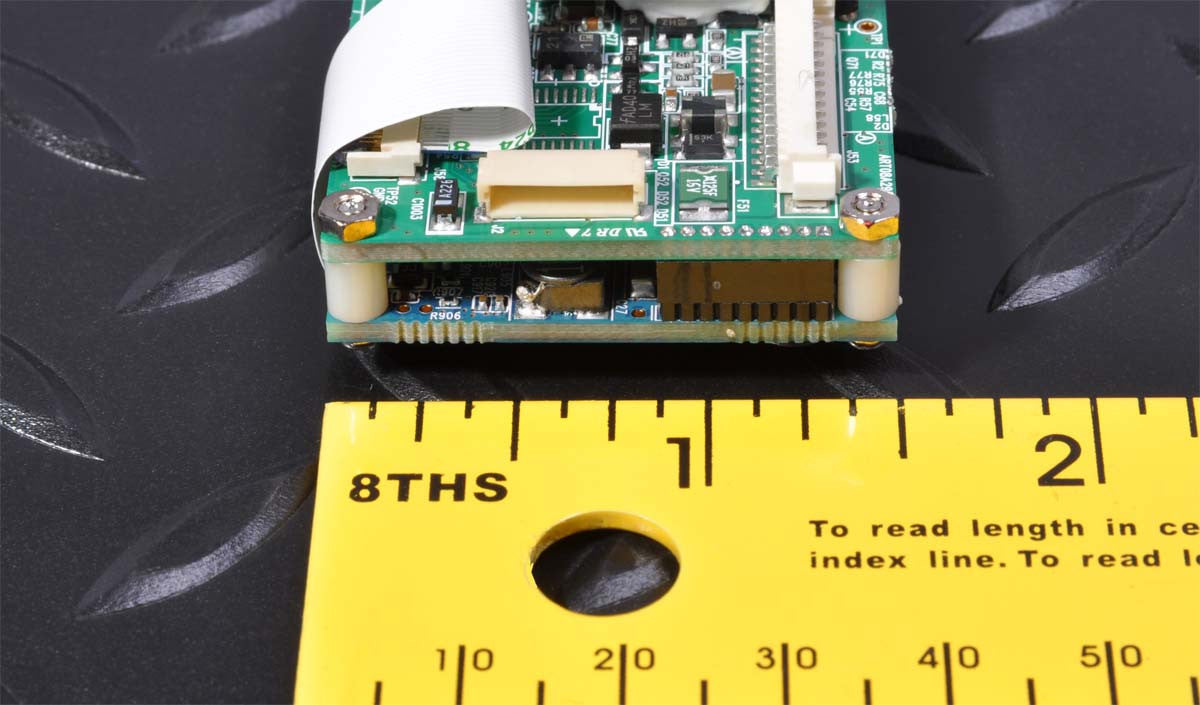

Please note:  This micro DVR comes as pictured, board level and pig tailed.  With this in mind, we highly recommend it for teams with technical surveillance training.  For teams not familiar with building systems from component level, please contact the MAXSUR team for other recommendations.  We're easy to reach at ops@maxsur.com or 1-855-778-6565.

Video

Encoding

H.264

Input Channel

1 Channel

Input Impedance

75ohm

Input Format

NTSC/PAL (Auto Detection)

Maximum Input

1.0Vp-p @ 75ohm Unbalanced

Output Channel

1 Channel

Output Impedance

75ohm Unbalanced

Output Format

NTSC/PAL (According to Input), composite

Maximum Output

1.0Vp-p @ 75ohm Unbalanced



Recording

Video Recording Resolution

Format

PAL

NTSC





4CIF

704 x 576

704 x 480





2CIF

704 x 288

704 x 240





CIF

352 x 288

352 x 240



Video Recording Quality

Format

High

Normal

Low



4CIF

1800Kbps

1000Kbps

500Kbps



2CIF

1200Kbps

800Kbps

400Kbps



CIF

1000Kbps

600Kbps

300Kbps

Video Recording Frame Rate

PAL

25, 12, 8, 6 , 3, 1 fps



NTSC

30, 15, 10, 6, 3, 1 fps

Recording Mode

Emergency, Schedule, Alarm, Motion Detection

Decoding Video Format

As recorded Quality & Frame Rate

Pre-Recording Time

10 sec

Storage

Supports SDHC 4/8/16/32GB

Storage File System

FAT32, FAT16

Maximum Recording File

2,000 Files / Storage Device



Audio

Compression Format

16bit PCM, 8KHz

Input Channel

1CH Mono

Input Impedance

4.7Kohm

Maximum Input

6m Vp_p

Output Channel

1 Ch Mono Unbalanced

Maximum Output

12mW @RL=16ohm, Unbalanced



Alarm

Input

1 Channel TTL (Internal pull-up)

Output

1 Channel TTL



Operating Mode

Searching Method

Time/Event

Operating Mode

Live/Playback/Menu



Viewer Software

Monitoring Environment

Client S/W

Connection

Supporting 1 Client



I/O

A/V I/O

9pin Connector

Power & Control

28pin FFC Connector



Others

Status Output

2 Status Outputs Output, TTL

Control Input

3 Status Record/Finish/Input, TTL

Remote Control Interface Format

Non-Applicable

Motion Detection

Multi-detection level



Power

Power consumption

Approximate 150mA @ 12VDC

Closing Operation Function

Ext. Power off control to finish operation



Environmental

Operating Temperature

-20 to 60°C

Humidity

30 to 80% RH (non-condensing)



Physical

Dimension

38 x 38 x 10mm (W x L x H)

Weight

Approximate 10g
