4 Channel Mobile NVR with Built-in Modem and POE

4 Channel Mobile NVR with Built-in Modem and POE

Request Access or Login

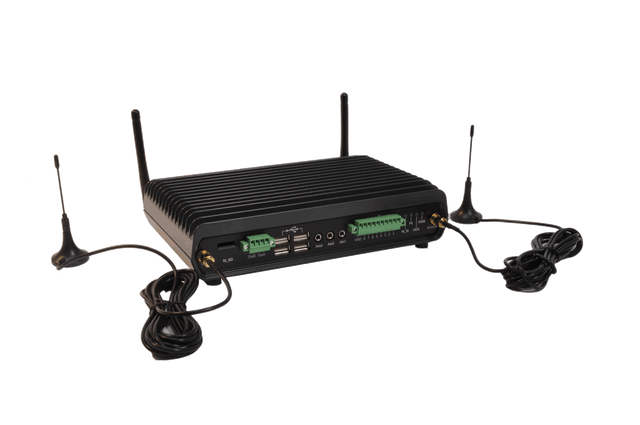

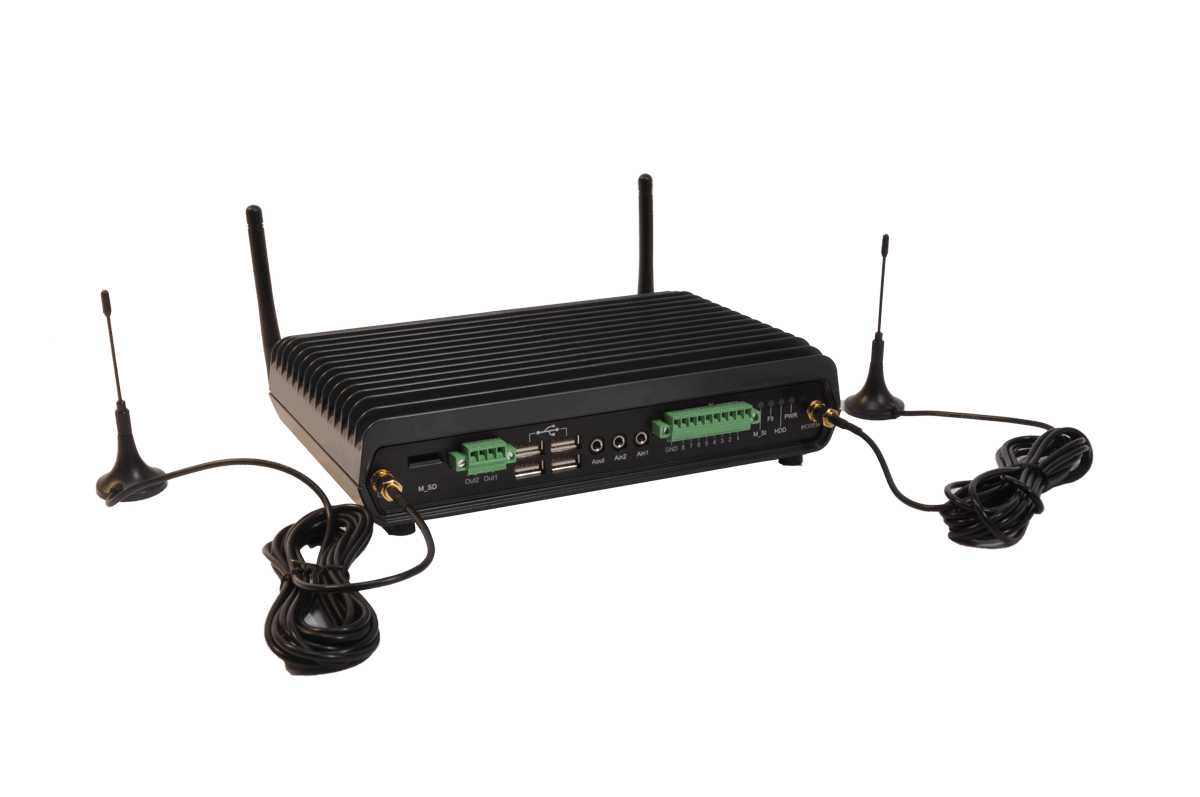

A new benchmark in mobile recording technology has been set with the MVR4-IP.  MVR4-IP is an NVR built to address the rigors of professional mobile video applications, and the demand for increased resolution and connectivity.   It is perfectly suited for bait car operations, prisoner transport, drop cars, and pole camera installations requiring onboard recording.

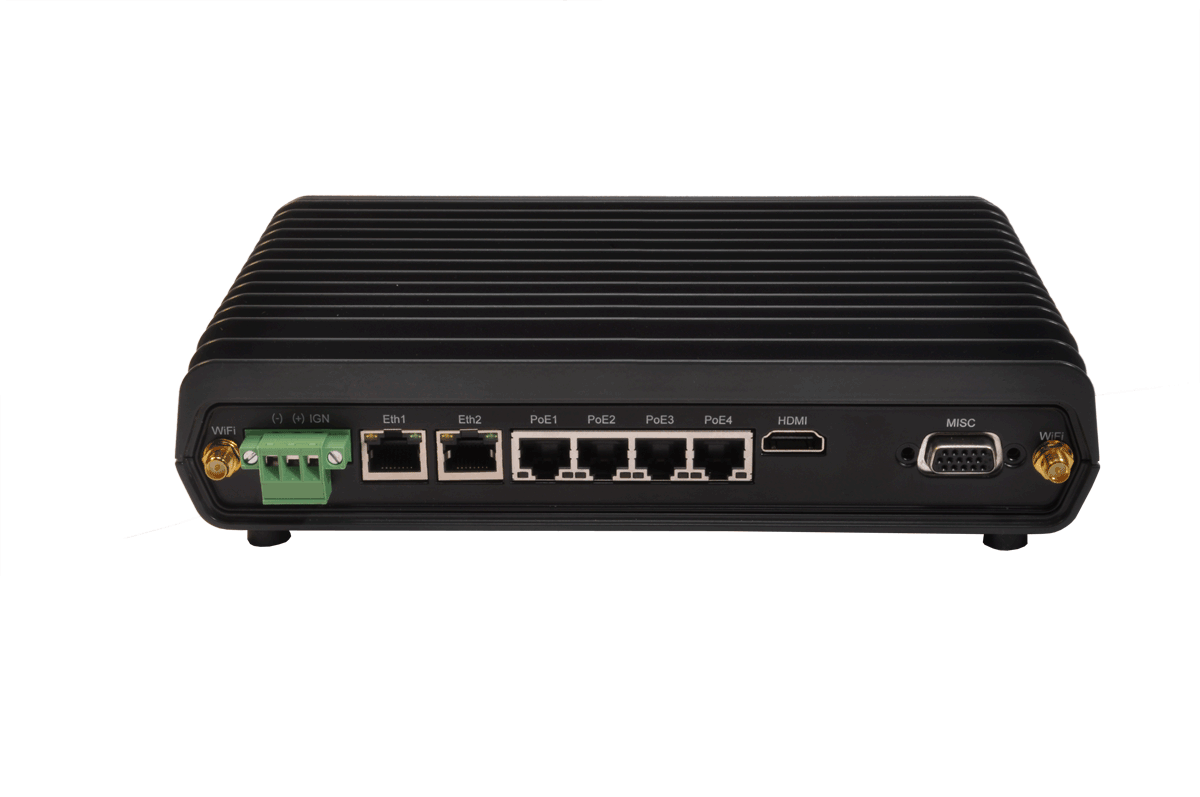

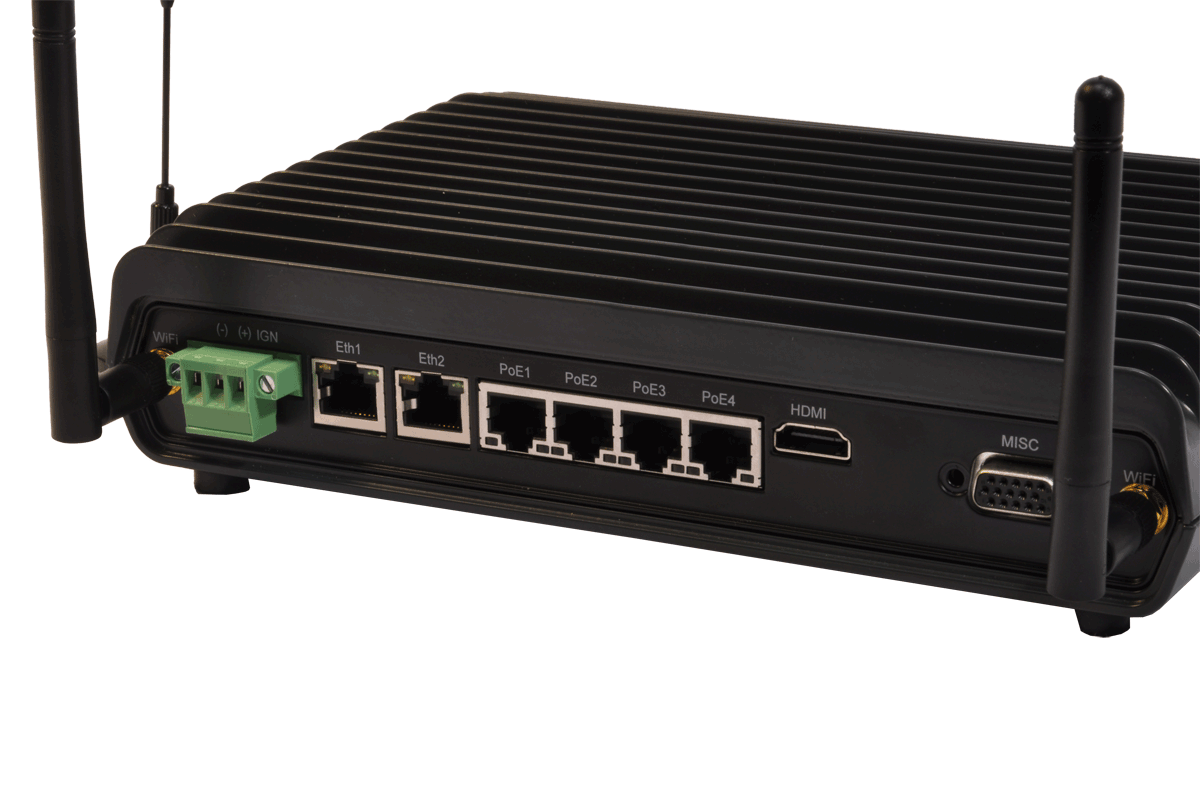

Simplifying installations, the MVR4-IP removes the need for a cellular or WiFi modem, as both are built-in.  Also built-in is a 4 channel POE port, which allows for single cable installation of today's high-resolution IP cameras.

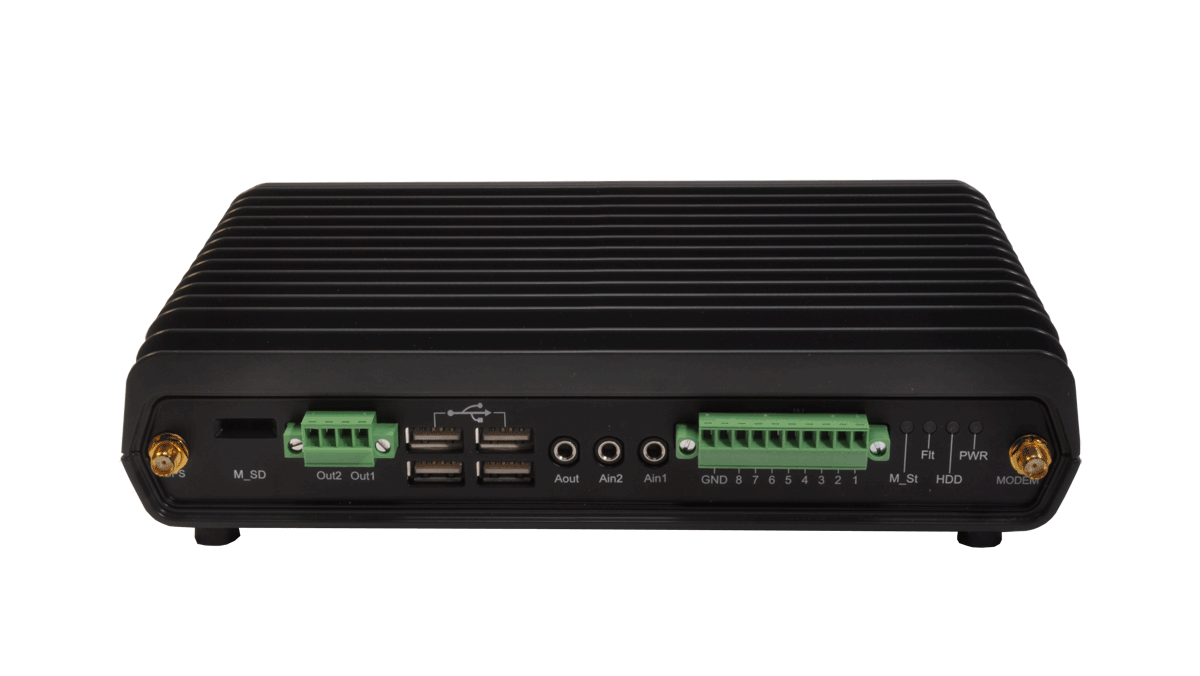

Adding further convenience, the MVR4-IP includes an integrated GPS receiver for real-time tracking.  In the case of bait car operations, four alarm inputs can be used to prompt activity notifications, and the two alarm outputs can be used to securely disable vehicles.

Live monitoring and management can be accomplished via any PC with the included software, or via an app for iOS/Andriod.  Activity alerts can be prompted by a wide range of factors including vehicle movement, geofencing, speed, camera detected movement, and sensor triggers via alarm inputs.



  • 4-ch video inputs, 2-ch audio input
  • Proprietary/patented video compression technology, ideal for transmitting live video over cellular/wireless connections
  • Built-in Wi-Fi, GPS, G-Force (accelerometer)
  • Geofencing, Speed Limit, Idle Monitoring and Route Deviation
  • D1/CIF/QCIF recording up to 30FPS
  • 4-input sensors; 2-output activators (dry-contact)
  • Data rate: variable 5kbps to 2Mbps per channel
  • Bi-directional audio support; built-in speaker
  • Patented shock absorbers increase system reliability
  • Recording: Event-driven or Continuous
  • Ignition-sensitive delayed system shutdown
  • Power input: 9-36V; Max. power consumption: 9W
  • Operating temperature: 0C – 45C; 32F – 158F (extended: -5C-70C)
  • Dimensions: 185(W)x158(D)x76(H) mm; 7.2”x6.2”x2.9”
  • Weight: 2kg; 4.8 lbs
