THERMAL-DAY VISION BINOCULARS - ATN BINOX-THD

THERMAL-DAY VISION BINOCULARS - ATN BINOX-THD

Request Access or Login

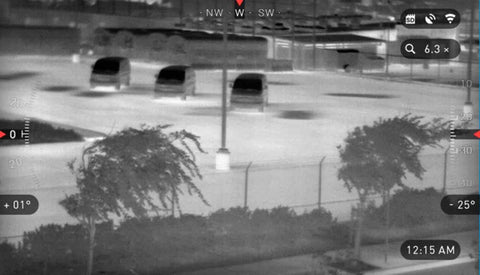

Thermal imaging has quickly become one of the leading technologies for patrol, search & rescue, and of course...tactical operations.  This is due to ability to work day or night, penetrate fog, smoke, and even foliage.   Now if your ready to adopt thermal into your surveillance line-up, the ATN Binox THD makes an excellent choice with significant additional benefits.

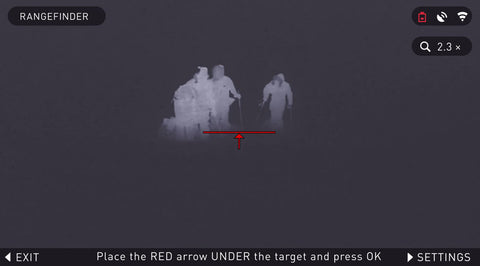

Beyond being just a thermal camera, the Binox-THD also includes a HD color camera, a built-in digital recorder, WiFi streaming to nearby smartphones, GPS tagging, range finder, and more.  All things considered, the Binox are the perfect companion for nearly every public safety discipline.

atn binox thermal features



BROCHURE & SPEC SHEET - 384 RES - 640 RES

SPECIFICATIONS

MODEL 384 4.5-18x 640 2.5-25x
SENSOR 384 x 288 640 x 480
MAGNIFICATION 4.5 to 18x 2.5 to 25x
ANGLE OF VIEW 6 x 4.7° 12.5 x 9.7°
OBJECTIVE LENS 50mm 50mm
MICRO DISPLAY 950 x 540 x 2 960 x 540 x
CORE ATN Obsidian "T" ATN Obsidian "T"
EYE RELIEF  10-30mm 10-30mm
INTERPUPILLARY ADJUSTMENT RANGE 60-70mm 60-70mm
IP RATING  Weather Resistant  Weather Resistant
VIDEO RECORD RESOLUTION 1280 x 960 at 30fps 1280 x 960 at 30fps
MICROPHONE Yes Yes
ON BOARD MEMORY 4GB 4GB
MICRO SD CARD Up to 64GB Up to 64GB
MICRO USB External Battery Pack External Battery Pack
MICRO HDMI Yes Yes
WIFI STREAMING  iOS & Android iOS & Android
GPS GEOTAGGING, ELEVATION, ETC. Yes Yes
3D GYROSCOPE Yes-GS3 Yes-GS3
3D ACCELEROMETER Yes Yes
3D MAGNETOMETER Yes Yes
ELECTRONIC COMPASS  Yes Yes
SMOOTH ZOOM Yes Yes
BATTERY LIFE 6-8 Hours 6-8 Hours
BATTERY TYPE 3, CR123A 3, CR123A
DIMENSIONS 8.2" x 5" x 2.3" 8.2" x 5" x 2.3"
WEIGHT 1.85 lbs 1.85lbs
HUMAN DETECTION RANGE 600M 600M
HUMAN ID RANGE 360m 360m
WARRANTY 3 Years 3 Years
