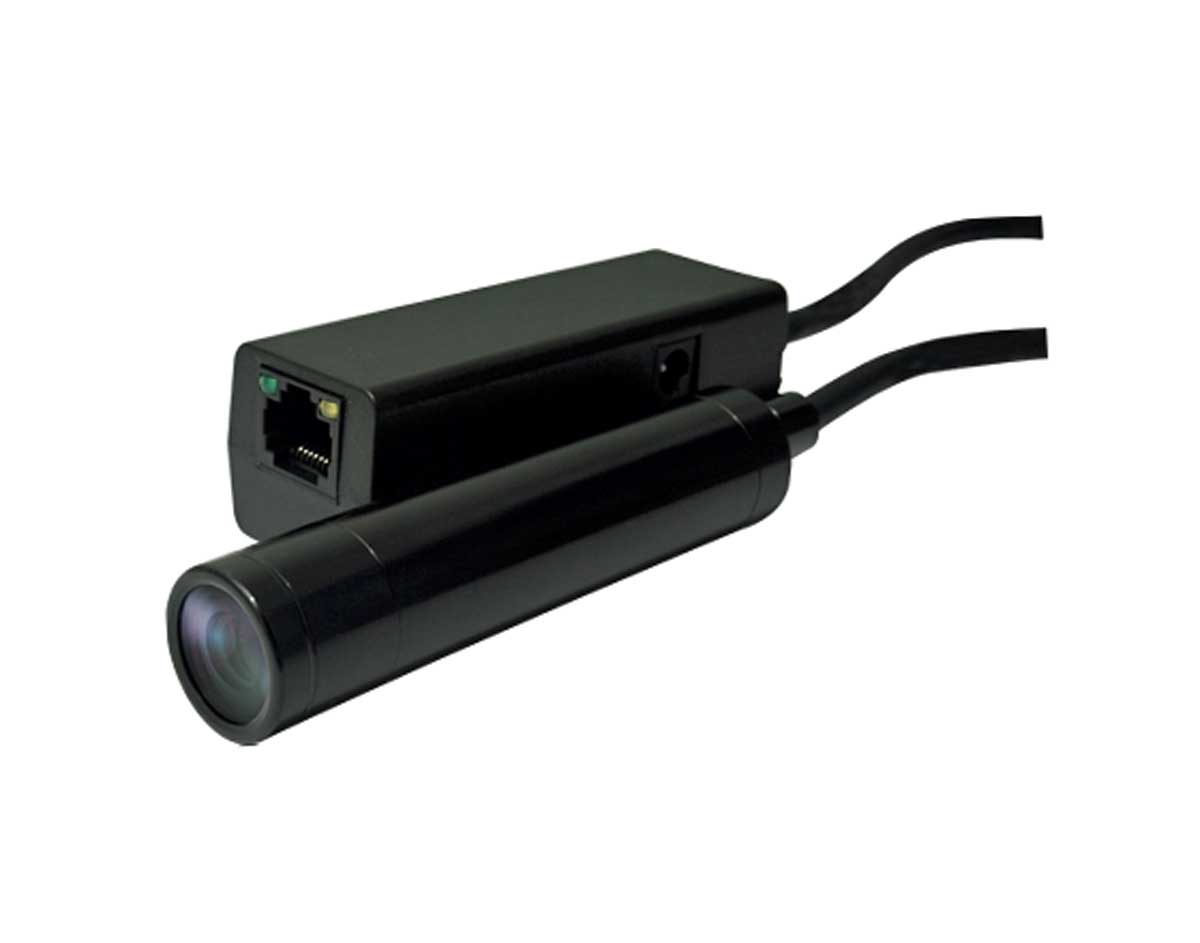

MB8 Series Micro IP Bullet Cameras with STARVIS Imaging
Description
Description
Micro IP Bullet Cameras with STARVIS Imaging
The MAXSUR MB8 Series brings network video, PoE power, STARVIS low-light imaging, and compact bullet-camera packaging into a small form factor for covert surveillance, field observation, facility security, robotics, and specialized IP video integration.
Small Bullet Cameras for Real IP Surveillance Work
The MB8 Series is designed for applications where a square board camera is not the right mechanical fit, but a full-size security bullet camera is too large or too obvious. These micro IP bullets are easier to align, mount, aim, and conceal in cylindrical spaces, field enclosures, poles, fixtures, vehicle platforms, and custom surveillance housings.
Network Video in a Tiny Body
The MB8 Series gives agencies and integrators IP video in compact 19mm and 23mm bullet-style housings, allowing the camera to connect to compatible NVRs, VMS systems, encoders, and remote viewing infrastructure.
STARVIS Low-Light Imaging
Sony STARVIS sensors help capture usable detail in challenging lighting, including alleys, building interiors, vehicle areas, remote field positions, and locations where visible light would compromise the deployment.
PoE Simplifies Installation
Power-over-Ethernet reduces wiring complexity by carrying video and power over one network cable. Select MB8 configurations can also operate from 12VDC where PoE is not available.
Why the Bullet Form Factor Matters
Micro bullet cameras are useful when the camera needs to be physically aimed, tucked into a narrow opening, mounted inside a small enclosure, or placed where a flat square-bodied camera is harder to position. The cylindrical format also works well in custom field surveillance builds, outdoor-style housings, robotics, and discreet fixed-view installations.
Easier Aiming
Bullet cameras are often easier to aim through a small viewing port or concealment window, especially in field kits, hidden enclosures, and custom mounts.
Compact Mounting
The 19mm and 23mm body diameters make the MB8 Series useful for locations where standard surveillance cameras are physically too large.
IP System Integration
Network output, H.264/MJPEG support, and ONVIF compatibility help the MB8 Series fit into professional IP video workflows.
STARVIS Low-Light Capability
Low-light performance is a major differentiator for covert and investigative video. STARVIS imaging helps the MB8 Series capture more usable detail when light is limited, uneven, or changing quickly.
For law enforcement, security, and infrastructure applications, this can make the difference between a scene that is simply visible and a scene that provides useful details such as clothing, movement, vehicles, faces, and context.
Wide Dynamic Range for Hard Lighting
Surveillance scenes rarely have perfect lighting. Headlights, windows, bright sky, doorway transitions, reflective surfaces, and deep shadows can all occur in the same frame.
The MB8 Series supports wide dynamic range and image-processing features that help maintain usable detail in high-contrast scenes where standard cameras may wash out highlights or lose detail in shadows.
Lens and Body Options
Choose the MB8 configuration by resolution, body diameter, and lens style. The 19mm 2MP model is the most compact MB8 option, while the 23mm 5MP model provides higher resolution for more detail when the concealment can accept the larger body.
Micro Lens
The micro lens configuration is the standard choice for direct-view surveillance where the camera has a clean line of sight through a port, window, opening, or enclosure face.
This is the best starting point for general fixed-view surveillance, field enclosures, robotics, and IP video applications where the camera does not need to look through a thick substrate.
Conical Pinhole Lens
The conical pinhole configuration is useful for covert installations where the camera must see through a deeper concealment surface or thicker housing material.
It is especially useful for custom boxes, utility-style housings, wall materials, field kits, and other placements where the lens must reach closer to the outer viewing surface.
Available MB8 Configurations
The MB8 Series includes compact 2MP and higher-resolution 5MP IP bullet camera options. Select the variant that fits your resolution requirement, body-size limitation, and concealment method.
MB8-19-ML-IP
MB8-19-CP-IP
MB8-23-ML-IP
Need a different lens, cable length, mount, housing, or complete covert integration? Contact MAXSUR for special order and custom system options.
2MP vs. 5MP: Which MB8 Camera Should You Choose?
Choose 2MP / 1080p when size is the priority.
The 19mm MB8 version is the better fit when the concealment is tight, the camera must remain as small as possible, or the application only requires 1080p video. It also provides strong low-light performance, 3D noise reduction, WDR, 12VDC/PoE power, ONVIF support, and IP67-rated protection.
Choose 5MP when detail is the priority.
The 23mm MB8 version steps up to 5.14MP QHD resolution, supporting 2592 x 1944 video at 30/25fps. It is a better choice when the mission benefits from more pixels for wider scenes, greater digital inspection, or more detail after the fact.
Technical Highlights
MB8-19 2MP IP Bullet
- 1/2.8" 2.13MP Sony STARVIS CMOS
- 1080p video at 30/25fps
- 0.05 lux with DSS off / 0.01 lux with DSS on
- H.264 and MJPEG support
- WDR, 3D DNR, DSS, BLC, defog
- IP67-rated compact body
- PoE or 12VDC power
MB8-23 5MP IP Bullet
- 1/2.8" Progressive Scan STARVIS CMOS
- 5.14MP QHD resolution
- 2592 x 1944 at 30/25fps
- DOL-HDR and wide dynamic range processing
- 2D/3D DNR, DSS, BLC, DWDR, defog
- H.264 and MJPEG multi-streaming
- PoE or 12VDC power
IP System Features
- Network video output
- ONVIF support for integration
- Multiple video streams
- Motion detection support
- Privacy masking options
- Compact aluminum construction
- Useful for NVR and VMS workflows
Common Applications
Covert Field Surveillance
Compact IP bullet cameras can be integrated into field kits, poles, boxes, housings, and temporary observation points where a standard security camera is too obvious.
Facility Security
Useful for discreet fixed-view coverage in buildings, restricted areas, equipment rooms, interview support spaces, and small enclosures.
Robotics & Inspection
The compact form factor and IP video output make the MB8 Series useful for robotic platforms, inspection tools, remote systems, and custom payloads.
Vehicle & Mobile Platforms
The small cylindrical body can be useful for discreet vehicle installations, mobile platforms, bait deployments, and custom surveillance builds.
Critical Infrastructure
A strong fit for telecom, utility, yard, gate, equipment, and remote-site monitoring where compact network video is preferred.
Custom Covert Systems
MAXSUR can integrate MB8 cameras into purpose-built covert systems, concealments, enclosures, and complete surveillance packages.
Expert Advice: Getting More from Bullet Cameras
Bullet Cameras Are More Than a Shape
The bullet form factor can help with aiming, concealment, weather-facing placement, and field installation. When matched with the correct lens, power plan, network path, and concealment, a compact bullet camera can do a lot of quiet work.
Selection Tips
- Use 19mm when the body size is the limiting factor.
- Use 5MP when the scene needs more detail and the larger body is acceptable.
- Use conical pinhole configurations when the camera must view through deeper material.
- Use PoE where possible to simplify wiring and power management.
- Validate low-light performance with the actual scene, not just a brightly lit bench test.
Frequently Asked Questions
What is the difference between the 19mm and 23mm MB8 cameras?
The 19mm version is the smaller 2MP/1080p model and is best when compact size is the top priority. The 23mm version is larger but provides 5.14MP QHD resolution for more detail.
Do these cameras support PoE?
Yes. MB8 IP bullet cameras support Power-over-Ethernet and can also be powered by 12VDC depending on the installation design.
When should I choose the conical pinhole version?
Choose the conical pinhole lens when the camera needs to view through a thicker concealment surface, deeper housing, wall material, toolbox, or custom enclosure.
Can these cameras connect to an NVR or VMS?
Yes. The MB8 Series is designed for IP video workflows and supports ONVIF integration. Compatibility should still be verified with your recorder, VMS, network, and required settings.
Can MAXSUR build these into a complete covert system?
Yes. MAXSUR can support custom housings, field kits, network equipment, recorders, power systems, concealments, and complete surveillance packages.
Need a Compact IP Bullet Camera for a Covert or Field Build?
MAXSUR can help match the MB8 Series to your concealment, NVR, transmitter, network path, field enclosure, vehicle deployment, robotics platform, or custom surveillance project.
