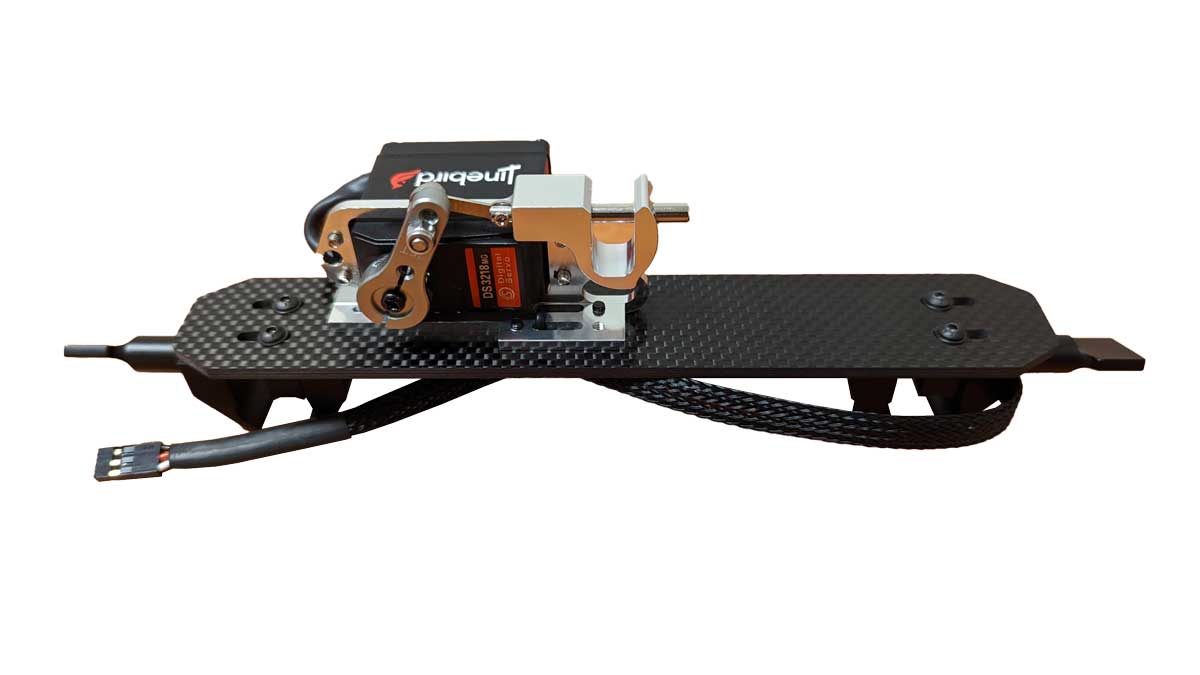

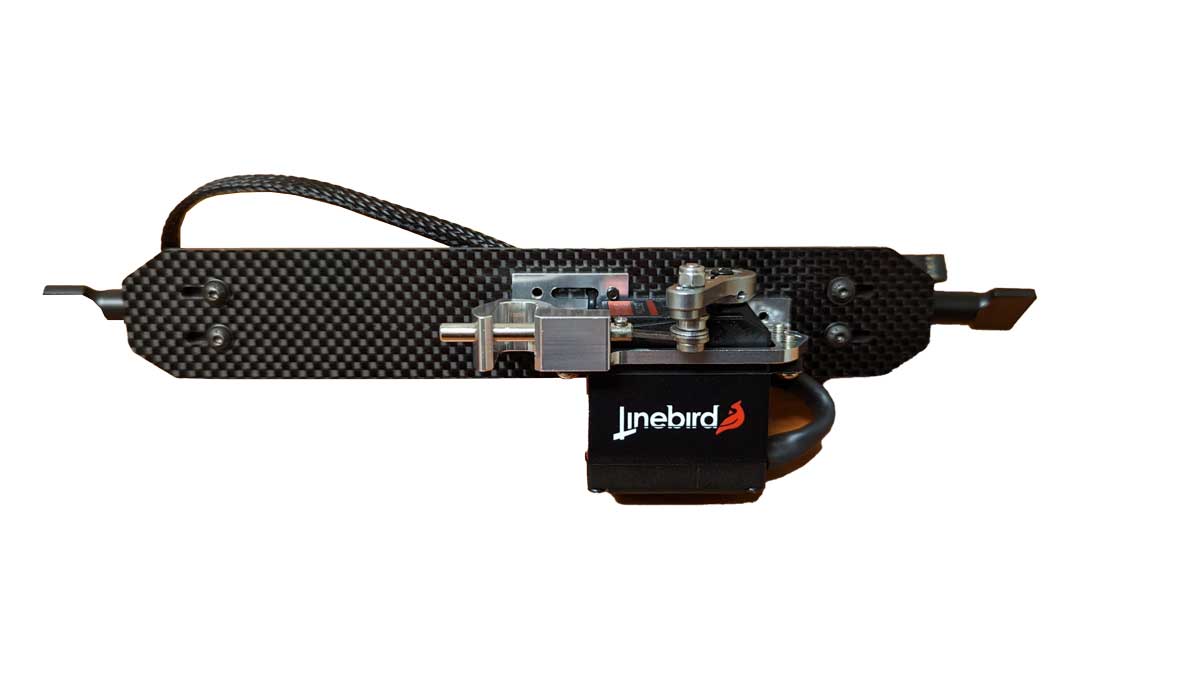

IF1200 Payload Drop Mechanism
The IF1200 Payload Drop Mechanism adds controlled release capability to the Inspired Flight IF1200 heavy-lift hexacopter. Designed for payloads up to 20 kg, this hardware enables mission-driven aerial delivery, line deployment, rescue support, and specialized field operations where a UAS can place critical equipment where people, vehicles, or boats may not be able to safely or quickly reach.
Controlled Aerial Delivery
Add payload release capability to the IF1200 for carefully planned drops, line deployment, field delivery, and mission-specific release tasks.
Built for Heavy-Lift Missions
With hardware designed for up to 20 kg payload capacity, this mechanism supports demanding operations where the IF1200’s lift capability can be used for more than imaging.
Simple Rail Installation
The mechanism clamps onto standard 12 mm cargo rails, helping teams add release capability without turning the aircraft into a custom science project.
Turn the IF1200 Into a Payload Delivery and Release Platform
Many drone operations focus on cameras, mapping, and sensors. The IF1200 Payload Drop Mechanism expands the aircraft into a practical aerial delivery tool for agencies, utilities, emergency responders, and defense users who need controlled release capability.
Use cases can include rescue supply drops, flotation device delivery, rope or line placement, utility support operations, field equipment delivery, and authorized tactical or defense resupply missions. Payload release operations should always be planned, tested, and conducted in accordance with manufacturer guidance, aircraft limits, agency policy, and all applicable laws and regulations.
Payload Release Capability for Public Safety, Utility, and Defense Operations
When the right payload needs to reach the right place quickly, a heavy-lift drone with a controlled drop mechanism can reduce risk to personnel and create new operational options.
Search & Rescue Supply Drops
Deliver emergency supplies, radios, medical kits, lights, batteries, thermal blankets, or other small mission-critical equipment to stranded or isolated people.
Water Rescue Support
Support delivery of flotation devices, throw lines, markers, or other rescue aids where current, distance, terrain, or access may delay responders.
Line Pulling & Utility Work
Assist with line placement, pull-string deployment, utility support tasks, and infrastructure operations where aerial access can reduce climbing or difficult access.
Critical Infrastructure Response
Deliver small tools, communications items, markers, or inspection support equipment to remote, damaged, or hard-to-access infrastructure locations.
Emergency Management
Support disaster response, flood response, storm recovery, evacuation support, and rapid field logistics where ground access may be limited.
Defense & Tactical Support
Support authorized delivery of mission supplies, training aids, field equipment, and controlled resupply items where policy and operational authority permit.
Built for Reliable Payload Release
The IF1200 Payload Drop Mechanism combines lightweight hardware, strong release capacity, and straightforward control integration for mission-specific payload deployment.
20 kg Capacity Hardware
Designed as a payload drop mechanism with hardware capacity up to 20 kg, supporting the IF1200’s heavy-lift mission profile.
Lightweight Design
The release mechanism is lightweight at less than 0.5 lb, helping preserve payload margin for the actual mission item being carried.

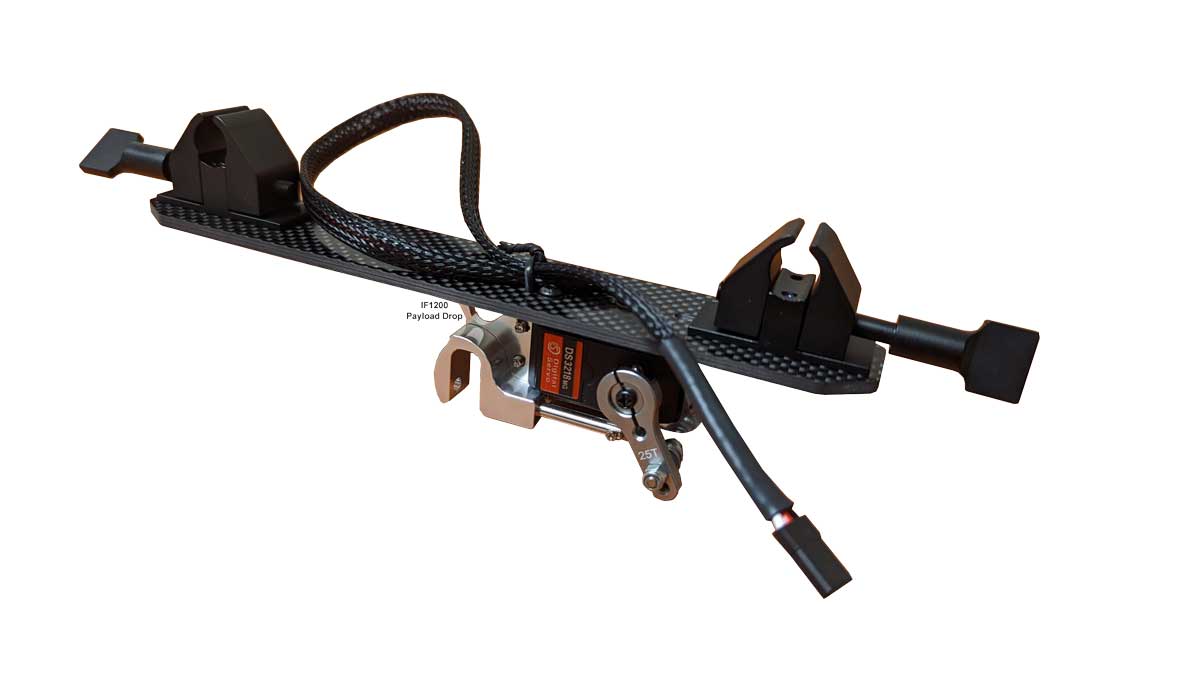

12 mm Cargo Rail Clamp
Clamps onto standard 12 mm cargo rails for quick installation on compatible IF1200 configurations.
Metal Gear Servo Control
Uses a metal gear servo for precise open and close control during payload release operations.
Shielded Signal Cable
Includes a shielded signal cable to support reliable communication between control input and release mechanism.
RC Button or Switch Mapping
Can be mapped to a preferred RC button or switch for seamless release control during properly planned missions.
IF1200 Payload Drop Mechanism Details
| Product | IF1200 Payload Drop Mechanism |
|---|---|
| Primary Application | Controlled payload release, supply delivery, line deployment, and mission-specific drop operations |
| Platform Compatibility | Inspired Flight IF1200 heavy-lift hexacopter with compatible 12 mm cargo rail configuration |
| Payload Capacity | Hardware for up to 20 kg capacity payload release mechanism |
| Mechanism Weight | Lightweight release system, less than 0.5 lb |
| Mounting Method | Clamps onto standard 12 mm cargo rails |
| Control Method | Operated via PWM signal and mapped to preferred RC button or switch |
| Servo | Metal gear servo for controlled open and close operation |
| Signal Cable | Shielded signal cable |
| Aircraft Included? | No. The IF1200 aircraft is sold separately. |
Payload Release Requires Mission Planning
Payload release is a serious UAS operation. Payload weight, aircraft configuration, attachment method, center of gravity, wind, altitude, flight path, release zone, people on the ground, and payload behavior after release must all be evaluated before use.
MAXSUR recommends that teams establish written SOPs, training procedures, test protocols, risk assessments, and authorization requirements before conducting operational payload drops.
Payload Drop Planning Considerations
MAXSUR can help agencies and enterprise teams think through the complete release workflow, not just the hardware.
Define the Mission
Identify whether the operation involves rescue supplies, line deployment, field equipment, tactical support, utility work, or another approved use case.
Confirm Payload Weight
Validate the payload weight, packaging, attachment method, balance, and aircraft performance impact before flight.
Map the Controls
Configure the release mechanism to the preferred RC button or switch and verify open/close operation before mission use.
Establish a Release Zone
Plan the drop area, safety perimeter, altitude, approach path, and abort criteria before payload release.
Train and Test
Conduct controlled testing and operator training before relying on payload release during live public safety, utility, or defense operations.
Build the Complete Kit
Pair the mechanism with the IF1200 aircraft, batteries, charger, controller, payload packaging, cases, field power, and training.
Build a Complete IF1200 Mission Payload System
A payload release workflow may require the aircraft, release mechanism, batteries, charger, controller configuration, field cases, payload packaging, training, and agency SOPs. MAXSUR can help configure the complete system around the mission.
IF1200 Payload Drop Mechanism FAQ
What is the IF1200 Payload Drop Mechanism used for?
What is the payload capacity?
How does it install on the IF1200?
How is the mechanism controlled?
Does this product include the IF1200 aircraft?
Can MAXSUR help configure this for a public safety or utility mission?
