ASDG400 Digital Wireless Audio Transcorder System
The Hornet is a compact digital body wire for authorized law-enforcement and government operations. It combines secure live audio transmission with local WAV recording, helping investigative teams monitor an operation in real time while preserving audio onboard if reception is degraded or interrupted.
Mission-Critical Advantages
A live feed supports immediate situational awareness. The onboard recording provides a second layer of protection for the audio record—without forcing an agency to choose between monitoring the operation and documenting it.
Hornet sends live audio to the surveillance team while recording locally to microSD. If RF reception becomes unreliable, the onboard file remains available for post-operation retrieval.

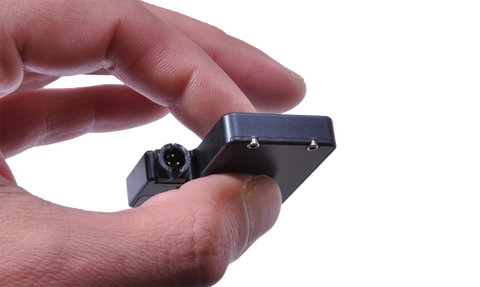

If the external power source is disconnected, a concealed internal battery automatically provides approximately 30 minutes of reserve power to help maintain recording.

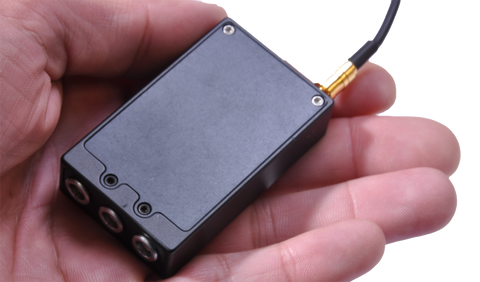

The body-worn transcorder uses a low-profile, rounded aluminum enclosure and positive-locking connectors designed for concealed placement and repeat field use.
A Knowles-brand microphone supports high-quality voice capture for undercover conversations, controlled purchases and confidential-informant deployments.

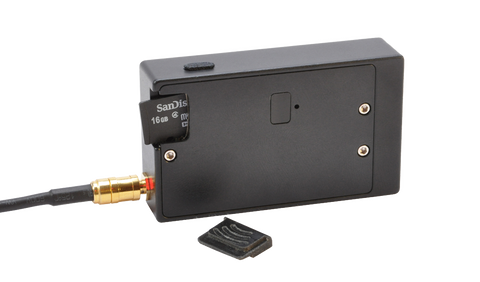

Recordings are stored as standard WAV files on removable microSD media, allowing authorized personnel to transfer and review audio using common computer media tools.
The included receiver provides digital decryption and selectable analog reception, helping agencies retain compatibility with supported legacy analog transmitters.
Operational Workflow
The compact Knowles microphone captures the conversation while the transcorder is concealed on the operator or confidential informant.
Encrypted digital audio is sent to the included receiver for real-time monitoring by the surveillance or cover team.
At the same time, Hornet records a WAV file to removable microSD media for authorized post-operation review and evidence-handling workflows.
Applications
The Hornet covert audio transmitter and recorder can support appropriately authorized operations such as:
Technical Overview
The most frequently requested specifications are shown below. Final frequency, power, antenna and system configuration are established for the purchasing agency.
| Specification | Hornet ASDG400 |
|---|---|
| Primary function | Encrypted digital audio transmission with simultaneous onboard recording |
| Recording media | Removable microSD card; supports 16GB media |
| Recording capacity | More than 120 hours at 8,000 Hz or up to 60 hours at the 32,000 Hz high-quality setting |
| Audio file format | WAV |
| Microphone | Knowles-brand microphone |
| Digital operating frequency | Agency-specified frequency from 303 MHz to 433 MHz |
| RF output | 100 mW |
| Maximum stated range | Up to approximately 2 miles line of sight under favorable conditions |
| Reserve power | Approximately 30 minutes of internal backup power if external power is disconnected |
| Receiver modes | Digital decryption, FM, WFM and AM |
| Analog receiver coverage | 100-821 MHz, 851-866 MHz and 896-1309 MHz |
| Receiver memory | 1,300 channels |
| Receiver antenna connection | SMA, 50 ohm |
| Receiver operating temperature | 14°F to 140°F (-10°C to 60°C) |
| Warranty | Two years |
| Analog option | NTIA-compliant analog versions available |
Range is not guaranteed and varies with antenna selection, placement, terrain, structures, interference, frequency, receiver setup and other field conditions. Frequency availability and use are subject to agency requirements and applicable authorization.

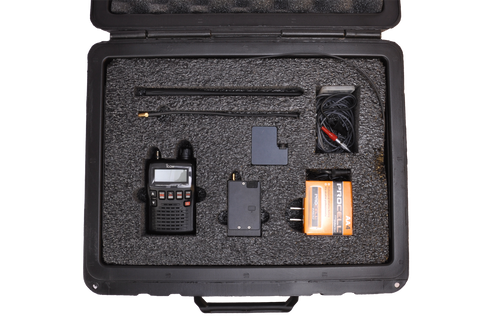

Complete System
Buyer Questions
A transcorder combines transmission and recording in one system. The Hornet sends live audio to the monitoring team while simultaneously creating a local WAV recording on removable microSD media.
Yes. While the unit remains powered and properly configured, onboard recording continues independently of the quality of the RF link. The audio file can be retrieved from the microSD card after the operation.
The Hornet automatically engages a concealed internal reserve battery that provides approximately 30 minutes of additional operation, helping protect continuity of the onboard recording.
The included receiver supports digital decryption and selectable FM, WFM and AM modes for reception of supported legacy analog transmitters.
The published performance is up to approximately two miles line of sight under favorable conditions. Actual field range varies with antenna configuration, placement, terrain, structures, interference, frequency and receiver setup.
Email ops@maxsur.com or call 1-314-270-2150. MAXSUR will confirm your agency requirements and provide an official quote.
Talk With MAXSUR
Tell us about the mission environment, monitoring requirements and legacy equipment you need to support. We will help configure the Hornet for your agency and provide official pricing.
Authorized use only: Covert audio surveillance and recording equipment must be purchased, configured and deployed in accordance with applicable law, agency policy, licensing requirements and appropriate legal authorization.
