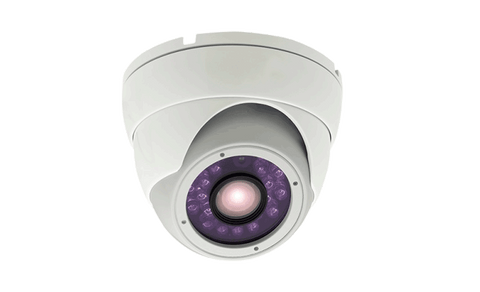

IR Turret Dome Camera
IR Turret Dome Camera
This security camera is perfect for both high-traffic daytime surveillance, and nighttime monitoring where zero light is available. The advanced CMOS imager negioates high contrast lighting scenes common to ingress and egress points. At night, naturally occuring noise that would make most cameras appear grainy, is nearly eliminated thanks to an onboard 3D DNR (digital noise reduction) feature.
Resolution is a full 1080p at 30fps, and the output is both digital and composite for legacy recorders. All menu functions controls are fully accessible with integrated micro-joystick and OSD (on-screen-display).
Mounting can be either ceiling or wall, and the vandal resistant housing is right at home indoors or outdoors.
| Imaging Device | 1/2.8" Progressive Scan CMOS |
| Video Format | Main Output: 1080p/720p HD-TVI 30/25FPS (OSD selectable) Secondary Output: Full time CVBS (OSD selectable NTSC/PAL) aux video |
| Picture Elements | 1984 (H) x 1105 (V) |
| Effective Picture Elements | 1920 (H) x 1080 (V) |
| Horizontal Resolution | More than 1080 HTVL (1080p mode) |
| Sensitivity | 0 lux IR on |
| Day/Night Type | True Day/Night with ICR motorized filter control |
| Lens Type | Megapixel Fixed Focal Length f=3.6mm board type |
| IR LED | 20 LED, 850nm |
| IR Range | 66’ / 20m † |
| Smart IR Exposure Adjust | Adjustable Off/low/mid/high |
| Video Output Connector Type | TVI and CVBS: BNC 75Ω |
| Sync. Mode | Internal |
| OSD Menu | Multiple functions using UTC Control |
| OSD Languages | English, Spanish, Portuguese, German, Russian, Japanese, French |
| UTC Control | Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling |
| DWDR/BLC/HSBLC | OFF/WDR/BLC/HSBLC Selectable Adjustable for Level 1~10; also BLC area, HLC color. |
| Auto Gain Control | OFF; 2~42dB |
| Electronic Shutter | Auto; FLK; or Manual 1/30 (25) to 1/30,000 |
| White Balance | Auto / Push Lock / Manual |
| Color Correction | Gamma 0.45~.65, adjustable |
| Day & Night | Auto True D/N with motorized ICR, controlled by photo sensor. Optional color-only and B/W only modes under OSD control |
| Digital Slow Sutter [DSS] | DSS low light boost Off/Auto 2X~16X* |
| 3D-DNR | Off/Low/Mid/High |
| Digital Zoom | 1X~8X |
| Defog | Off/Low/Mid/High |
| Mirror | Off / H-flip, V-flip, rotate |
| Motion Detection | Off/On for programmable zone with sensitivity adjust (pixel change detection) |
| Privacy Mask | Off/On with full programmability for 8 selectable zones |
| Lens Shading Compensation) | Off/Low/Mid/High |
| DPC (Defective Pixel Correction) | Off/On |
| Other OSD Functions | Camera Title with position, Font Color; Image Sharpness |
| Power Source | 12VDC |
| Power Consumption | 12VDC:390mA |
| Operating Temperature | 14 °F ~ 122 °F (-10 °C ~ 50 °C) |
| Environmental | IP66 weather resistant |
| Mechanical | Metal ball and base, with base removable for easy mounting |
| Positioning | 3-axis flexible positioning for wall or ceiling mounting Pan: 0~360° Tilt: 0~70° Rotate: 0~360° |
| Dimensions | Ø5.14” × 3.67” [Ø93 × 63mm] |
| Weight | .73 lbs./332g |
| Certifications | CE / FCC / RoHS |
