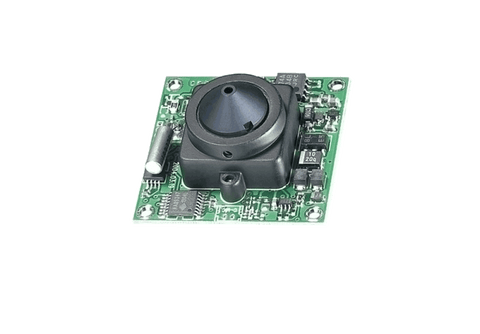

HD Pinhole Camera with Conical Lens
HD Pinhole Camera with Conical Lens
Done right, this pinhole camera can be installed with just a 1/16 inch pinhole, making it nearly impossible to detect, even at close range. Along with stealth, this pinhole camera provides crystal clear HD video and progressive scanning which provides sharp footage of fast moving targets.
SPECIFICATIONS| Image Device | 1/2.7” PROGRESSIVE SCAN CMOS |
| Effective Pixels | 1930 (H) x 1088 (V) |
| Unit cell size | 3.0um (H) x 3.0um (V) |
| Video output mode | HD-TVI : 1080P 30fps(25fps) |
| Transmission Distance | HD-TVI : Color 300m@RG59 , BW 500m@RG59 |
| Menu Access | Up the Cable control |
| Shutter speed | Auto, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/3000, 1/10000 |
| BLC | BLC (1~16 selectable) |
| HLC | Adjustable area, 0~255 for mask and threshold values |
| AGC | 1~5 (Max. 30dB) |
| Flickerless | Off, 50Hz, 60Hz |
| 2DNR | AUTO |
| White Balance | AUTO indoor / AUTO Outdoor / USER / PUSH / Manual |
| Lens | Board type 3.7mm / Pinhole type 4.3mm |
| Day&Night | Auto, color, B/W |
| Privacy Zones | Two, with adjustable size and position |
| Image Control | Flip, Mirror, Gain, Hue, Sharpness, Contrast |
| Temperature/Humidity (non condensing) | Operation : 5°F~122°F(-15°C~50°C), Storage : -4°F~140°F(-20°C~60°C), Humidity less than 80% |
| Power Consumption | DC12V ±10% Max.100mA |
| External Control | UTC (Up The Cable OSD Menu Control) |
| Dimensions | Body 1.25” x 1.25”, Depth with pinhole Lens .765“| With Board Lens 1.175" |
| Video and Power Cable | Detachable; >23” long (58.5cm) |
| Weight | Approx. 15g / .5 oz. plus cable |
