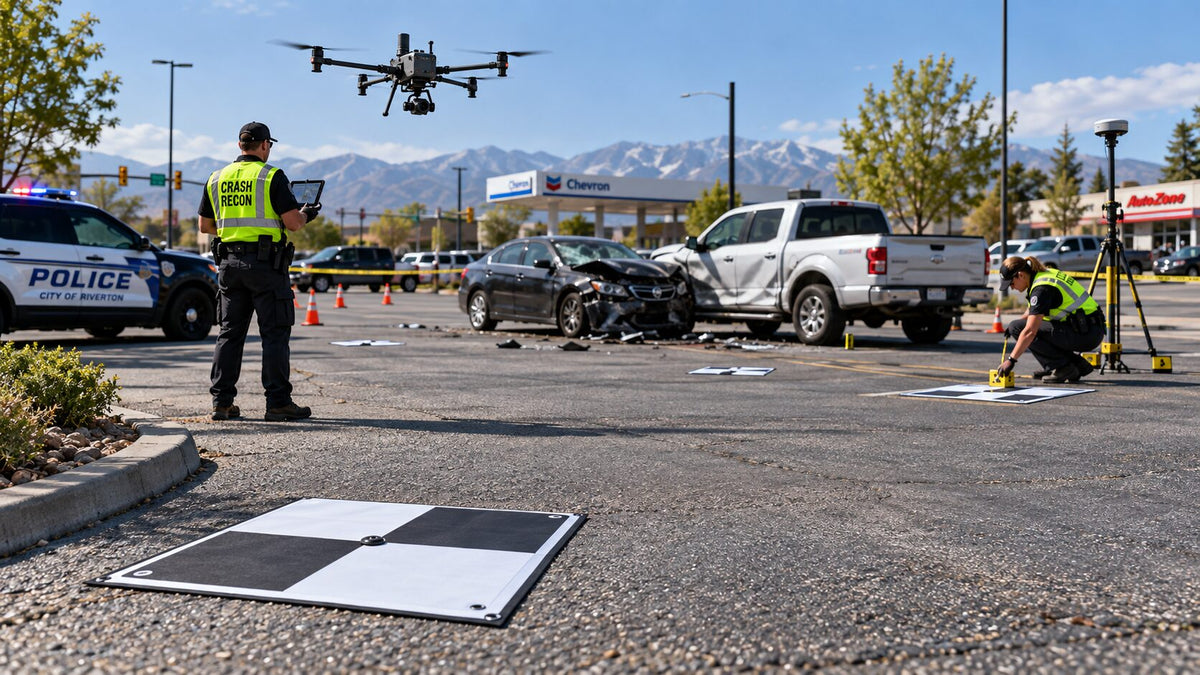

Law enforcement drone mapping a crash scene with ground control targets for photogrammetry and 3D reconstruction

Drone Ground Control Targets

(0 products)

Drone Mapping • Photogrammetry • Public Safety

Drone Ground Control Targets for Accurate, Repeatable 3D Mapping

Drone ground control targets give mapping teams clearly identifiable reference points that can be measured, recognized in aerial imagery, and used to strengthen photogrammetry and 3D scene reconstruction workflows. For law enforcement and public safety teams, they are especially useful when documenting crash scenes, large outdoor crime scenes, roadways, facilities, disaster areas, and other locations where positional accuracy and repeatability matter.

MAXSUR offers Rothbucher ground control target solutions designed for professional drone mapping workflows, including reusable, foldable, large-format, and numbered target options for field deployment.

Drone Ground Control Photogrammetry 3D Crime Scene Mapping Crash Reconstruction PIX4D Workflows Public Safety UAS

What a Ground Control Target Actually Does

A high-contrast target gives the drone imagery and mapping software a point that can be identified consistently across photographs. When the center of that target is surveyed or otherwise assigned a known coordinate, it can be used as a ground control point to help constrain the model to real-world position, scale, and orientation.

Important distinction: a visible target by itself is not automatically a ground control point. It becomes useful as ground control when its position is measured or assigned within the mapping workflow. Separate targets can also be held back as independent checkpoints to evaluate model accuracy.

Built for Law Enforcement & Public Safety Mapping

Crash & Accident Reconstruction

Establish visible reference control around intersections, roadways, parking lots, and extended collision scenes before aerial capture.

Crime Scene Documentation

Support structured drone photogrammetry on large outdoor scenes where investigators need a repeatable reference framework across the capture area.

Facilities & Tactical Site Mapping

Improve mapping workflows around campuses, training areas, critical infrastructure, and pre-planned operational sites.

Disaster & Emergency Mapping

Use visible control targets to support aerial documentation of damaged infrastructure, debris fields, and other large-area public safety missions.

Choosing the Right Drone Mapping Target

Reusable Field Targets

A strong choice for routine public safety mapping programs where targets are deployed, collected, and reused across many missions.

Foldable & Portable Targets

Useful when equipment space matters and teams need targets that can move quickly from a vehicle or mapping kit to the scene.

Large-Format Targets

Designed for workflows where the target must remain clearly identifiable from greater altitude, larger standoff distance, or broad-area capture.

Numbered Targets

Help teams distinguish control points in the field and streamline correspondence between the physical scene, survey notes, and processing workflow.

A Practical Ground Control Workflow

Distribute TargetsPlace targets around the mapping area with good geometric spread and clear aerial visibility.

Measure ControlSurvey or assign the target centers using the agency's selected GNSS, total station, or control workflow.

Capture the SceneFly the drone with sufficient image overlap and coverage so the targets are visible in the dataset.

Process & VerifyUse control points in the photogrammetry workflow and reserve independent checkpoints when appropriate for quality evaluation.

Build the Complete 3D Mapping Workflow

Ground control targets work best as part of a complete mapping program that connects the aircraft, capture method, processing software, and supporting reference-control tools.

Mapping Targets & Reference ControlExplore the broader Rothbucher target, fixed-point, SLAM, scanner, and accessory ecosystem. PIX4D Photogrammetry SoftwareProcess aerial imagery into measurable 2D and 3D mapping deliverables. Drones & UAS SolutionsExplore public safety drone platforms, payloads, training, and mission support. LiDAR MappingCombine aerial, mobile, or terrestrial LiDAR with coordinated reference-control workflows. Public Safety GrantsExplore funding resources for drone, mapping, LiDAR, and public safety technology programs. MAXSUR Mapping & UAS ResourcesRead practical articles covering public safety drones, photogrammetry, LiDAR, and 3D mapping.

Need Help Selecting Drone Ground Control Targets?

MAXSUR can help agencies select target sizes, configurations, and reference-control accessories for drone photogrammetry, crash reconstruction, forensic mapping, and mixed drone/LiDAR workflows.

Email: ops@maxsur.com
Phone: 1-314-270-2150

Target size, placement, control method, survey accuracy, flight altitude, camera resolution, processing settings, and software configuration all affect mapping results. Select and deploy ground control according to the requirements of the mission, aircraft, camera, survey method, and processing platform.
