IF800 LiDAR Payload Integration Accessories
IF800 LiDAR Integration Kits for Professional Mapping Payloads
Configure your Inspired Flight IF800 Tomcat for customer-supplied LiDAR systems with purpose-built integration kits for Rock Robotic, Inertial Labs, YellowScan, PLS, Riegl, and GeoCue payloads. These kits help connect the aircraft, payload, GNSS components, power cabling, damping, and mounting hardware needed to turn the IF800 into a serious aerial LiDAR mapping platform.
Make the IF800 LiDAR-Ready
These integration kits help adapt the IF800 Tomcat to specific LiDAR payload families by providing the required mounting, GNSS, cabling, power, and damping components for cleaner payload installation.
Support Defensible Mapping Workflows
LiDAR missions often support high-value deliverables such as point clouds, terrain models, infrastructure documentation, and crash or crime scene reconstruction. Proper integration helps the aircraft and sensor work together as a system.
Choose the Correct Variant
Each kit is configured around a specific LiDAR payload model. Use the Shopify product options above to select the correct integration kit for your sensor.
LiDAR Integration Matters
A Good LiDAR Payload Still Needs the Right Aircraft Integration
Aerial LiDAR is a system-level workflow. The sensor, aircraft, GNSS antenna, cabling, power connection, damping, and payload interface all matter. A strong integration kit helps reduce field friction, protects the payload connection, supports cleaner setup, and gives drone teams a more repeatable path from aircraft assembly to data collection.
MAXSUR offers IF800 LiDAR integration kits to support public safety mapping, crash reconstruction, crime scene documentation, GIS asset capture, infrastructure inspection, corridor mapping, and other professional point-cloud workflows.
Product Options / SKUs
IF800 LiDAR Integration Kit Options
Select the correct kit using the Shopify product options. Each SKU is designed around a specific customer-supplied LiDAR payload.
Mission Applications
Turn the IF800 Into a LiDAR Mapping Platform
IF800 LiDAR integration kits support teams that need to capture accurate 3D data from the air. From public safety reconstruction to public works mapping, these kits help bridge the gap between aircraft and payload.
Crash Reconstruction
Support aerial point-cloud capture for serious crash scenes, roadway documentation, measurements, scene preservation, and reconstruction workflows.
Crime Scene Mapping
Help investigative teams document complex outdoor scenes, terrain, structures, paths of travel, evidence locations, and large-area environments.
GIS & Public Works
Support asset mapping, drainage review, terrain modeling, road projects, construction progress, and municipal infrastructure documentation.
Utilities & Infrastructure
Support corridor mapping, vegetation assessment, infrastructure modeling, access condition review, and inspection planning.
Common Kit Components
Integration Components May Include
- Smart dovetail adapter
- GNSS mount
- GNSS cable
- Payload-specific power cable
- Skyport connector support where applicable
- Pro damping kit
- Model-specific components depending on selected LiDAR payload
System Configuration Notice
Integration Kit Only
These products are IF800 LiDAR integration kits only. Unless specifically stated in a configured quote, the LiDAR payload, IF800 aircraft, batteries, ground control station, software, training, and other accessories are sold separately.
The customer must select the correct kit for the LiDAR payload model. GeoCue kits require model confirmation before final configuration.
Quick Comparison
IF800 LiDAR Integration Kit SKU Guide
| Kit Option | Product Code | Payload Support | Notes |
|---|---|---|---|

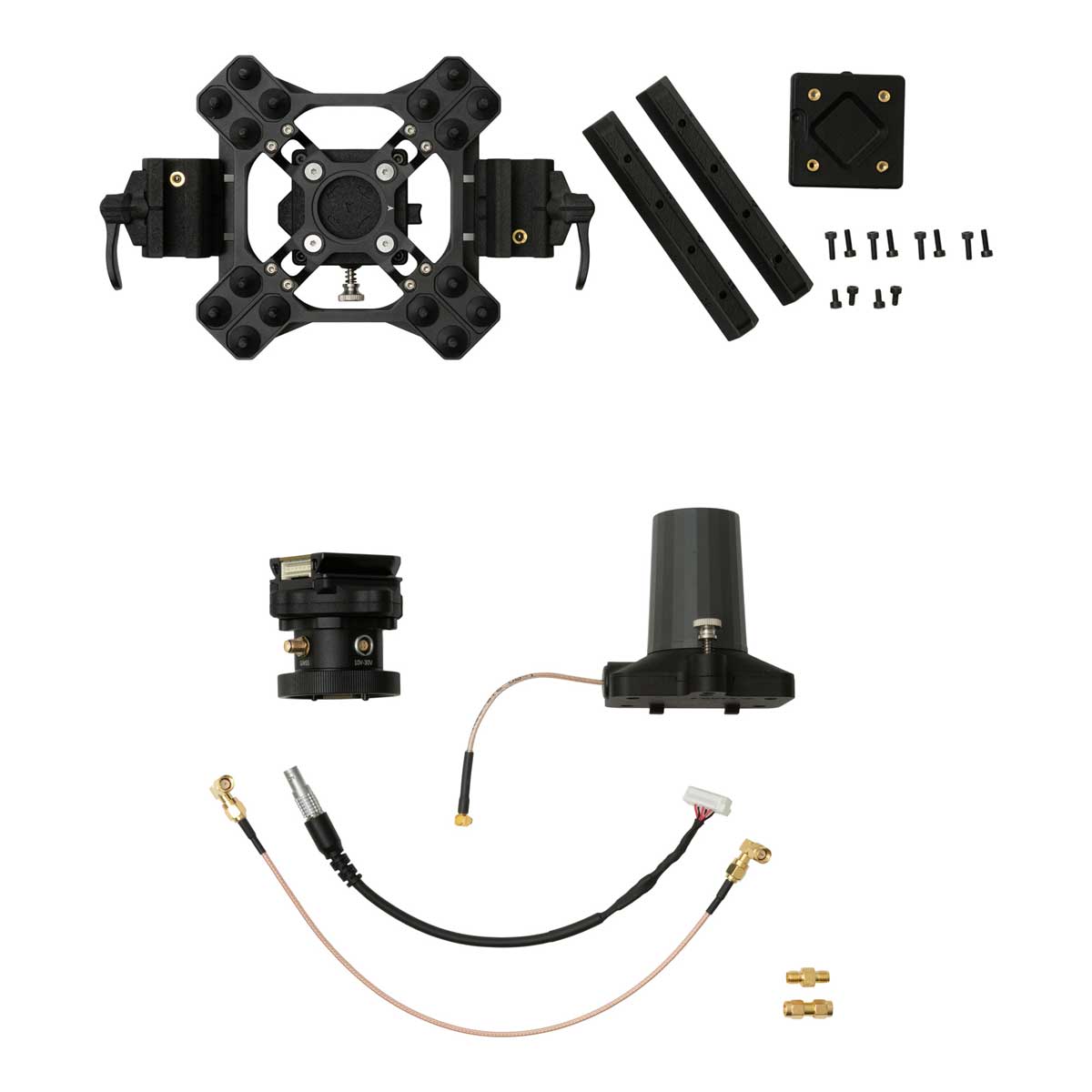

| Rock Robotic R3 Pro | 108701 | Rock Robotic R3 Pro | Includes Skyport-oriented integration components and Tally GNSS antenna support. |
| Inertial Labs RESEPI | 108602 | Inertial Labs RESEPI | Designed for IF800 and RESEPI LiDAR integration. |
| YellowScan Mapper+ | 108112 | YellowScan Mapper+ | Includes mounting, GNSS, power, and damping support. |

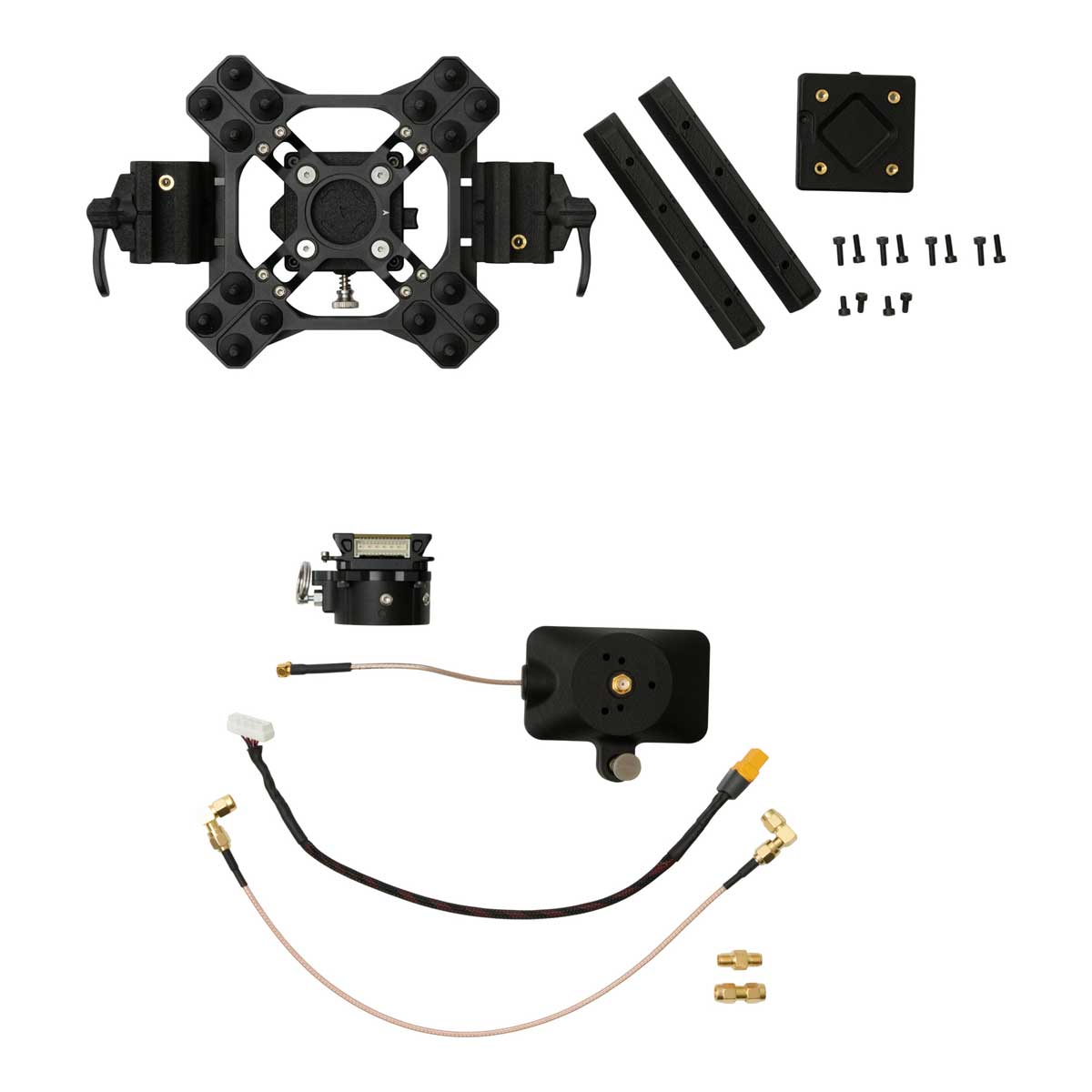

| PLS Recon-XT | 108402 | PLS Recon-XT | Optimized for PLS Recon-XT payload fitment on IF800. |

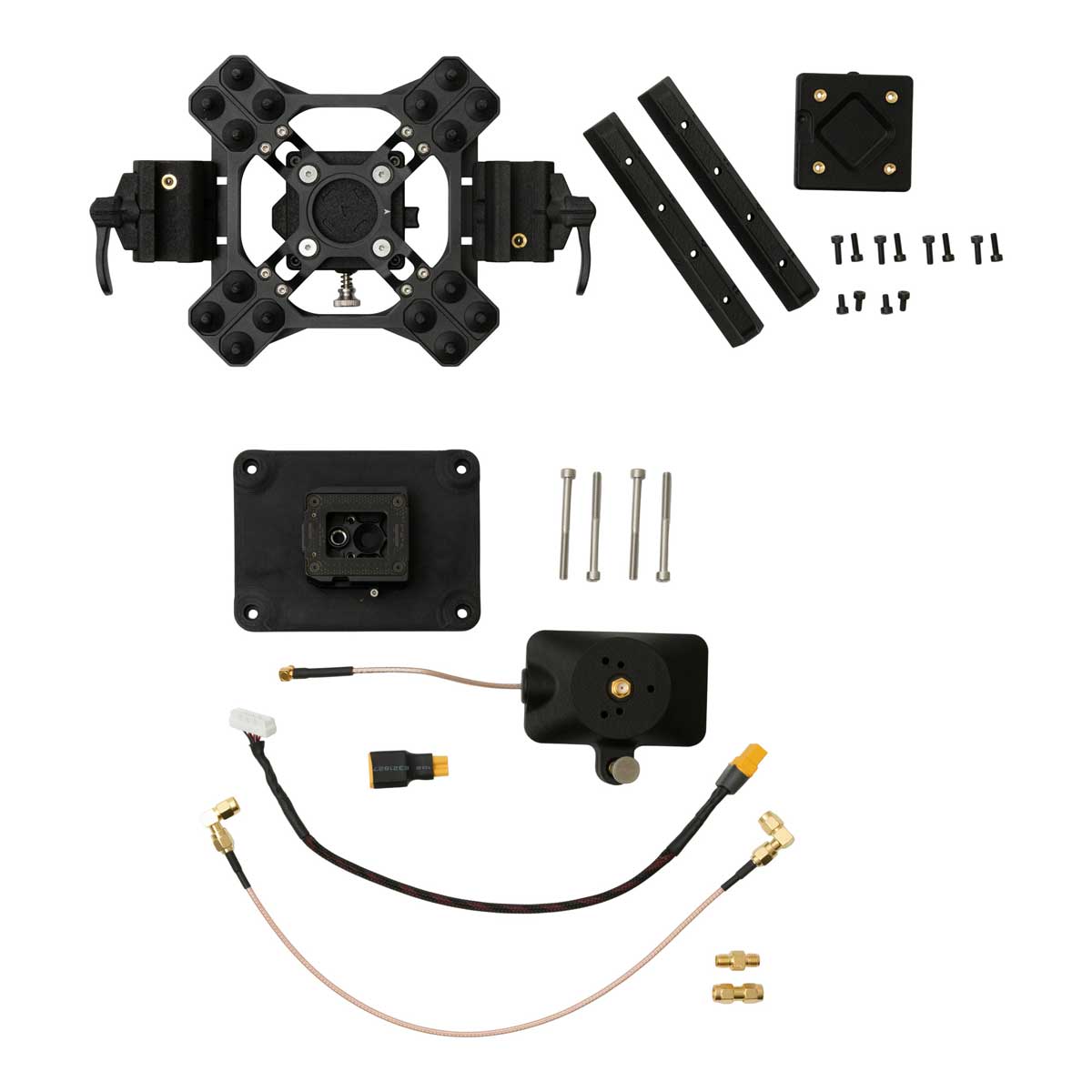

| Riegl miniVUX-3 | 108201 | Riegl miniVUX-3 UAV | Customized for IF800 and Riegl miniVUX-3 UAV payload integration. |
| GeoCue | LDR-GEOC-IF800 | GeoCue LiDAR systems | Requires disclosure of the specific GeoCue LiDAR model before final kit contents are confirmed. |
Related Products & Collections
Build a Complete IF800 LiDAR Solution
A LiDAR-ready IF800 setup may include the aircraft, LiDAR payload, integration kit, batteries, controller, GNSS workflow, software, accessories, and training. MAXSUR can help agencies configure the complete system around the mission.
Explore drone LiDAR payloads for mapping, crash reconstruction, infrastructure, and public safety workflows. Inspired Flight IF800 Tomcat
View the NDAA-compliant medium-lift drone platform these LiDAR kits are built for. Drone & UAS Payload Accessories
Explore batteries, chargers, spare parts, payload adapters, RTK/PPK kits, and UAS accessories.
Ordering Guidance
Confirm Your LiDAR Payload Before Ordering
LiDAR integration kits are not universal. The correct kit depends on the specific payload model, payload interface, GNSS configuration, cable requirements, and mounting needs. Before ordering, confirm the exact LiDAR payload model your team will use with the IF800.
For GeoCue integrations, MAXSUR will need the specific GeoCue LiDAR model before confirming final kit contents.
Common Questions
IF800 LiDAR Integration Kit FAQ
Does this product include the LiDAR payload?
No. These are IF800 LiDAR integration kits only. The LiDAR payload is customer-supplied or sold separately unless specifically included in a configured MAXSUR quote.
Are these kits compatible with all LiDAR sensors?
No. Each kit is designed for a specific LiDAR payload family or model. Use the Shopify product options to select the correct kit for Rock Robotic R3 Pro, Inertial Labs RESEPI, YellowScan Mapper+, PLS Recon-XT, Riegl miniVUX-3, or GeoCue systems.
Why does the GeoCue IF800 LiDAR Kit require model confirmation?
GeoCue LiDAR systems vary by model and configuration. MAXSUR must confirm the specific GeoCue payload model before finalizing the integration kit contents.
What missions are IF800 LiDAR integration kits used for?
These kits support IF800 LiDAR missions such as crash reconstruction, crime scene mapping, GIS data collection, public works documentation, infrastructure inspection, terrain modeling, corridor mapping, and 3D point cloud capture.
Can MAXSUR help configure a complete IF800 LiDAR package?
Yes. MAXSUR can help agencies configure the IF800 aircraft, LiDAR payload, integration kit, accessories, training, and operational workflow for public safety, mapping, infrastructure, and government missions.
