Micro Lens 8mm

Micro Lens 8mm

Request Access or Login

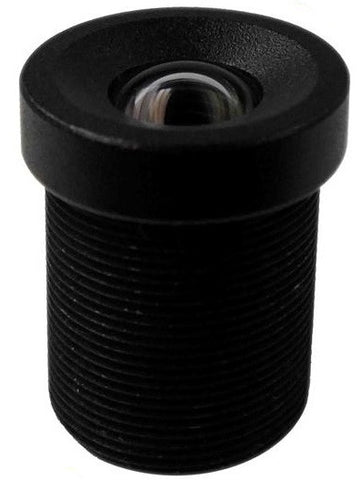

This 8mm micro lens is compatible with a wide variety of board cameras and micro cameras that utilize M12 type threads.   Compatibility with MAXSUR cameras include:

MCML7
MCML7B


Specifications

Sensing Area 1/3 and 1/4 Imager
Focal Length 8.0mm
Back Focal Length 9.89mm
F Stop 1.8 Fixed
Optical Distortion Less than 7 percent
Lens Construction 4 Glass 4 Components
Field Angle 33° 1/3 Inch
MOD 7.87 Inches
Rating Megapixel
IR Pass Thru Yes
Weight 6.5g - 0.22 ounces
Dimensions (Diameter x Depth) 14 x 15.36 (.55 x 0.60 Inches)
