Micro Lens 16mm

Micro Lens 16mm

Request Access or Login

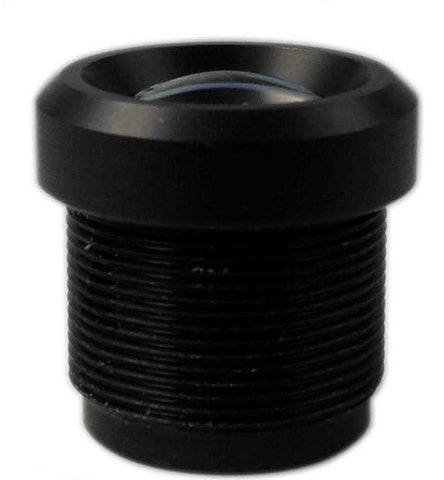

This 16mm micro lens is compatible with a wide variety of board cameras and micro cameras that utilize M12 type threads.   Compatibility with MAXSUR cameras include:

MCML7
MCML7B


Specifications

Sensing Area 1/3 and 1/4 Imager
Focal Length 16.0mm
Back Focal Length 10.1mm
F Stop 2.0 Fixed
Optical Distortion 0.3 Percent
Lens Construction 3 Glass 3 Components
Field Angle 22° 1/3 Inch
MOD 15.74 Inches
Rating Megapixel
IR Pass Thru Yes
Weight 6.0g - 0.21 ounces
Dimensions (Diameter x Depth) 14 x 16.00 (.55 x 0.62 Inches)
