Micro IP Camera with Conical Pinhole Lens or Micro Lens

Micro IP Camera with Conical Pinhole Lens or Micro Lens

Request Access or Login

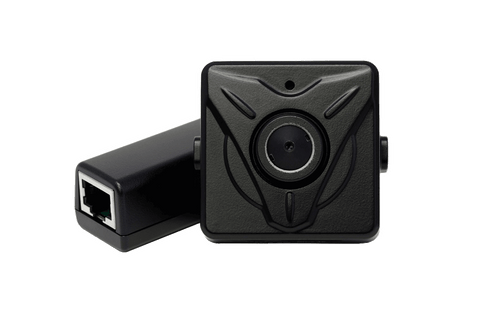

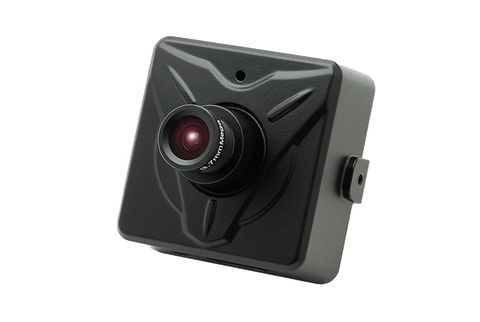

For those who want the absolute best in covert micro cameras, here it is. This camera is available with either a conical pinhole lens or a micro lens for medium range surveillance.  Onboard either version, you'll find a built-in high gain microphone and an onboard recorder that accepts MicroSD cards.

Being IP, POE ready and fully ONVIF compliant, this camera can be connected to NVRs, 4G modems and a host of other IP appliances via a single cable. Resolution is an impressive 2.43 Megapixels and low light performance is an excellent 0.1 lux.



Camera

Image Sensor 2.43 Megapixel, 1/2.8″ SONY Exmor CMOS
Total Pixels (H x V) 2000 x 1241
Day & Night Digital Day & Night
Min. Illumination 0.1 Lux / F2.0
Shutter Speed 1/30 ~ 1/8000
Lens Focal Length Board Lens: 3.7 mm (3 MP)
Pinhole Lens: 4.3 mm P4 (1.3 MP)
Lens Type Fixed Board or Pinhole Lens
Video Maximum Resolution H.264: 1920 x 1080 (16:9)
MJPEG: 1280 x 720 (16:9)
Frame Rate H.264: 30fps / MJPEG: 30fps
Compression H.264 / MJPEG
Streaming Dual-Stream at different frame rate and bandwidth
Digital Slow Shutter Off, 2x, 4x (Auto)
Image Settings
Brightness, Contrast, Saturation, Sharpness, White balance, Exposure control, Image rotation, Text and image overlay, Privacy masking, BLC, D-WDR, 3D DNR
Audio Streaming One-way
Compression G.711, G.726
Input / Output Internal Microphone
Network LAN Ehternet 10/100 Base-T (RJ-45 Type)
Security Multiple user access levels with password protection, HTTPS(SSL)
Protocol IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP, ARP, DNS, DDNS, HTTPS, UPnP
ONVIF Compliant Yes
Interface OS: Windows XP / Vista / 7 Browser: Internet Explorer
Record Schedule Continuous, Motion, Sensor, Pre & Post Alarm
Intelligent Video Video Motion Detection Yes
General Processors CPU: ARM 1136J-S
Memory RAM: 256MB, Flash: 256MB
Power PoE class 3 (IEEE 802.3af)
DC 12V 220mA
Interface Service video connector
Power (DC 12V) Input
Status LED
Local storage MicroSD/SDHC up to 32GB
Operating Temperature 14 °F ~ 122 °F (-10 °C ~ 50 °C)
Conditions Humidity 20 ~ 80% RH (No Condensing)
Dimension 2 x 1.9 x 1.4 inch (51.5 x 47.5 x 35 mm)
Weight 0.2 lbs (110 g), (Including PoE Active Splitter)
