High Gain GSM Antenna for the TAC940 Camera

High Gain GSM Antenna for the TAC940 Camera

Request Access or Login

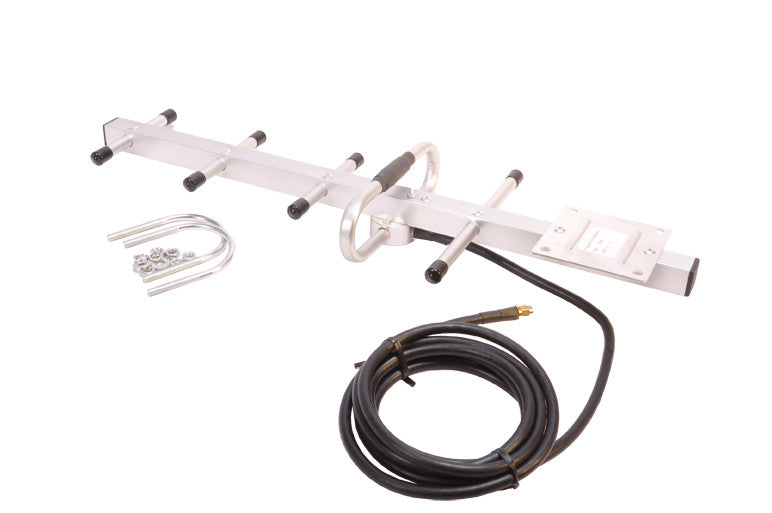

This antenna is designed to increase GSM cellular radio reception for the TAC940 field surveillance camera.  Although designed for the TAC940, it can be used with almost any product operating in GSM bands.  With the YAGI type antenna structure, it is very directional and makes a tremendous difference in rural operations.

Note:  For covert operations, the MAXSUR team recommends priming and painting the antenna to match regional environment.  We do not recommend using camo tape as some tapes may change RF performance.

GSM Frequency  824 to 960 MHz
RF Gain 9dBi
VSWR <1.45
Dimensions  18.5" x 6" x 2.2"
Cable RG58 96"
Termination SMA Male
