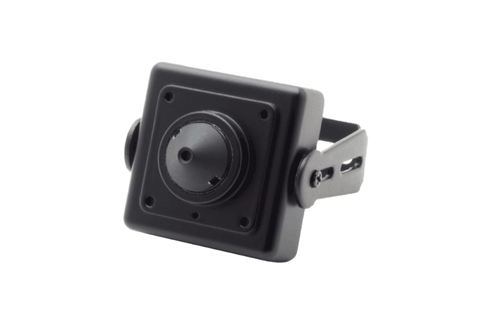

HD Covert Pinhole Camera with 4.3mm Lens
HD Covert Pinhole Camera with 4.3mm Lens
This HD pinhole camera can see through openings of just 1/16" in diameter without vignetting. Because the lens in conical, you can easily install it into thicker material such as drywall, drop tile ceilings, automative trim, and more.
Resolution is full HD 1080p at 30fps, and is compatiable with an industry standard recorder that acccepts TVI signals. Through the menu, users can custom configure almost every facet of camera functions, including image FLIP for those unique circumstances.
SPECIFICATIONS| Image Device | 1/2.7” PROGRESSIVE SCAN CMOS |
| Effective Pixels | 1930 (H) x 1088 (V) |
| Unit cell size | 3.0um (H) x 3.0um (V) |
| Video output mode | HD-TVI : 1080P 30fps(25fps) |
| Transmission Distance | HD-TVI : Color 300m@RG59 , BW 500m@RG59 |
| Menu Access | Up the Cable control |
| Shutter speed | Auto, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/3000, 1/10000 |
| BLC | BLC (1~16 selectable) |
| HLC | Adjustable area, 0~255 for mask and threshold values |
| AGC | 1~5 (Max. 30dB) |
| Flickerless | Off, 50Hz, 60Hz |
| 2DNR | AUTO |
| White Balance | AUTO indoor / AUTO Outdoor / USER / PUSH / Manual |
| Lens | Board type 3.7mm / Pinhole type 4.3mm |
| Day&Night | Auto, color, B/W |
| Privacy Zones | Two, with adjustable size and position |
| Image Control | Flip, Mirror, Gain, Hue, Sharpness, Contrast |
| Temperature/Humidity (non condensing) | Operation : 5°F~122°F(-15°C~50°C) Storage : -4°F~140°F(-20°C~60°C) Humidity less than 80% |
| Power Consumption | DC12V ±10% Max.100mA |
| External Control | UTC (Up The Cable OSD Menu Control) |
| Dimension | Body 1.18” x 1.18” (30mm x 30mm) Depth: w/board lens 1.15” (29.3mm) w/pinhole .74“ (18.8mm) |
| Mounting Bracket | 2-axis bracket included; adds .05”~.4” to height, .05”~.9” to depth |
| Video and Power Cable | Detachable; >23” long (58.5cm) |
| Weight | Approx. 30g / 1 oz. plus cable |
