MAXSUR  |  SKU: DMC21-IP-212

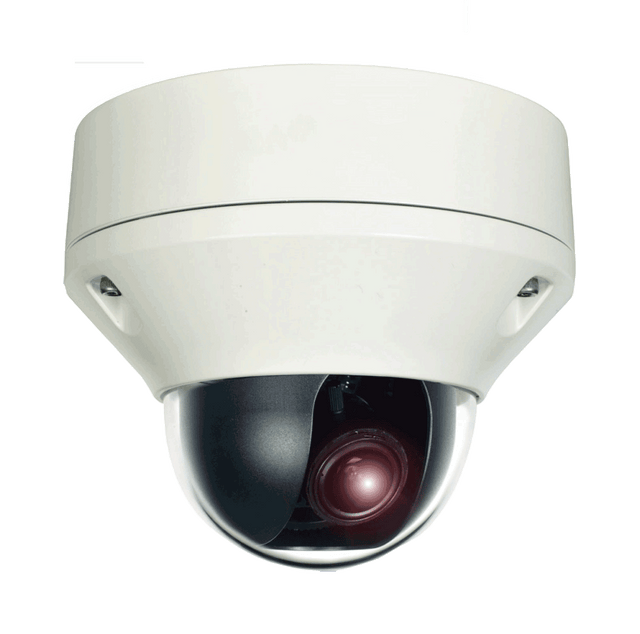

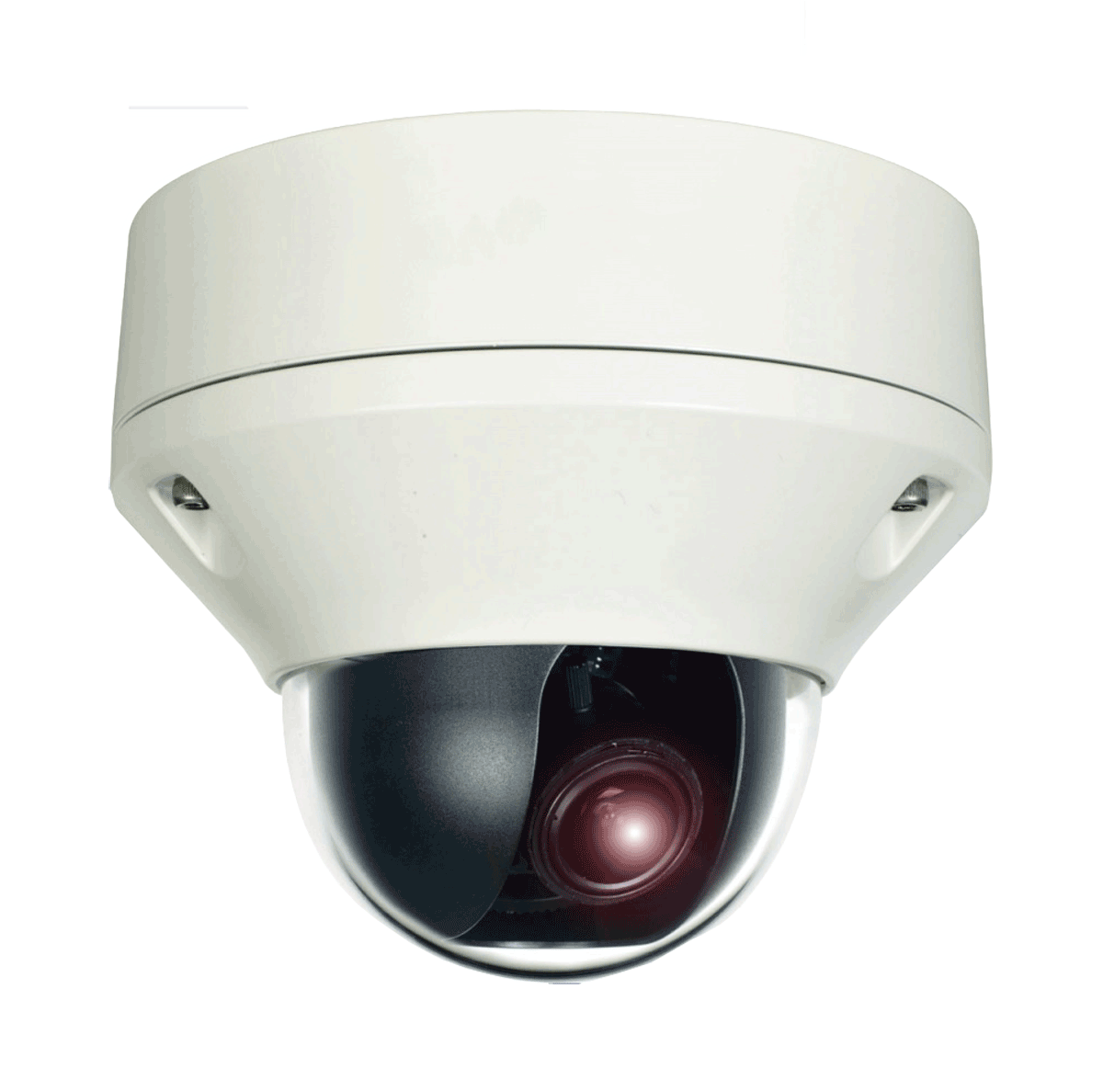

Weatherproof 2.1MP Dome Camera w/2.8 to 12mm Lens

$ 322.00
INFRARED

Description

This weatherproof IP security camera is perfect for those wanting the absolute utmost in perfomance.  Resolution is a sharp 2.43 megapixels, and for management of low bandwidth environments, four different streams are available to match every need.

Behind the asperhical 2.8 to 12mm vari-focal lens, is a SONY progressive scan imager that conquours tough lighting common to entry doors, and provides smooth discernable footage in low light conditions.

The housing is vandal resistant, and with a IP68 rating, it will provide years of realiable indoors or outdoors.

Specifications
Camera
Image Sensor 1/2.8" SONY 2.43M Progressive Scan CMOS
Total Pixels (H x V) 1920x1080 2.1 Megapixel @ Maximum Resolution
Day & Night Electronic Day/Night
Min. Illumination .2lux @ F2.5, DSS off .05lux @ DSS max   DSS levels above 4X should be used only after careful consideration of scene dynamics
Shutter Speed 1/30s ~ 1/8,000s
DWDR/BLC DWDR: Off/Auto, Weak, Medium, Strong BLC: User controlled area and level
White Balance Auto, Hold, Incandescent, D4000, D5000, Sunny, Cloudy, Flash, Under water
3D DNR Level Adjust 0~255
DSS Off/Auto
Day/Night Modes Auto, color, B/W, with OSD controlled level and delay
Flickerless Off, 60Hz, 50Hz
Lens
Focal Length 2.8~12mm
Lens Angle 1920 × 1080: Angle of view: 98.5°(2.8mm), 79°(4mm), 49°(6mm), 23.2°(12mm)
Lens Type Manual Varifocal, DC-iris with OSD control
Video
Compression H.264 Main Profile & MJPEG
Supported Resolutions H.264: 1920x1080~320x240 MJPEG: 1920x1080~320x240
Maximum Frame Rates 30FPS H.264 @ MJPEG
Bit Rate Choice of constant or variable bit rate 1.4~8Mb/s I frame interval 1~30
Streaming Four streams at different frame rates and bandwidth
Image Settings Brightness, Contrast, Saturation, Sharpness, White Balance, Exposure Control, Image rotation, Text and Image overlay, Privacy Masking, BLC, AGC, D-WDR, 3D DNR, DSS (Slow Shutter Mode)
Audio
Input Wire Leads; OSD volume control
Input Codec G.711 a-law, µ-law 64Kb/s; G.726 variable B/W
Output Wire Leads; OSD volume control
Output Codec G.711 µ-law 64Kb/s
Network
LAN Ethernet 10/100 Base-T (RJ-45 Type) with weather sealed shell
Security Multiple user access levels with password protection; IP address filter (Deny/Allow)
Protocol IPv4, HTTP, HTTPS, TCP, RTSP, RTP, UDP, IGMP,RTCP, SMTP, FTP, ICMP, DHCP, ARP, DNS, DDNS, UPnP, SSL
Network Storage Video upload to PC, FTP or NAS
VMS Compatibility ONVIF Profile S; Open API for SDK integration
Supported Browsers Internet Explorer (with ActiveX plug-in) support for video format change, stream play/stop, Snapshot, Instant recording (300 s. max.), Screen Magnification, Full Screen Display; Live view image popup from within Configuration menu to check image without exiting menus.
Intelligent Video
Video Motion Detection With arming schedule and multiple actions: notify NVR, send email, upload to FTP, trigger alarm output
System Integration
API ONVIF Profile S; Open API for integration by API, SDK
Alarm & Event
Alarm Triggers Intelligent video Motion Detection, Network Fail, SD Card Scheduling, Reboot
Alarm Events Notify NVR, send email (with SSL server support), upload to FTP, trigger alarm output
Micro SD Card Slot Up to 32Gb, SDHC support
General
Angle Adjustment Pan: 0~360° Tilt: 0~75° Rotate: 0~360°
Power PoE class 3 (IEEE 802.3af) 2.5W 12VDC +/- 10% 210mA
Interface 8P/8C RJ-45F with weather seal for Network and PoE Power (DC 12V) Input (3.5mm coaxial plug) Service Video Output (CVBS)
Environmental IP68 (Water Proof)
Operating Temperature -14 °F ~ 122 °F (-10 °C ~ 50 °C)
Dimension 4.21" diameter/3.82" high [107mm dia./97.1mm high] Bubble 3.15” diameter [80mm]
Weight 1.67 lbs./760 grams
Approvals
Conformity FCC, CE
