Public safety mapping & scene reconstruction
An impressive 3D model is not automatically a reliable measurement record. For law enforcement documenting a crime scene or reconstructing an accident, the important questions are whether the data lines up, how its accuracy was checked, and whether another capture can be tied back to the same scene.

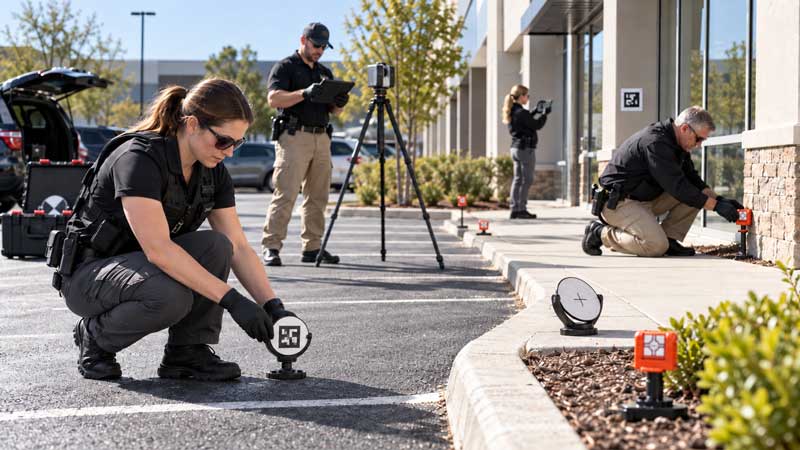

Mapping targets for LiDAR and photogrammetry help address those questions by giving a mapping workflow identifiable reference locations. Used with appropriate measurements, compatible software, and sound field procedures, they can improve registration, connect indoor and outdoor captures, and make follow-up documentation more repeatable.
These are the challenges behind MAXSUR’s webinar with Rothbucher Systems, Make Your 3D Scene Models More Accurate, Repeatable & Defensible. The lesson is broader than any one scanner or target: plan how the scene will be connected and checked before collecting the data.
The practical benefit: targets help a team identify the same point across different views, instruments, or visits. They support the workflow; they do not replace good capture, accurate control measurements, or independent verification.
What do mapping targets actually do?
LiDAR measures ranges to build a point cloud. Photogrammetry reconstructs a scene from overlapping photographs. Both can produce useful 3D documentation, but separate captures still need a reliable relationship to one another. That relationship becomes especially important when a scene spans several rooms, a long roadway, or both ground-level and aerial views.
A target supplies a recognizable location. What that location does depends on how it is measured and used:
Registration or tie point
A shared point used to help align images or scans. It may be recognizable in several captures without having independently measured coordinates.
Control point
A point with known coordinates used to constrain the model within a defined reference system. A photogrammetry ground control point, or GCP, is an example.
Checkpoint
A measured point reserved for checking the result rather than using its coordinates to fit the model. Comparing its known and reconstructed positions helps assess accuracy.
Fixed or resumption point
A physical reference that can be identified or occupied again. It supports return visits when its location remains stable and its relationship to the original work is documented.
A black-and-white target is not automatically a surveyed control point. Likewise, a model that fits the points used to build it has not necessarily passed an independent accuracy check.
Technical background: PIX4D distinguishes control points, manual tie points, and checkpoints; its checkpoint guidance explains the independent quality-control role.
Five mapping problems law enforcement should plan for
The webinar organizes the discussion around five familiar field problems. Each illustrates why the reference-control plan deserves attention alongside the scanner, camera, or drone.
01 “We captured the data. Why doesn’t it line up?”
Separate scan positions and camera views can look convincing on their own while failing to form a coherent scene. Inconsistent target placement, insufficient shared reference points, and different control methods make registration harder to establish and explain.
Recognizable, well-distributed targets give the team deliberate connections between captures. When several instruments are involved, measured common control can tie them to the same reference system instead of leaving alignment to an undocumented visual adjustment.
Planning example: a collision team documents the roadway from several scanner positions and adds close-range photographs around a vehicle. Shared reference locations help connect those captures without treating the vehicle itself as a permanent reference.
02 Large scenes create drift and processing headaches
A long mobile or SLAM scan can accumulate small tracking errors along its path. Repetitive rooms, plain walls, and extended corridors can complicate the work. This is a particular concern when a team needs one consistent model rather than several locally convincing sections.
Compatible coded targets, including AprilTags, can help supported software recognize previously observed locations and strengthen loop closure—the process of reconnecting a scan to an area already captured. They are not a universal drift fix, and a laser scanner does not automatically interpret an AprilTag just because it is visible.
For a concrete software example, Dot3D explains how loop closure and AprilTags support scan optimization. Target placement still needs to follow the chosen system’s procedures.
03 Indoor and outdoor models are hard to combine
A crime scene may extend from a room, through a doorway, and into a driveway or parking area. An indoor accident may involve a warehouse aisle, loading dock, and exterior approach. Capturing each area separately does not establish how the resulting models connect.
The webinar highlights doorways and thresholds as potential weak links, particularly where indoor captures lack GNSS/GPS reference. Plan shared control across those transitions and enough overlapping observations to make the connection checkable.
Purpose-built mounting options can help. Rothbucher’s double-sided RSL312 target, for example, is intended for scanning and photogrammetric connections between indoor and outdoor areas. Its value is in the planned shared reference, not an assumption that every instrument can measure reliably through glass. Follow the specified mounting and measurement geometry.
04 LiDAR and photogrammetry need common control
LiDAR geometry and photographic detail can complement one another. A drone may provide broad scene coverage while a terrestrial scanner or ground-camera workflow documents areas that aerial views cannot see clearly.
To combine the results responsibly, establish their reference relationship before capture. Shared control helps connect scale, orientation, and position. A suitable processing workflow is still necessary; placing the same target in two datasets does not make every file format or software combination interoperable.
For outdoor work, select targets that can actually be resolved at the planned capture distance. A small marker visible in a close-range photograph may not be useful in an aerial LiDAR dataset. Confirm target design, visibility, point density or image resolution, and software support for the intended mission.
05 The team needs to return after the scene changes
Vehicles are removed, roads reopen, rooms are cleaned, and temporary targets disappear. A later visit may be needed to document additional context or compare new measurements with the original capture.
Stable fixed points or documented resumption points can preserve the reference framework after the original targets are removed. Before relying on them again, verify that the points and supporting surfaces have not moved or been altered.
Important distinction: returning to the same coordinates can help connect a later survey to the original model. It cannot recreate evidence that was never captured, and a later scan should not be presented as the unchanged original scene.
Choose a target system around the workflow
The useful question is not simply, “Which targets should we buy?” It is, “How will our team establish, observe, check, and revisit its reference points?”
This is where the design of a modular system such as Rothbucher’s becomes relevant. Its “One Point Fits All” concept uses a common physical reference with compatible targets, prisms, and adapters. An agency can plan around a reference network rather than creating unrelated points for every instrument.
Compatibility is specific, not universal. Rothbucher’s tilting-axis overview groups components by reference height. Match the correct components and account for the specified heights, offsets, and instrument settings; do not assume that swapping any target head preserves the same measurement point.
| Target or accessory | Practical benefit | What to verify |
|---|---|---|
| Laser scanner targets | Practical benefitProvide identifiable centers for linking supported scan positions indoors or outdoors. | What to verifyScanner recognition, usable distance, orientation, and target-center definition. |
| AprilTags | Practical benefitProvide coded references for compatible mobile mapping, scan linking, and loop-closure workflows. | What to verifySoftware support, unique tag IDs, visibility, and the required capture procedure. |
| Ground and aerial mapping targets | Practical benefitSupport identifiable control or check locations across a roadway or larger outdoor scene. | What to verifySuitability for imagery, LiDAR, or both at the actual operating range and resolution. |
| Fixed and resumption points | Practical benefitAllow a documented reference location to be occupied again for another instrument or visit. | What to verifyStability, installation permission, coordinates, mounting geometry, and condition on return. |
| Indoor reference adapters | Practical benefitSuitable power-socket adapters offer repeatable interior placement without leaving a target face installed. | What to verifyCountry-specific outlet compatibility, manufacturer safety instructions, and fixture stability. |
| Temporary mounts and stands | Practical benefitSuction mounts, magnets, clamps, straps, and floor stands expand placement options on varied scenes. | What to verifySecure attachment, surface suitability, safe access, and movement during capture. |
The webinar illustrates this flexibility with window targets, outlet reference points, clamps on structural features, and straps around poles or trees. These examples show different ways to establish a reference, not proof that every convenient surface is stable enough for every measurement task.
Review MAXSUR’s mapping targets and reference-control options in the context of the instruments and software your agency actually uses.
LiDAR mapping systems
Explore capture options alongside the reference-control and verification plan, rather than selecting the sensor in isolation.
PIX4D photogrammetry workflows
Consider processing, control, quality review, and deliverables as part of the same scene-documentation capability.
For aerial coverage, the same planning applies to public safety drones and UAS solutions: match the aircraft and payload to the scene, then confirm how the resulting data will connect to ground-level observations.
A practical reference-control workflow for investigators
Use the following as a planning framework, then adapt it to validated agency procedures and the requirements of the equipment and software.
- Define the deliverable. Decide what must be documented or measured, the acceptable error, and whether the work needs an external coordinate reference or a documented local scene framework.
- Plan the connections. Identify scan positions, aerial and ground views, indoor/outdoor transitions, and possible return visits. Select targets that the intended capture methods can resolve.
- Establish and document references. Record point IDs, placement photographs, measurements, coordinates where applicable, and relevant mounting heights or offsets. Keep equipment and targets clear of evidence and avoid changing or contaminating the scene.
- Capture with deliberate overlap. Keep targets stationary and visible through the required observations. Follow the system’s guidance for image overlap, scan overlap, and mobile-mapping loop closure.
- Check before releasing the scene. Review coverage and alignment while return access is still possible. Reserve suitable independent checks rather than fitting the model to every measured point.
- Preserve the work. Retain original captures, reference records, processing settings, quality reports, and the relationship between original and later datasets under the agency’s evidence-handling procedures.
What makes a 3D scene model more defensible?
Accuracy, repeatability, and defensibility are related, but they are not interchangeable. Accuracy concerns agreement with a reliable reference. Repeatability concerns consistency when work is repeated. A repeatable workflow can still contain a consistent error.
In this context, a more defensible model is one whose collection, reference control, processing, checks, and limitations can be explained and reviewed. Targets help provide traceable connections between observations, but no target brand or attractive visualization by itself establishes accuracy or legal admissibility.
A useful documentation package should make clear which features were captured, which measurements were independently checked, what was added during reconstruction, and what uncertainty remains. The goal is not merely to show a model. It is to explain why the model is suitable for its stated purpose.
Watch the full MAXSUR webinar
Make Your 3D Scene Models More Accurate, Repeatable & Defensible
Join MAXSUR and Rothbucher Systems for the problem-first discussion behind this guide: captures that do not line up, drift across larger scenes, indoor/outdoor connections, shared LiDAR and photogrammetry control, and returning after a scene changes.
Plan funding around the complete mapping capability
A mapping budget should account for more than the scanner or drone. Depending on the proposed workflow, it may need to address targets, control-measurement equipment, mounts, software, training, data handling, and validation.
When evaluating a funding opportunity, describe the investigative need and the complete capability required to meet it. Connect the request to specific outcomes, such as consistent scene documentation and reviewable measurements, rather than promising an unverified accuracy or time-saving figure.
Start with the MAXSUR Public Safety Grant Resource Center to identify potential programs. Confirm current applicant eligibility, allowable costs, deadlines, matching requirements, and procurement conditions in each funding notice. Mapping equipment and accessories are not automatically eligible under every grant.
Frequently asked questions about mapping targets
Does every crime scene or crash scene need mapping targets?
Not every validated workflow needs the same target arrangement, and some systems can align captures without placed targets. Consider the required accuracy, scene geometry, independent checks, mixed instruments, and return visits. The important decision is how the team will establish and verify the reference relationship.
Can the same targets work for LiDAR and photogrammetry?
Some target systems support both, but confirm the particular target, capture distance, mounting geometry, and processing workflow. A shared physical reference can also use different compatible target heads for different instruments. A target visible in imagery is not automatically a usable LiDAR reference.
Can targets help with indoor mapping where GPS is unavailable?
Yes. Shared references can help connect indoor captures within a documented local coordinate framework. Connecting that model to an outdoor or geographic reference requires an established relationship to that additional control; the target alone does not provide a GPS position.
How many mapping targets should an agency use?
There is no single count suitable for every scanner, software package, or scene. Follow the supported workflow and plan target distribution, visibility, overlap, transition areas, and independent checks. A cluster of targets in one convenient corner is not a substitute for a scene-wide reference plan.
Are AprilTags the same as ordinary laser scanner targets?
No. AprilTags carry coded identities that compatible software can recognize. Traditional scanner targets may instead provide a distinct geometric center. Select the pattern and target format your system supports, and avoid duplicate tag identities where the workflow requires unique codes.
Can printed targets work instead of a reusable target kit?
Printed targets can be useful in supported workflows; Dot3D, for example, provides printable AprilTags. A reusable system may offer more suitable mounting, repeatable positioning, or field durability. Evaluate legibility, flatness, stability, and compatibility rather than assuming either option is universally better.
Better models begin with a better reference plan
For a room, a roadway, or a scene that crosses both, mapping targets are worth considering because they address a fundamental investigative need: connecting what was captured to a reference that can be checked and understood later.
Start with the workflow, then choose the tools that support it. Explore mapping targets and reference-control systems at MAXSUR, or discuss your existing instruments and scene requirements with the team at ops@maxsur.com.
