Covert Micro Cameras with SONY SUPER HAD II Chipset
Covert Micro Cameras with SONY SUPER HAD II Chipset
This covert video micro camera is a tried and true performer both day and night. The built-in SONY Super HAD II (Hole Accumulation Diode) chipset is optically improved right down to chip level to make use of all available light. To further improve low-light operation, the covert camera also an advanced digital noise reduction, making video crisp.

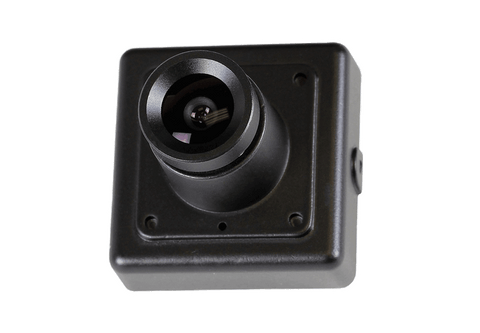

The covert video camera is available in two lens styles, a microlens and a conical shaped pinhole lens for the ultimate in stealth.
SPECIFICATIONS| Signal Format | NTSC | PAL | ||||||||||||||||
| Image Sensor | 1/3" 960H SONY SuperHAD CCD II | |||||||||||||||||
| Scanning System | 2 : 1 Interlace | |||||||||||||||||
| H Resolution. | 750TV Lines | |||||||||||||||||
| Scanning Frequency | 15.734KHz(H),59.94Hz(V) | 15.625KHz(H),50Hz(V) | ||||||||||||||||
| Total Pixels | 1020(H) X 508(V) | 1020(H) X 596(V) | ||||||||||||||||
| Effective Pixels | 976(H) X 494(V) | 976(H) X 582(V) | ||||||||||||||||
| Electronic Shutter | 1/60 ~ 1/100,000 sec | 1/50 ~ 1/100,000 sec | ||||||||||||||||
| Sense up | Off / Auto | |||||||||||||||||
| S/N Ratio | More than 50dB(AGC OFF) | |||||||||||||||||
| Min. Illumination | 0.1 lx (F2.0, DSS Off) / 0.01 lx (F2.0, DSS On) | |||||||||||||||||
| Sync System | Internal | |||||||||||||||||
| Gamma | r= 0.45 | |||||||||||||||||
| Video Output | 1.0 Vp-p Composite (75Ω) | |||||||||||||||||
| OSD | Built in (Inner Key / Joystick) | |||||||||||||||||
| ATR | OFF / ON (Level adjustable) | |||||||||||||||||
| White Balance | ATW / PUSH / USER1 / USER2 / MANUAL / PUSH-LOCK | |||||||||||||||||
| 3DNR | Level Adjust | |||||||||||||||||
| Function | MIRROR / FREEZE / BRIGHTNESS / CONTRAST / SHARPNESS / HUE / GAIN / DIGITAL ZOOM / HLC | |||||||||||||||||
| Privacy Masking | 15 Zones (Polygon) | |||||||||||||||||
| Motion Detection | 4 Zones | |||||||||||||||||
| Lens | Fixed Board, Pinhole, Varifocal Lens | |||||||||||||||||
| Language | ENGLISH / SPANISH / RUSSIAN / PORTUGUESE / GERMAN / FRENCH / CHINESE / JAPANESE | |||||||||||||||||
| Operating Temperature | -15°C~50°C (5°F~122°F) | |||||||||||||||||
| Storage Temperature | -20°C~60°C (-4°F~140°F) | |||||||||||||||||
| Humidity | Less than 80% | |||||||||||||||||
| Power Consumption | 12VDC ±10% Max. 110mA | |||||||||||||||||
| Weight | Approx. 35g | |||||||||||||||||
| External Control | UTC, RS485(PELCO-D) | |||||||||||||||||
| Dimension(mm) | 30(W) x 30(H) | |||||||||||||||||
