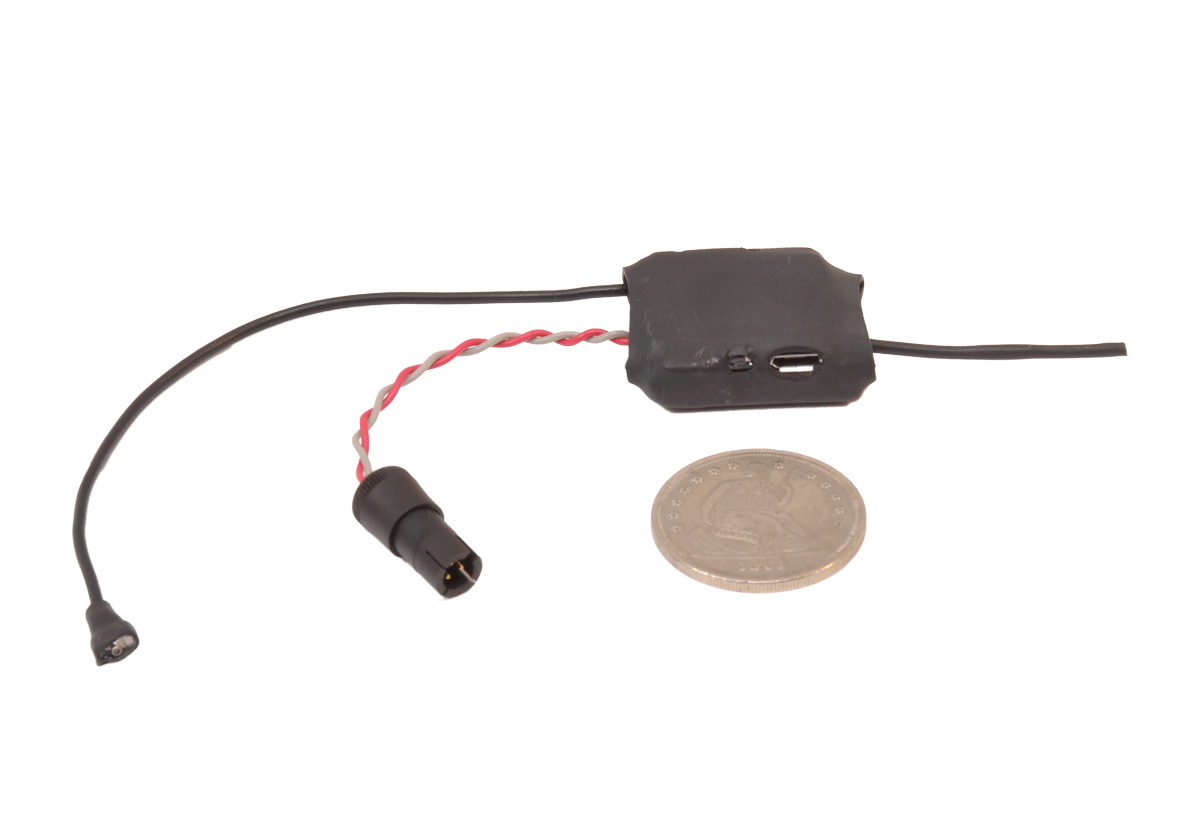

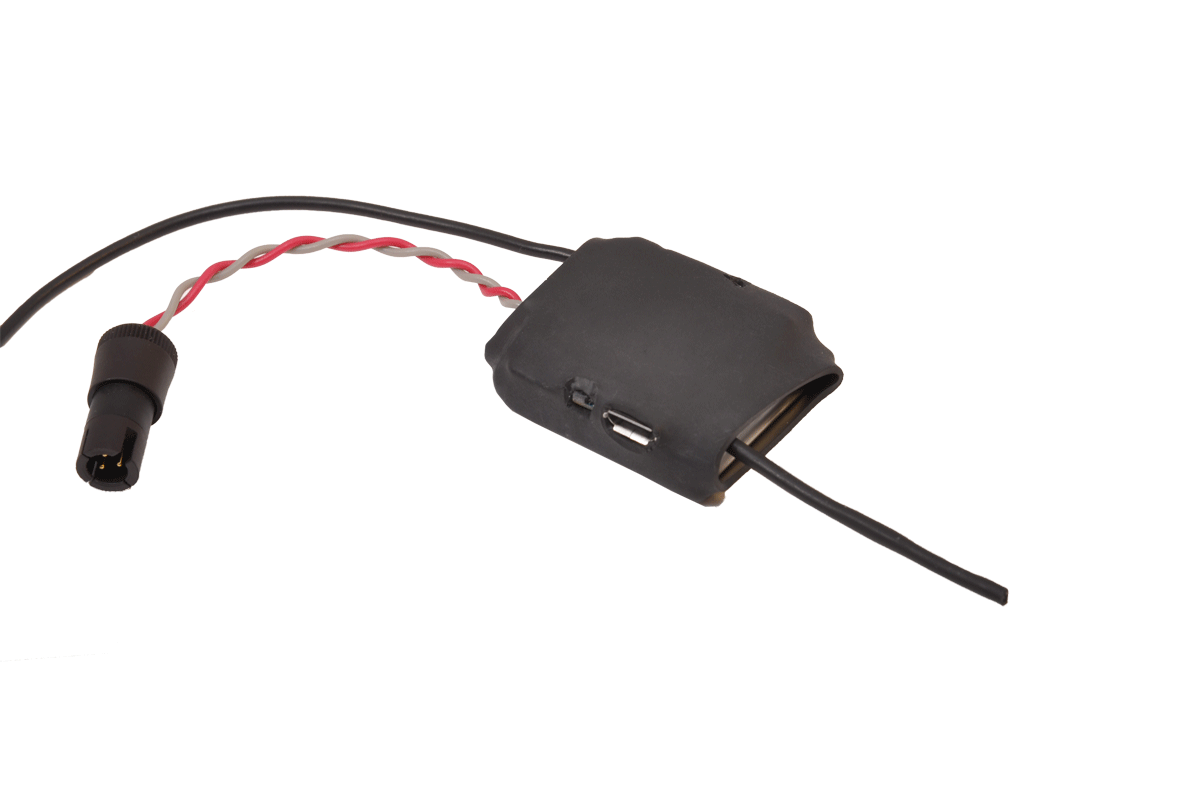

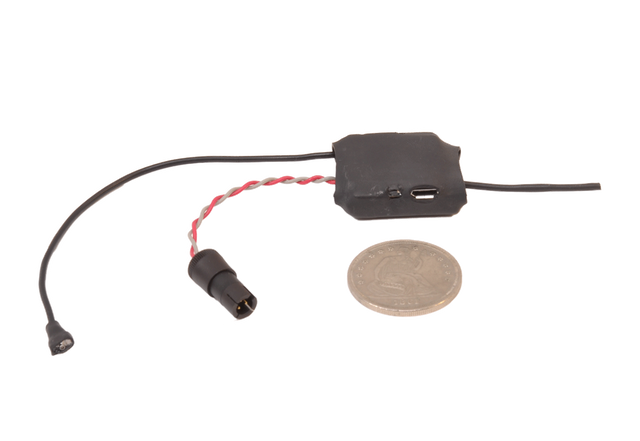

Harpoon - Micro Worldwide GSM Audio Transmitter with Remote Control

Whether the mission requires body-worn use, vehicle or structure insertion, this micro GSM transmitter is an excellent choice worldwide with the true, quad-band compatibility. Advanced, but easy to use features makes this transmitter ideal for both short and long term critical operations.

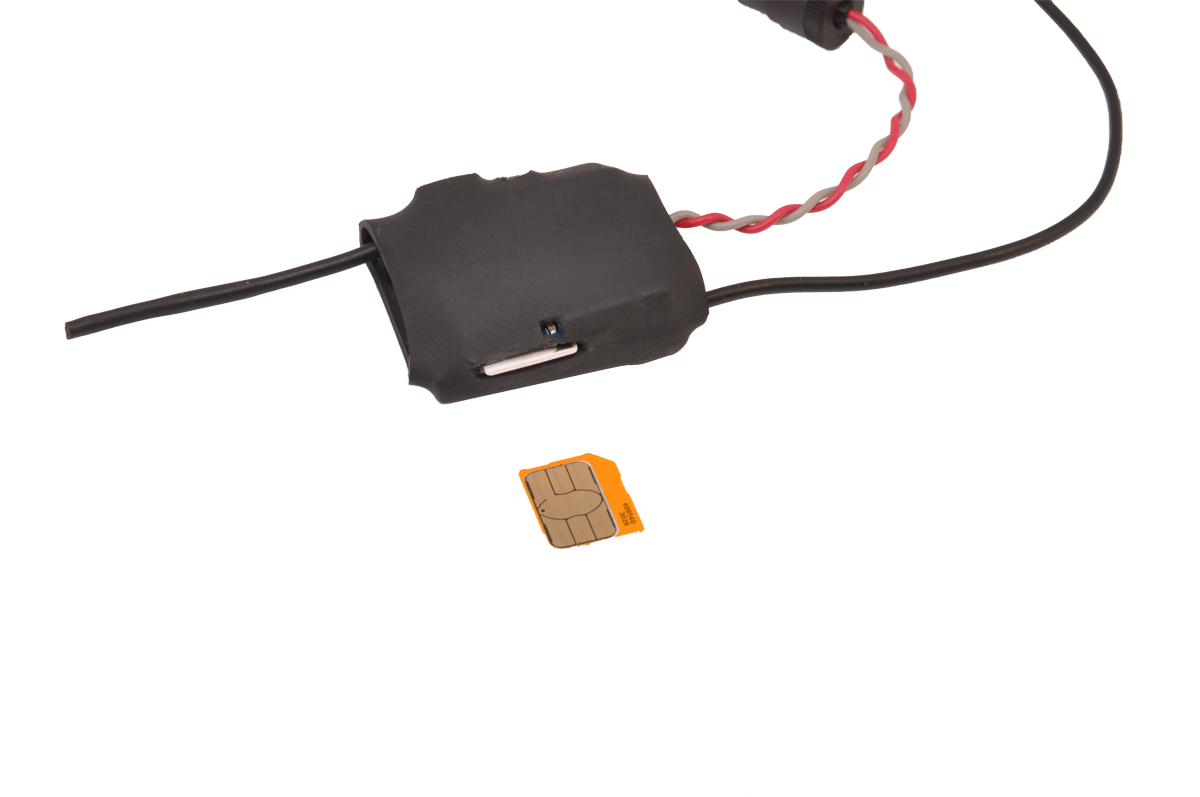

Right out the box, this GSM transmitter can be placed into operation in just minutes. It works with nearly any SIM card and because its compatible with US cellular carriers, you won’t get systematic dropouts common to GSM devices from Asia.

The onboard DSP (Digital Signal Processor) produces high quality evidence with ambient noise reduction, echo cancellation and selectable high & low frequency noise filters. Microphone sensitivity has three level adjustments that can be remotely controlled.

The GSM transmitter has a sleek profile of just 0.41” which is easy to conceal under clothes, trim panels, junction boxes, etc… When active, the transmitter consumes a minute 60mA and 30mA in sleep mode which allows for days of operation using common alkaline batteries or indefinite operation in the case of vehicles and buildings.

For long term operations, this transmitter can be easily programmed to activate & auto dial upon detecting noise (99 selectable detection levels) or be programmed to activate when the built-in accelerometer detects movement (9 selectable detection levels). To ensure security, the GSM transmitter can be programmed to only recognize a specific phone and allow remote monitoring and programming.

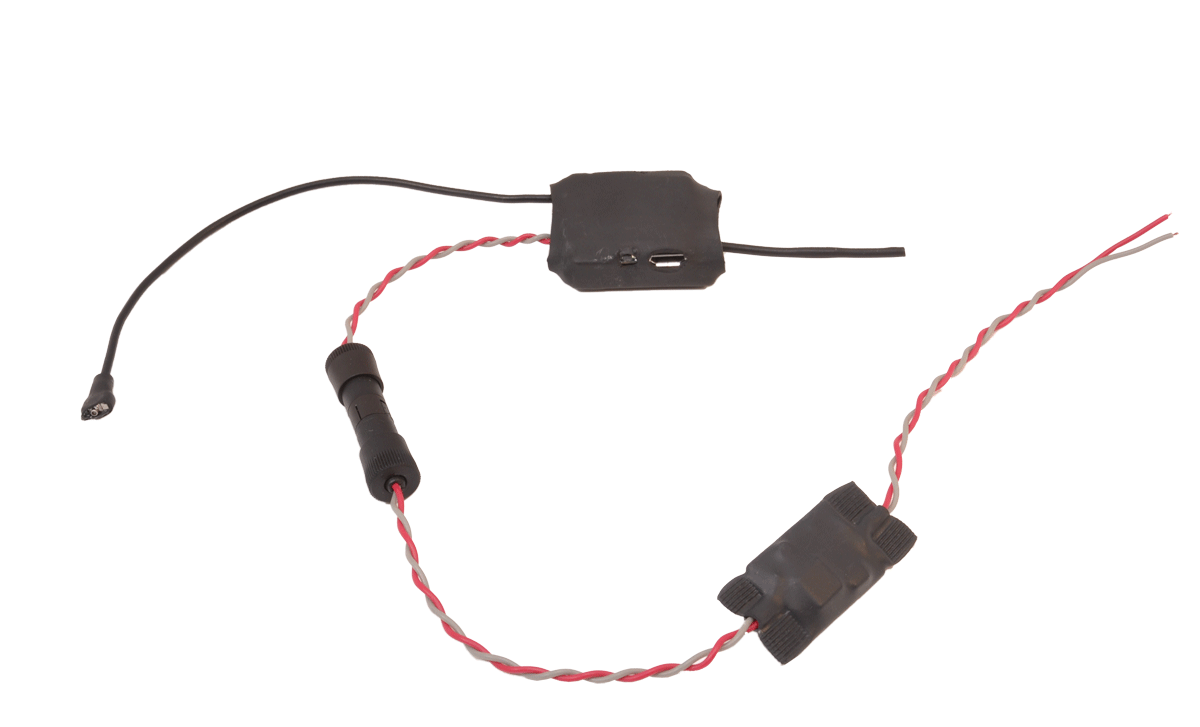

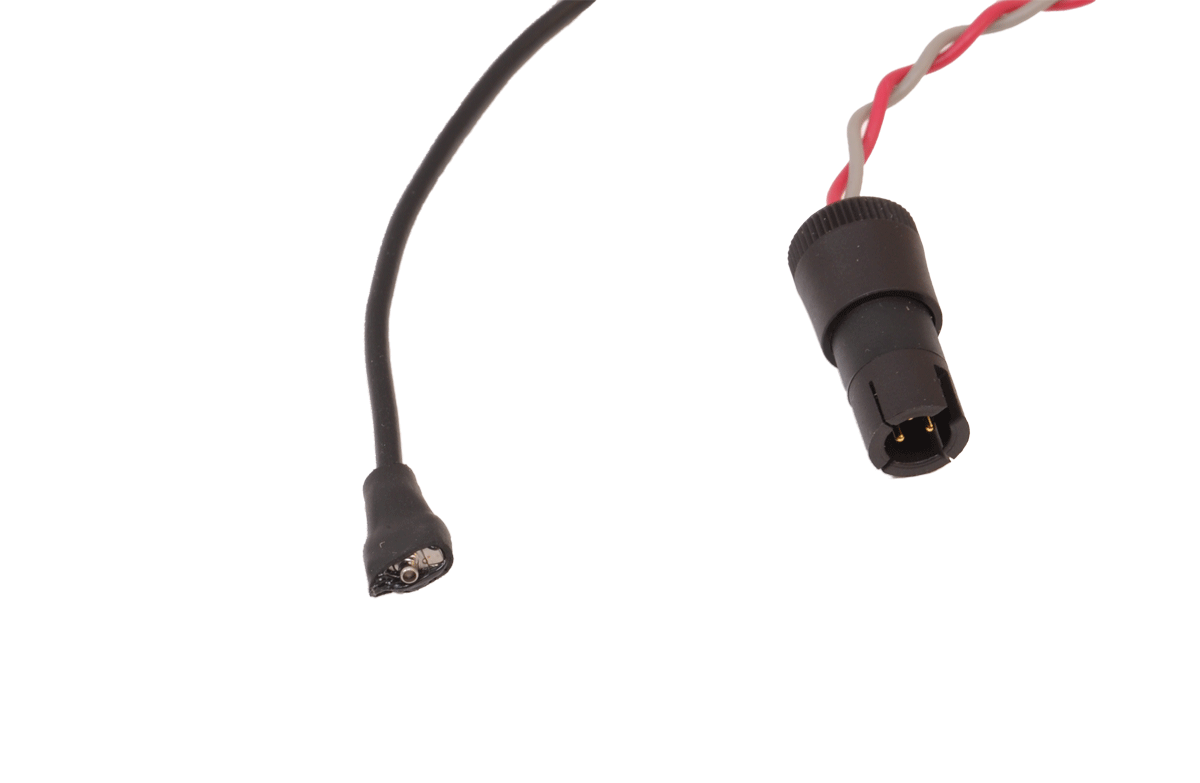

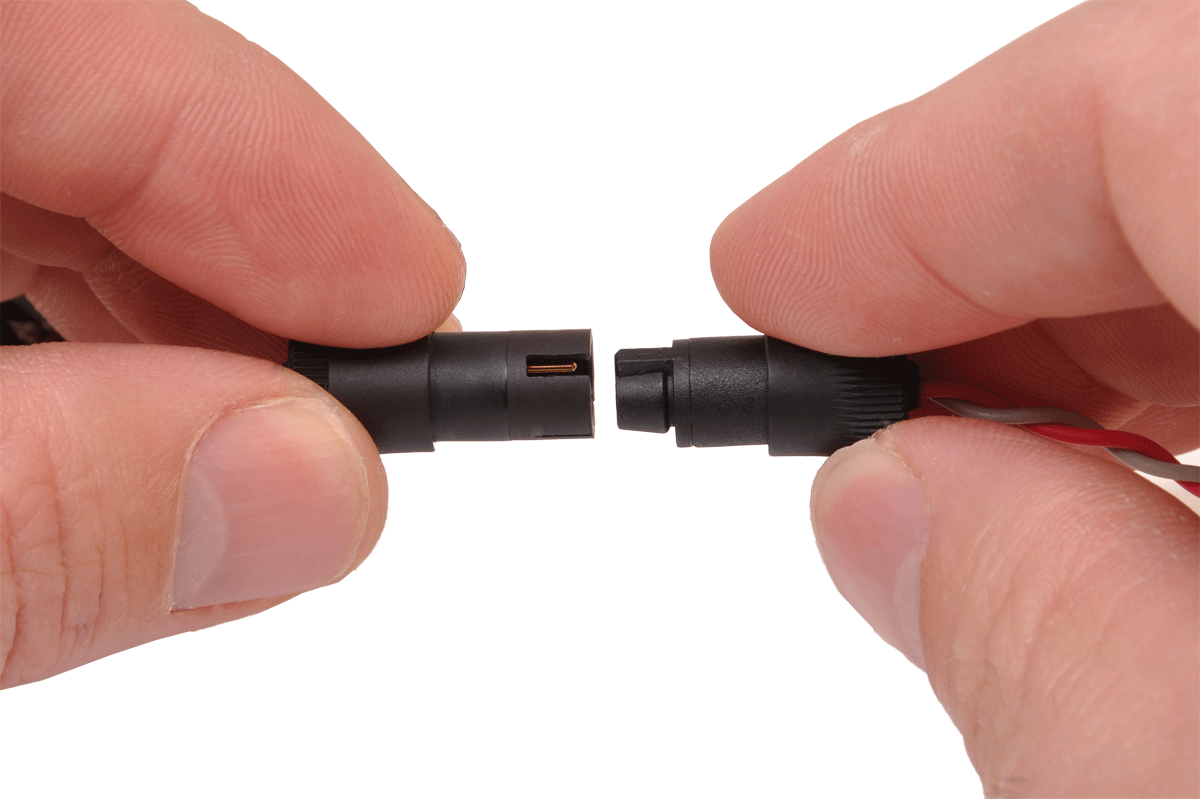

Comes with integrated cellular antenna, high gain Knowles microphone, voltage adaptor for use with 7 to 28VDC power sources, 12 VDC battery holder, wiring pig tail, operation manual and 2-year warranty.

FEATURES
• True quad band compatibility, works worldwide
• DSP reduces ambient noise and provides echo cancellation
• Full remote programming High Pass & Low Pass Noise Filters
• Great for body worn, thin profile of just 0.41” weighs less than 1 ounce
• Movement detector with auto-dial & transmission & SMS notification Voice activated
  on with auto-dial & transmission with 99 levels of sensitivity
• Low current draw of 30mA in sleep mode and 60mA in active mode (12VDC)

HARPOON BROCHURE AND SPEC SHEET
