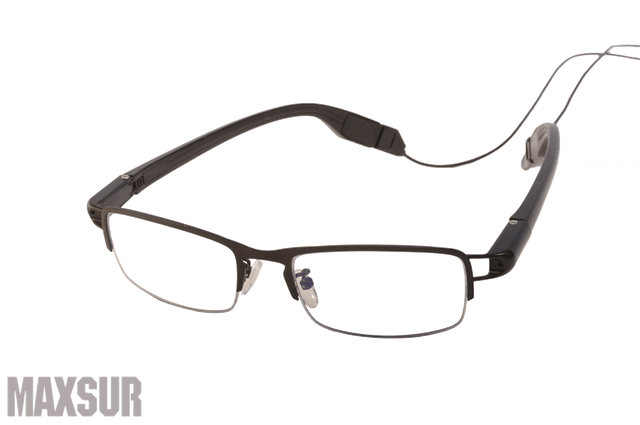

For the job that requires the utmost in stealth, these eyeglasses fit the bill. Even just a few feet away, the camera is near impossible to detect. The eyeglasses appearance lends well to a wide variety of settings from casual, to professional.
Naturally, with the camera being head mounted, you'll get the perfect perspective everytime. The field-of-view is a medium-wide-angle of 55 degrees. For convenience, these eyeglasses make a single cable connection and are fully compatible with the BARB and SPIKE micro DVRs.
Inline control of the built-in camera and microphone include adjustable frame rate, and AGC (automatic gain control).
|
Model |
WCVR67 |
|
Video system |
NTSC / PAL |
|
Pixel size |
1.75μm |
|
Number of effective pixels |
642 X 484 (NTSC & PAL) |
|
Image sensor |
1/13" CCIQ II Color Camera |
|
Resolution(TV Lines) |
480 TV Lines |
|
S/N Ratio |
34 dB |
|
Dynamic range |
66 dB |
|
Shutter Type |
Electronic Rolling Shutter (ERS) |
|
Sensitivity |
1.2V /Lux.sec |
|
Sensor scan mode |
progressive scan |
|
Minimum illumination |
5 Lux / F2.8 |
|
Frame Rate |
30 Field/sec(NTSC) , 25 Field/sec(PAL) |
|
Horizontal sync frequency |
NTSC -15.734kHz , PAL - 15.625kHz |
|
Vertical sync frequency |
NTSC - 60Hz , PAL - 50Hz |
|
Camera consumption |
0.45 |
|
Video output |
1Vp-p , 75ohm composite |
|
Built - lens |
1.33mm/F2.0 |
|
View angle |
H= 45°4'; V=34° 7'; D= 55° 3' |
|
Storage temperature |
-30 to 60 Degree C |
|
Working temperature |
-10 to 45 Degree C |
|
Power source |
DC 5 V |
|
Power current |
160 mA(max) |
|
Dimension(mm) |
5.9" x 6.3" x 1.37" (150 x 160 x 35mm) |
