MAXSUR  |  SKU: ATAN315PAN

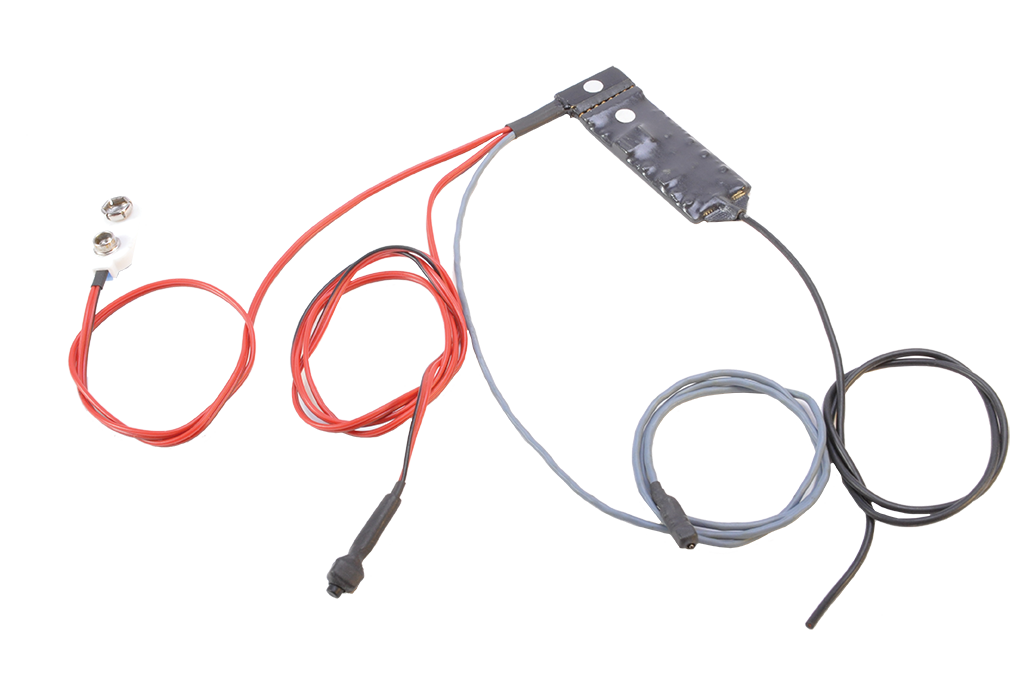

Spectre 300 Audio Transmitter w/Panic Button

Regular price $ 1,499.99


Description

Line of sight range over 1 mile
300mW of RF Output Power

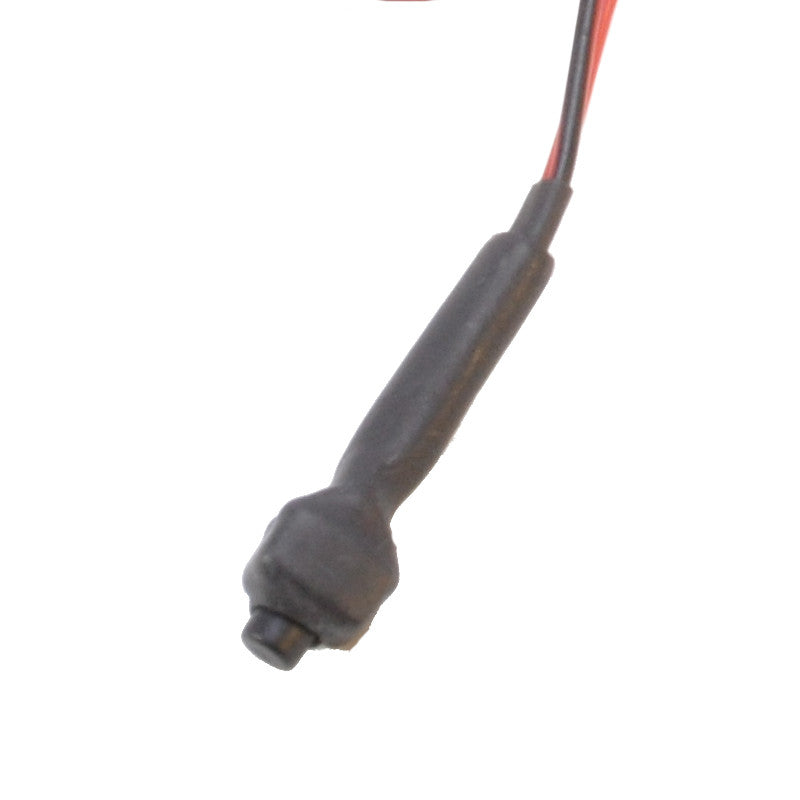

Integrated panic button
Easy to conceal with low profile of just 0.23”
Available on agency specific frequencies
NTIA NFM compliant transmission
Uses field replaceable 9VDC battery

With UC/CI safety in mind, this transmitter comes with an integrated panic button and when triggered, sends an audible pulse tone. Even with the added feature and 300mW of RF output power, this transmitter is easy to conceal with its slim profile of just 0.23 inches. Wireless range is over one mile los using rubber whip antennas and further range can be obtained with high gain antennas. As a standard feature with MAXSUR audio devices, this transmitter uses the proven Knowles brand microphone for high sensitivity and unparalleled audio quality. At 9VDC power consumption is 23mA which translates to 4.5 hours of run time with alkaline batteries. Transmission is NTIA NFM compliant and for large agency orders, frequency can be specified.

Audio transmitter comes with integrated Knowles microphone, panic button, 9VDC battery clip, waterproof hard case, operation manual and two-year warranty.

PRODUCT BROCHURE AND SPEC SHEET - DOWNLOAD

SPECIFICATIONS
FREQUENCY STANDARD 168.365
MODULATION NFM
AVAILABLE FREQUENCIES 150 TO 174MHz
RF OUTPUT POWER 300mW
PANIC FEATURE Inducted Pulse Tone
WHIP LENGTH 15.5" (394mm)
MIC. ELEMENT Knowles Brand
POWER REQUIREMENTS 9VDC
CURRENT CONSUMPTION  111mA @ 9VDC
AVG RUN TIME 4.5 Hours w/9V Alkaline
SIZE W X H X D 0.8" x 2.44" x 0.23" (21 x 62 x 6mm)
WEIGHT 0.8oz (23 grams)
