Conical Bullet Pinhole Camera w/EFFIO DSP
Conical Bullet Pinhole Camera w/EFFIO DSP

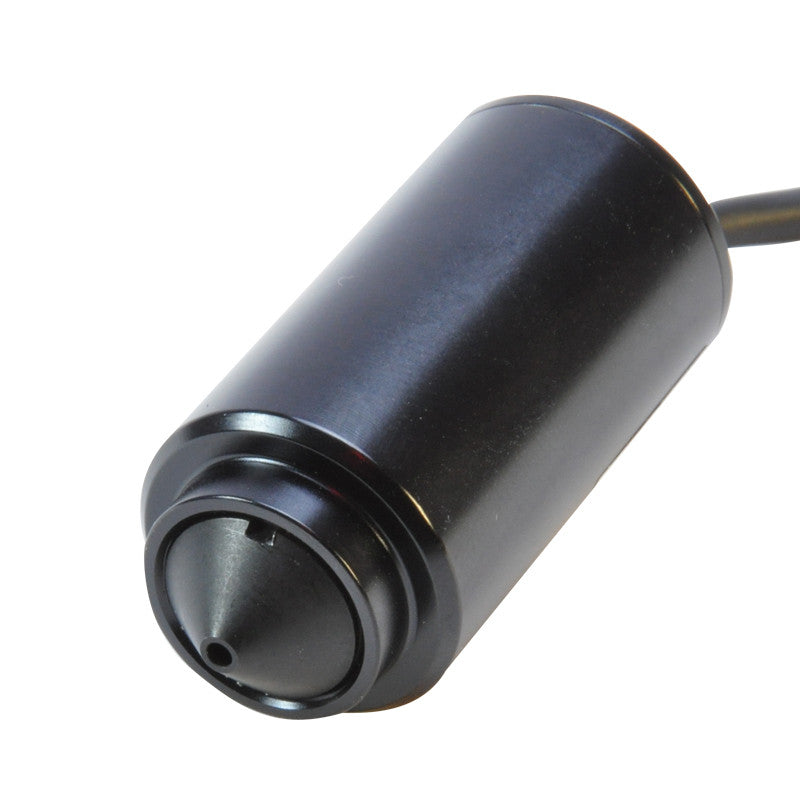

Built around the latest Sony DSP chipset called EFFIO, this conical bullet camera produces 700 lines of resolution, vibrant color images despite harsh lighting and dim lighting conditions. The 90° conical pinhole lens and small camera size of 0.75” in diameter makes concealment easy in trim panels, cardboard, drop tile, drywall, etc… The lux rating is 0.008 and coupled with the high S/N ratio of greater than 50dB, low light images are sharp & clear. Current draw is a low 80mA allow for extended battery powered operation and uses either 9 or 12VDC for complete power flexibility.
- Brilliant color video with Sony’s EFFIO Digital Signal Processor
- 700 Lines of Resolution
- Easy to conceal in trim panels, drop tile, cardboard, etc…

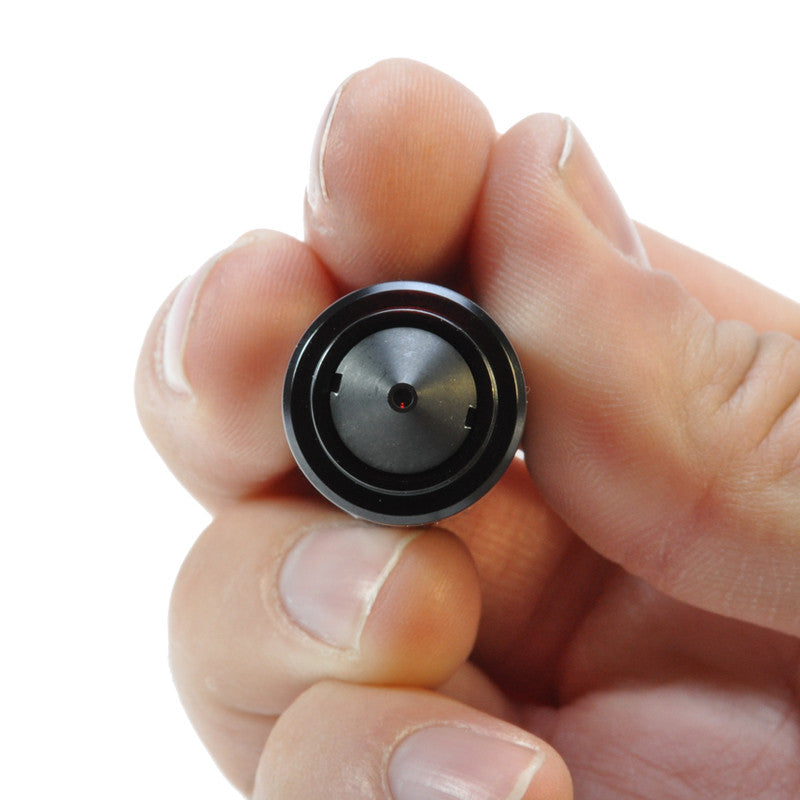

- Slim profile of 0.75” in diameter
- Low lux rating of 0.008 w/50dB S/N Ratio
- Low current draw of just 80mA
- Operates with 9 or 12VDC
- Wide, 90 degree field of view

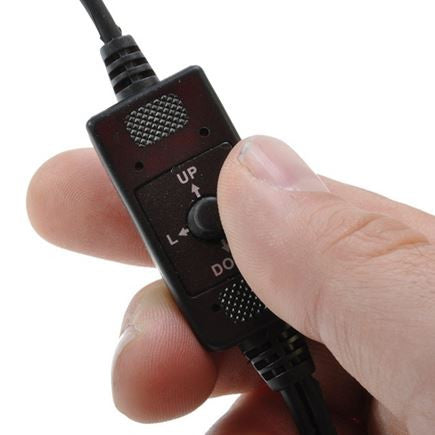

- Inline joystick for advance feature control
| Signal Format | NTSC (PAL Available) |
| Pixel Count | 1020(H) x 508(V) 520K |
| Effective Pixels | 976(H) x 494(V) 480K |
| Imager | 1/3" 960H Exview HAD CCD II SONY |
| Lens Type | Pinhole 3.7mm 90° |
| Processing | DSP (Digital Signal Processing) EFFIO SONY |
| Scanning System | 2:1 Interlace |
| Sync System | Internal |
| Scanning Frequency | 59.94Hz (VD) |
| Horizontal Resolution | 700TV Lines |
| S/N Ratio | More than 50dB (AGC Off) |
| Video Output | 1.0Vpp composite (75 OHM) |
| Min. Illumination | 0.008 lux |
| Shutter Speed | 1/60 - 1/100,000 |
| Power Consumption | 80mA @ 12VDC |
| Voltage Range | 9VDC to 13VDC |
| Operating Temp. | 14° to 122°F (-10° to 50°C) |

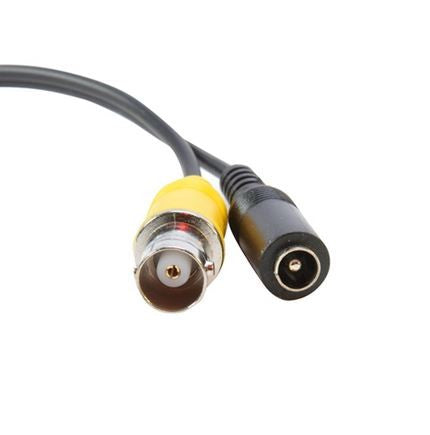

| Interface | BNC (Video), DC Coaxial 2.1 x 5.5mm (Power) |
| Size W x H x D | 0.75" x 0.75" x 1.8" (19 x 19 x 46mm) |
| Weight | 1.72 oz. (49 grams) |
