MAXSUR  |  SKU: MCML7-36-30MMB

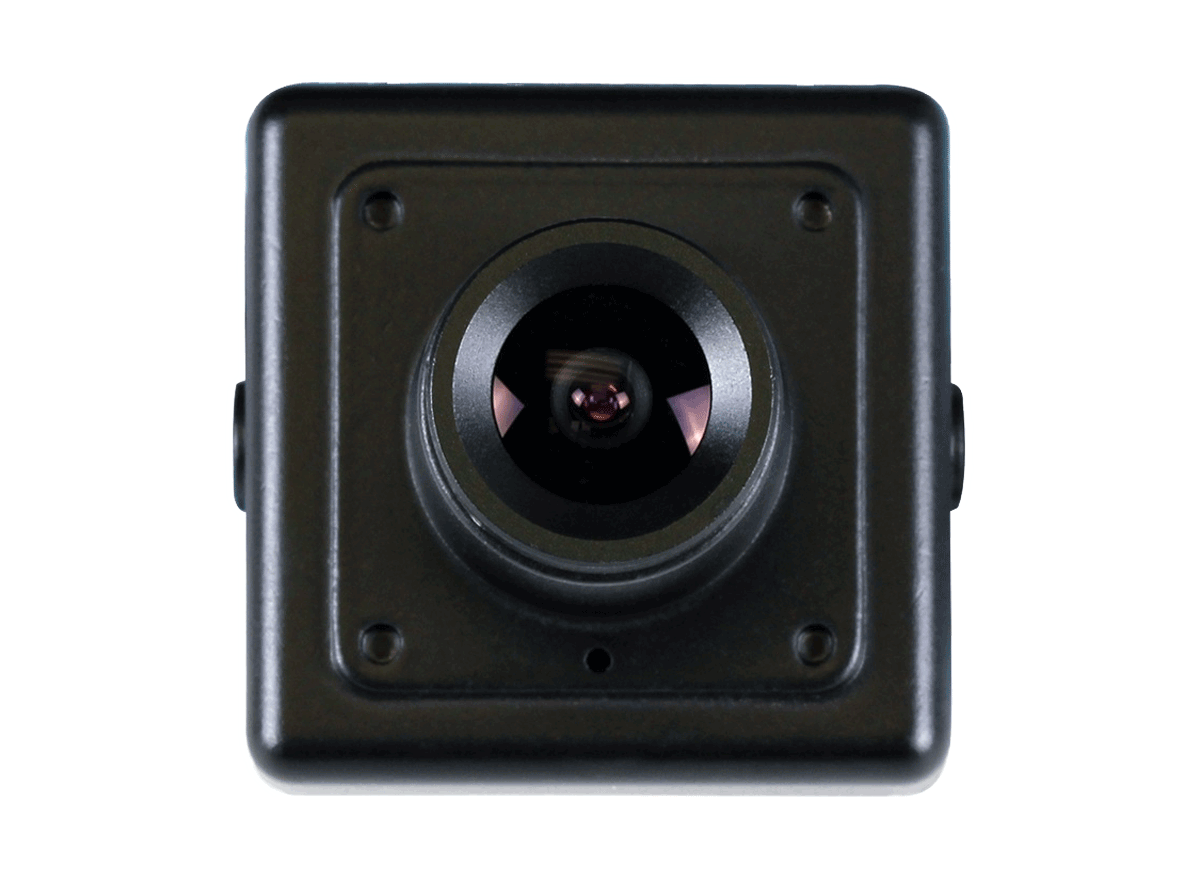

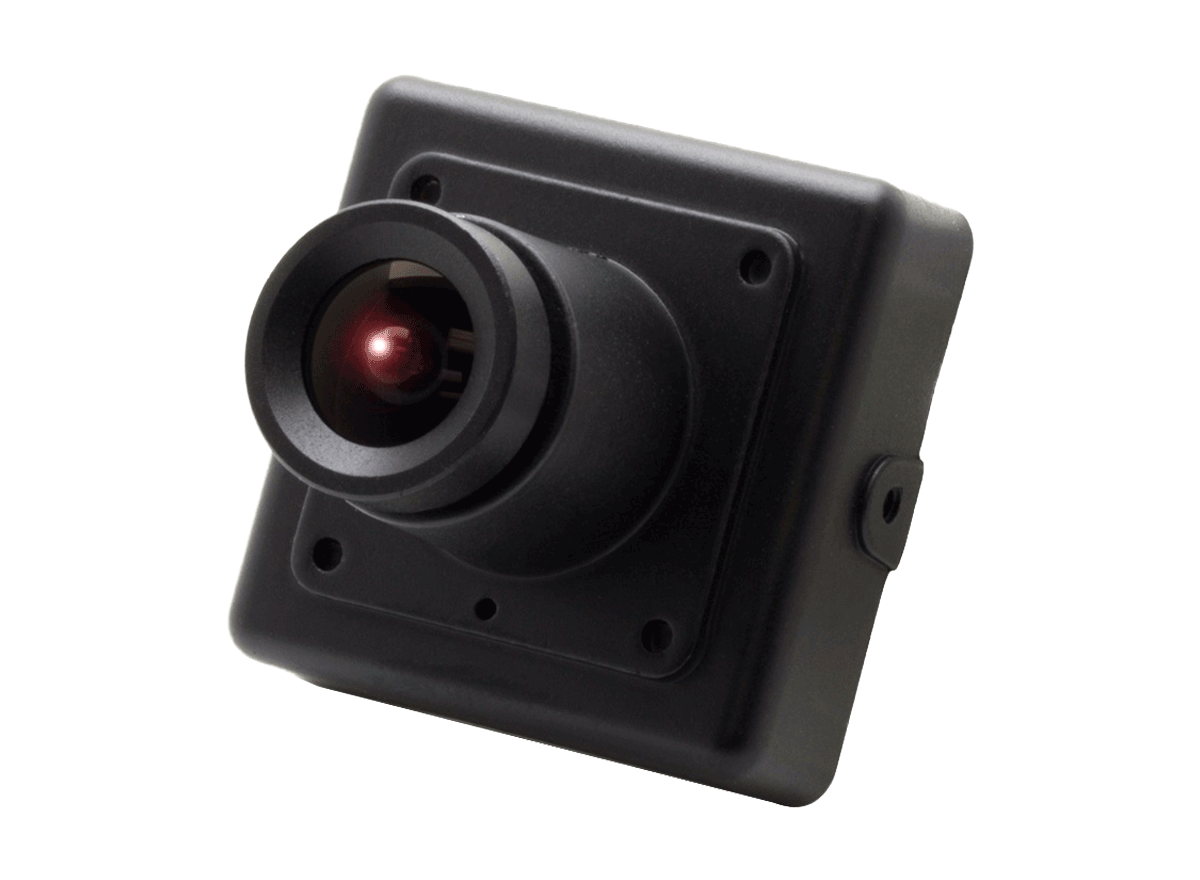

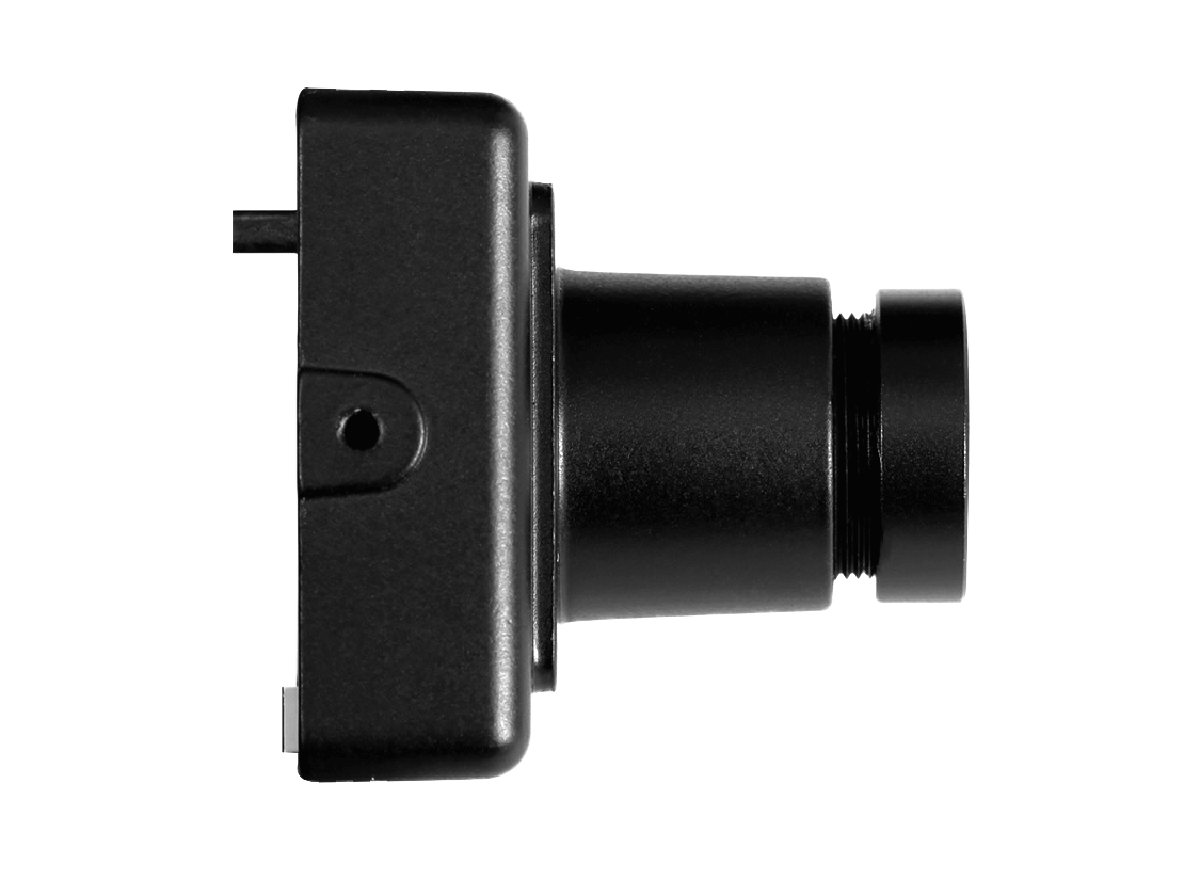

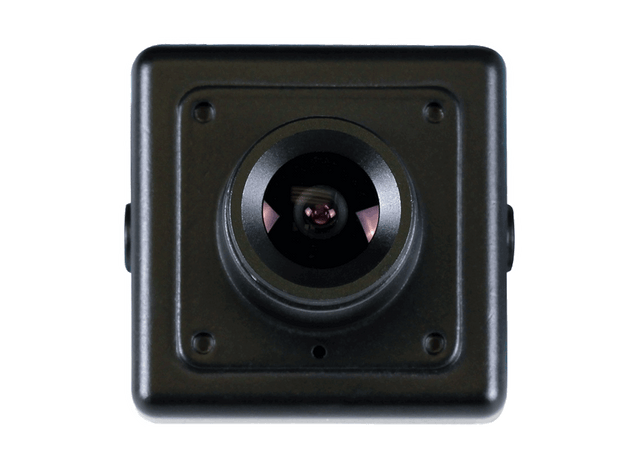

Covert Video Mini Cameras with SONY ExVIEW HAD Chipset 30 X 30

$ 142.00
Lens

Description

These covert video cameras are for applications to where the utmost in light handling performance is required, along with a small form factor.



SPECIFICATIONS
Signal System NTSC
Image Sensor 1/3” 960H SONY EXview HAD CCD II
Scanning System 2:1 Interlace
Horizontal Resolution 750TV Lines
Scanning Frequency (H) 15.734 KHz
Scanning Frequency (V) 59.94 Hz
Total Pixels (H x V) 1020 x 508
Effective Pixels (H x V) 976 x 494
Synchronization Internal
Lens 3.6, 4.3, 6.0, 8.0, 12, 16 mm
Lens Type Fixed Board Lens
S/N More than 50dB (AGC: Off)
Gamma r = 0.45
Min. Illumination 0.1 Lux
Shutter Speed 1/60 ~ 1/100,000sec
Day & Night Digital Day & Night (Optional)
Day & Night Function Auto, Color, B/W
Video Output Level 1 Vp-p Composite (75 Ω)
On-Screen Display (OSD) Built-in (Inner Key / Joystick)
BLC Off, BLC, HLC
DNR 2D DNR
ATR On / Off (Level Adjustable)
White Balance ATW, Push, User1, User2, Anti CR, Manual, Push-lock
Privacy Masking 4 Zones
Mirror On / Off
Motion Detection 4 Zones
Other Function Brightness, Contrast, Sharpness, HUE, Gain
Language Option English, Japanese, German, French, Russian, Portuguese, Spanish, Chinese
Operating Temperature 14 °F ~ 122 °F (-10 °C ~ 50 °C)
Storage Temperature -4 °F ~ 140 °F  (-20 °C ~ 60 °C)
Humidity Less than 80% RH
Power Supply DC 12V (±10%), Max. 70mA
Dimension 1.2 x 1.2 inch (30 x 30 mm)
Weight 0.2 lbs (81 g)
