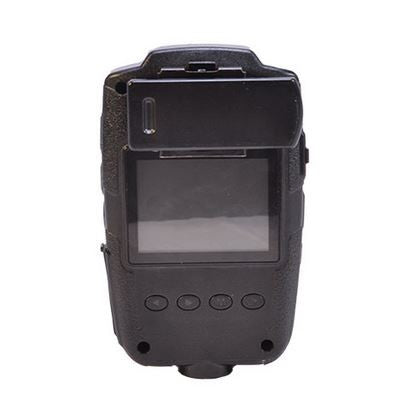

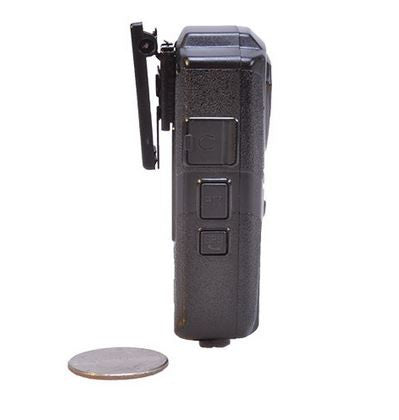

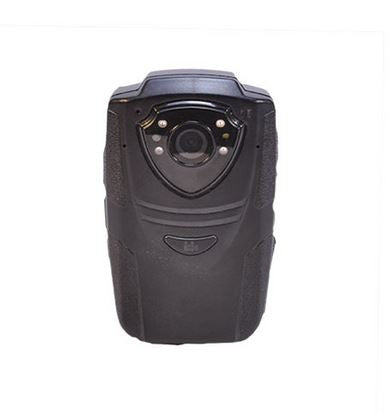

Shield II GPS Ready Rugged HD Body Camera

Shield II GPS Ready Rugged HD Body Camera

Request Access or Login

DIR Eligible Customer Pricing

Model & Link Product Description                                                               Qty DIR Customer Discount % off MSRP DIR Customer Price*
BWPC12G Shield II Rugged HD Body Worn Camera with Pre-Event Record and GPS 1-10 6.00% $339.99
BWPC12G Shield II Rugged HD Body Worn Camera with Pre-Event Record and GPS 11-20 8.00% $332.76
BWPC12G Shield II Rugged HD Body Worn Camera with Pre-Event Record and GPS 21-50 10.00% $325.52
BWPC12G Shield II Rugged HD Body Worn Camera with Pre-Event Record and GPS 51-100 12.00% $318.29
BWPC12G Shield II Rugged HD Body Worn Camera with Pre-Event Record and GPS 100-200 14.00% $311.06
BWPC12G Shield II Rugged HD Body Worn Camera with Pre-Event Record and GPS 200+ 16.00% $303.82

This body worn camera packs the features needed to record events from your perspective, all in HD and with crystal clear audio. Ready for duty, with a 24 hour standby time, 9 hours of continuous recording in D1 resolution and controls are in a no-nonsense, easy to use format. Just in case you forgot to trigger the recording, this camera backs you up with a clever pre-event recording. This daily wearer weighs in at just 6.4 ounces and clips onto shoulder lapels, shirt buttons and our favorite spot, on the vest. After your shift is done, download can be to single computer or to a master server for multiple units and archiving of thousands of video hours.

Body worn camera comes with USB offload, single unit software, mounting clip, operation guide and a one-year warranty. For multi-unit management software, please contact the MAXSUR team at 1-855-778-6565.

SPECIFICATIONS
Chipset

Ambarella chipset

Image sensor

4M pixels, CMOS Sensor

lens

Diagonal angle: 170°,Horizontal angle: 125°

Screen

HD Highlight 2.0 LTPS TFT LCD 640X480







Video



Full HD 1080P(1920*1080/30fps),HD 1080P(1440*1080/30fps),1280

*720(30-60fps), 720*480/(30-60fps). H.264 encode,  AVI format, synchronization of audio and video; seamless record (including the function of segment record, cycle record and capture record)






8M, 12M. 16M,22M,4X digital zoom, JPG

Stamps overlaying

Police No.+device No.+GPS data+date+time

Infrared mode

auto IR cut, shooting distance 10m

Pre-record/Extended record



Yes

Motion detective

Yes



Voice recording

High-sensitivity mic, support separate recording,  WAV, sampling frequency code rate adjustable



GPS

Built-in GPS module, the data of longitude and latitude and realtime overlay to video files, GPS track played on google map with special player

Playback

Video and textfiles playback in native machine, pc, tv and camera

Log recording

Time recording of operation, read on computer

Wireless remote

433MHZ full function remoter

Light

High bright led for auxiliary lighting

Interphone

All kinds of interphones, monophone

AV IN

No

AV OUT

Yes

HDMI

No







USB and encryption

USB2.0 interface, data transfer and charging function, password needed when usb connecting. Two levels of passwords. User password: can only view the data file, can't delete, modify. Administrator password: to view, exporting data, edit and delete data

Storage

32 GB TF card, can support  64 GB (The TF card cannot take out from the unit)









System settings



Set various parameters. Such as, the time correction, screen off time, save electricity Pattern, resolution, bit rate, frame rate, video segmentation time and so on



Battery

2800 mA polymer lithium battery, 220 v / 1 A direct charger, charging time is 4 h

Continuous video recording time

8H(D1) (LCD/GPS/IR off)

Standby time

About 24H



Professional back clip

Can be worn on the shoulder or the waist, lens can rotate 180 degrees and fixed

Operating system

Windows XP/2003/vista/win7/win8

Working temperature

-20° to 50º

Storage temperature

-30° to 70°

Working humidity

10%-80%

Dimensions

L*W*H 90×60×30mm

Weight

140g

Standard accessories

User manual,Car charger,DC charger,USB cable,32GB TF Card,back clip



Optional accessories



Remote control(USD6),Dock Station(USD6),external 3G/4G

transmitter(USD520),Wifi(USD20)
