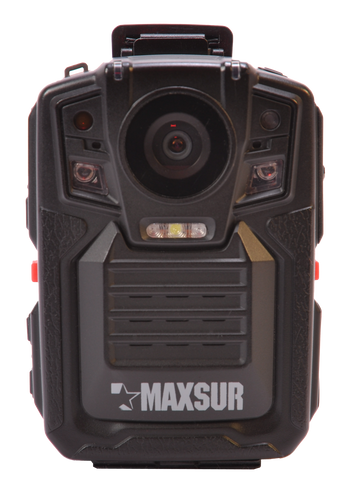

The team at MAXSUR is proud to introduce, the Shield V. This affordable and technologically advanced body camera contains a slew of well-groomed features in a small, lightweight package that is the length and height of a credit card while bearing the width of a half an inch. Suited to handle a wide variety of temperate ranges and weather conditions, the Shield V boasts an IP67 waterproof rating. Internally, the Ambarella A7 chipset captures important details in harsh lighting conditions such as dark rooms and night time operations.

After your officer presses the one touch recording button, 30 second pre-event recording ensures that the video shows what happened prior to the scenario occurring. In addition to the pre-event recording feature, the Shield V will equally record the post events. Making sure that the 30 seconds after the climax of the plot are not lost.

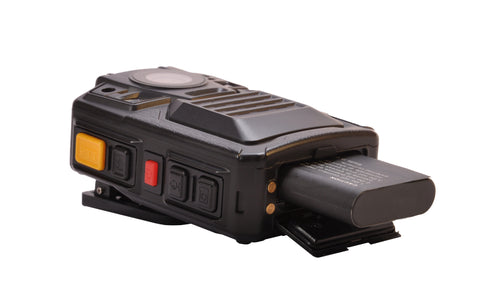

One of the biggest problems with body cameras on the market today is that officers may forget to charge the internal battery or they may run out of battery life during their shift. Introducing the Shield V with removable batteries.

Along with standard features like 140° field of view, 1080p HD pictures and video, and automatic or manual low light Infrared, the Shield V boasts a 12 hour stand by time with just one battery. With each Shield V you will receive two batteries making the Shield V capable of 24 hours’ worth of stand-by time, without making the camera the size of a brick.

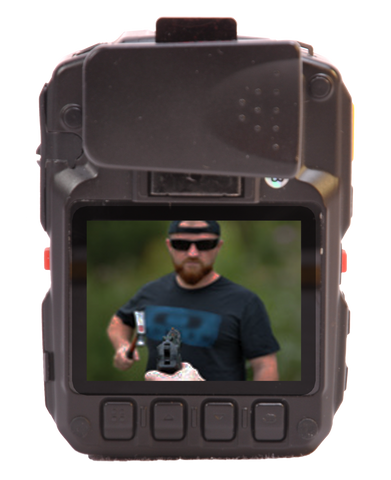

With the two inch LCD display on the back of the Shield V officers can review the video in the field or while making the report. Administrative lock-out ensures that the chain of discovery is maintained by making it impossible to delete or alter the video from the body camera. And a 32GB tamper proof memory ensures that the officer will have plenty of storage space to record their shift.

The Shield V has a few hidden features as well. Officers can use the laser designator to point out problematic citizens in a crowd. An LED flashlight on the front can be used to look under seats or find lost patrol car keys. And an audio only feature to record notes at a crime scene.

As always, MAXSUR stands behind our products. So much so that with all of our body cameras we offer a 90 day money back guarantee and a one year warranty. If anything happens outside of that first year, MAXSUR will work with your agency to make sure that your body camera project stays operating smoothly.

Features

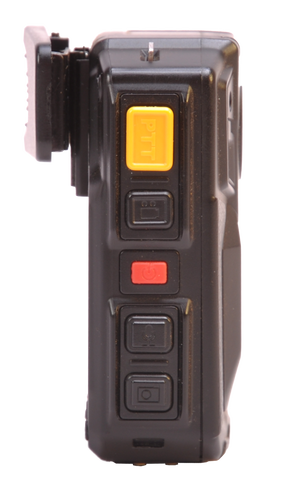

• One-button recording
• Visual, audible and vibration confirmation
• 30 Second pre-event recording
• 12 hour standby and swappable batteries
• Tamperproof 32GB memory
• 30’ Infrared and visible light
• Built-in laser pointer
• Optional PTT cable



Product Brochure pdf Download

Specifications

Recording
Sensor	5MP CMOS
Chipset	Ambarella A7
Video Resolution	1920x1080 @30fps/ 1440x1080 @30fps/1280x720p @30fps/ 848x480p @60fps/848x480p @30fps
Video Format	.MOV files
Fast Forward	2X, 4X, 8X
Rewind	2X, 4X, 8X
Audio	Stereo
Audio Format	AAC2 / .WAV files
Watermark	User ID, time and data stamp embedded into video
Camera	16 Megapixel camera with user selectable 3 to 5 photo burst
Recording Time	Continuous 350 minutes at 848 x 480 @ 30fps
Memory	32GB
Recording LED	Red, faces up
Storage Level	Visual indicator
One Button Record	Yes
Activation Prompt	Audible, visual and tactile vibration - user selectable
Infrared Light	2, LED with automatic option
Auxiliary Light	1 Visible, 1 red visible laser designator
Battery
Type	Removable, 1,950mAh, includes 2
Charge Time	130 Minutes
Standby Time	12 Hours
Review
LCD	2 Inch TFT-LCD high resolution color display
Audio Playback	Yes, built-in speakers
Video Output	HDMI 1.3 Port
Video Transfer	USB 2.0
Camera
Recording Angle	140 degrees
Night Vision	Up to 30 feet with visible face detection
Clip	Metal mechanism sheathed with ABS - compatible with Heads Up Mic Clip
PTT	Optional cord available, compatible with multiple brands
Others
ID	Unique 5 digit device ID and 6 digit user ID
Encryption	Files are password protected, viewing and deleting
Pre-Record	5 to 30 seconds
Post-Record	10, 20, 30 seconds
Burst	1, 3 , 5 shot photo burst
Dimensions	3.34" x 2.44" x 1.22"  - 85 x 62 x 31mm
Weight	5.74 oz - 163 g
Storage Temperature	-40 to 140°F
Working Temperature	-3 to 131°F
Accessories
Standard	USB cable, charger, manual, clip, 2 removable batteries, 1 charging dock
Optional	Docking station and PTT cable
