Built around the latest Sony DSP chipset called EFFIO, this camera produces 700 lines of resolution, vibrant color images despite harsh lighting and dim lighting conditions. The 90° flat pinhole lens and small camera size of 1” makes concealment easy in apparel, cardboard, drapery, etc… The lux rating is 0.008 and coupled with the high S/N ratio of greater than 50dB, low light images are sharp & clear. Current draw is a low 80mA allow for extended battery powered operation and uses either 9 or 12VDC for complete power flexibility.

  • Brilliant color video with Sony’s EFFIO Digital Signal Processor
  • 700 Lines of Resolution
  • Easy to conceal in trim panels, drop tile, cardboard, etc.
  • Small 1” width & height
  • Low lux rating of 0.008 w/50dB S/N Ratio
  • Low current draw of just 80mA
  • Operates with 9 or 12VDC
  • Wide, 90 degree field of view

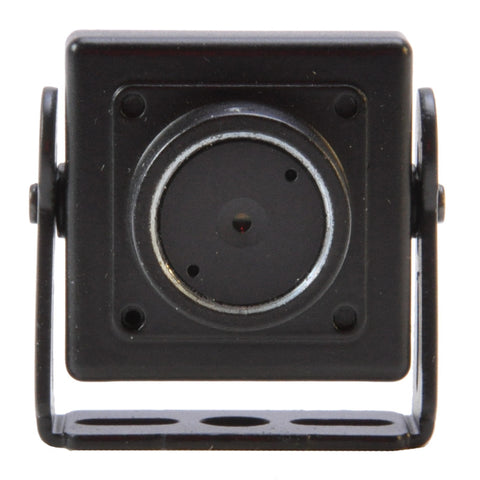

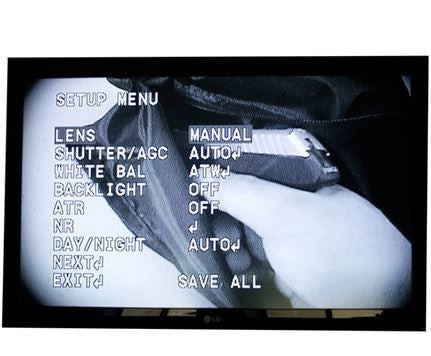

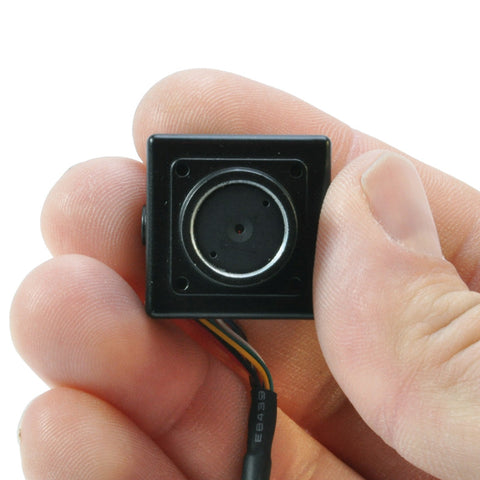

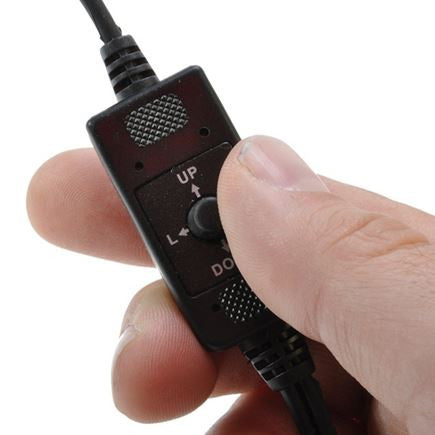

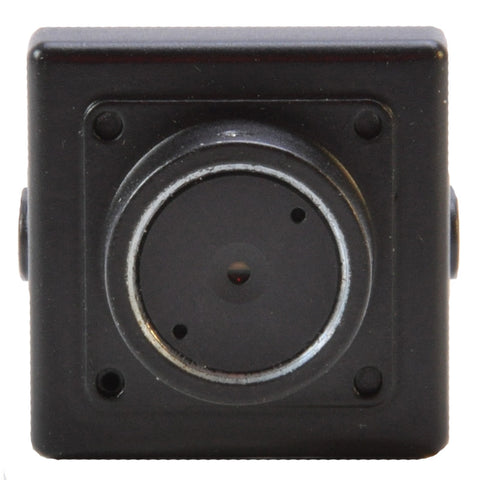

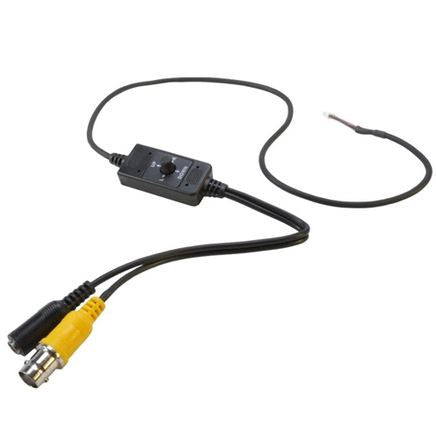

  • Inline joystick for advance feature control
Specifications - Download Brochure and Specifications
Signal Format NTSC (PAL Available)
Pixel Count 1020(H) x 508(V) 520K
Effective Pixels 976(H) x 494(V) 480K
Imager 1/3" 960H Exview HAD CCD II SONY
Lens Type Pinhole 3.7mm 90°
Processing DSP (Digital Signal Processing) EFFIO SONY
Scanning System 2:1 Interlace
Sync System Internal
Scanning Frequency 59.94Hz (VD)
Horizontal Resolution 700TV Lines
S/N Ratio More than 50dB (AGC Off)
Video Output 1.0Vpp composite (75 OHM)
Min. Illumination 0.008 lux
Shutter Speed 1/60 - 1/100,000
Power Consumption 80mA @ 12VDC
Voltage Range 9VDC to 13VDC
Operating Temp.  14° to 122°F (-10° to 50°C)

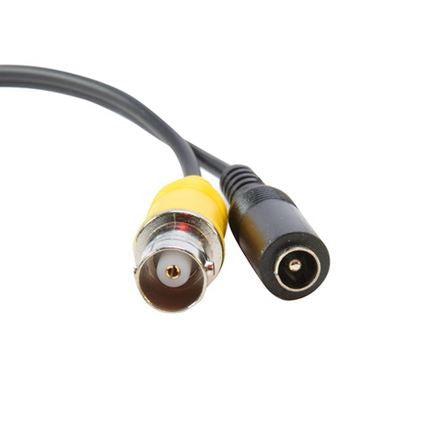

Interface  BNC (Video), DC Coaxial 2.1 x 5.5mm (Power)
Size W x H x D 1" x 1" x 0.72" (25 x 25 x 19mm)
Weight 2.04 oz. (58 grams)
