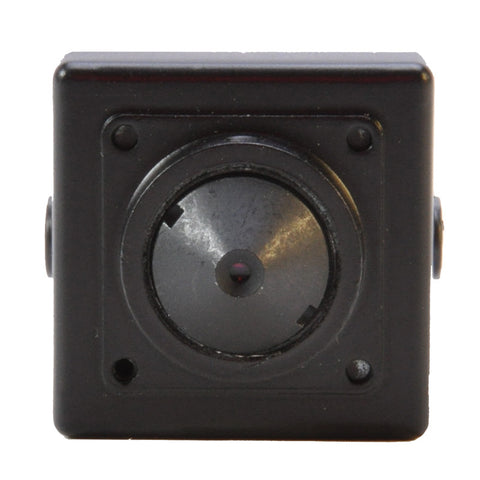

This pinhole camera features a conical style pinhole lens, one the greatest innovations ever made for covert surveillance. With the conical pinhole, it allows stealthy installation into thicker materials such as dry way, vehicle trim, cardboard and more…meanwhile leaving a hole so small, the person that installed will have a tough time seeing it.

Adding to the pinhole lens is an enhanced SONY EFFIO chipset that makes use of all light in the visible spectrum and deep into the infrared spectrum. This increased sensitivity allow the camera to reach low light ratings of 0.008 lux. Thanks to onboard DSP, digital signal processing…signal to noise ratio is a very high 50dB, meaning that even in low light, video is sharp and clear.

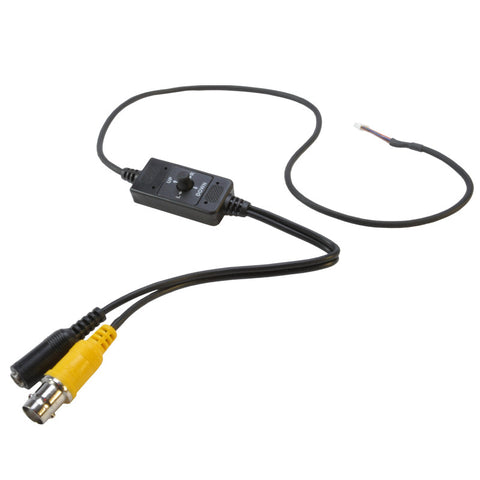

Power requirements are flexible with a 9 to 12VDC range, and current draw is very low at 80mA. Conical pinhole camera size is 1 inch by 1 inch, and .75 inches in overall depth. The camera includes an inline joystick control for menu navigation and almost every function can be adjusted to precisely match your covert surveillance needs.

Features
  • Brilliant color video with Sony’s EFFIO Digital Signal Processor
  • 700 Lines of Resolution
  • Easy to conceal in trim panels, drop tile, cardboard, etc.

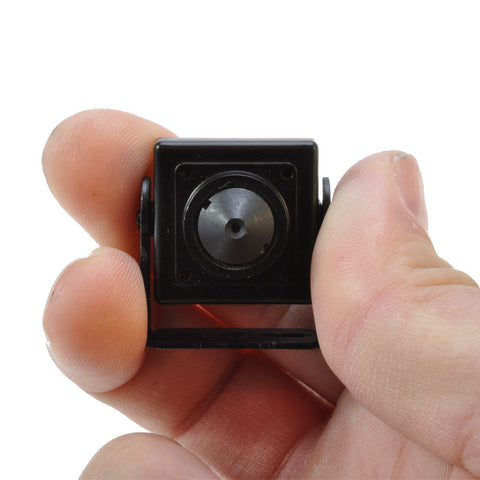

  • Small 1” width & height
  • Low lux rating of 0.008 w/50dB S/N Ratio
  • Low current draw of just 80mA
  • Operates with 9 or 12VDC
  • Wide, 90 degree field of view

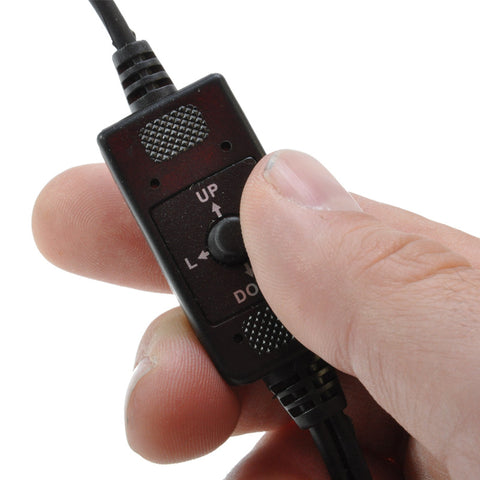

  • Inline joystick for advance feature control
Specifications - Download Brochure and Specifications
Signal Format NTSC (PAL Available)
Pixel Count 1020(H) x 508(V) 520K
Effective Pixels 976(H) x 494(V) 480K
Imager 1/3" 960H Exview HAD CCD II SONY
Lens Type Conical Pinhole 90° field of view
Processing DSP (Digital Signal Processing) EFFIO SONY
Scanning System 2:1 Interlace
Sync System Internal
Scanning Frequency 59.94Hz (VD)
Horizontal Resolution 700TV Lines
S/N Ratio More than 50dB (AGC Off)
Video Output 1.0Vpp composite (75 OHM)
Min. Illumination 0.008 lux
Shutter Speed 1/60 - 1/100,000
Power Consumption 80mA @ 12VDC
Voltage Range 9VDC to 13VDC
Operating Temp.  14° to 122°F (-10° to 50°C)

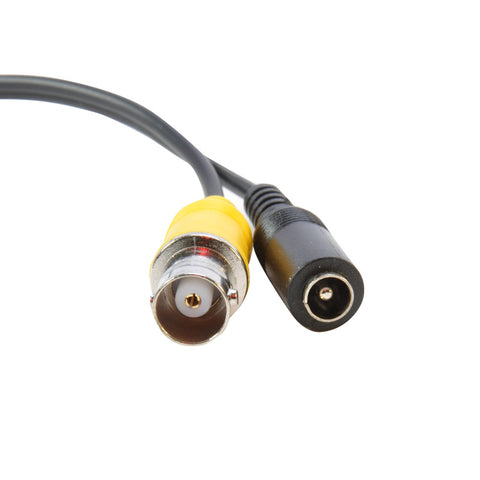

Interface  BNC (Video), DC Coaxial 2.1 x 5.5mm (Power)
Size W x H x D 1.06" x 0.98" x 0.74" (27 x 25 x 19mm)
Weight 2.0 oz. (56 grams)
